30 Cores Al - Foil Screen PVC Sheathed Industrial Control Cables , Copper Wire Multicore Screened Cable
30 Cores Al - Foil Screen PVC Sheathed Industrial Control Cables , Copper Wire Multicore Screened Cable
30 Cores Al - Foil Screen PVC Sheathed Industrial Control Cables , Copper Wire Multicore Screened Cable
30 Cores Al - Foil Screen PVC Sheathed Industrial Control Cables , Copper Wire Multicore Screened Cable
30 Cores Al - Foil Screen PVC Sheathed Industrial Control Cables , Copper Wire Multicore Screened Cable
30 Cores Al - Foil Screen PVC Sheathed Industrial Control Cables , Copper Wire Multicore Screened Cable
30 Cores Al - Foil Screen PVC Sheathed Industrial Control Cables , Copper Wire Multicore Screened Cable
30 Cores Al - Foil Screen PVC Sheathed Industrial Control Cables , Copper Wire Multicore Screened Cable
Specifications
Brand Name :
JHY CABLE
Model Number :
KVVP
Certification :
ISO9001/ISO14001/OHSAS18001/CCC/CE/RoH
Place of Origin :
SHENZHEN CHINA
MOQ :
500M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000M/Day
Delivery Time :
10~15 Days
Packaging Details :
100M/Roll or customer's request
Application :
Construction,Industrial,Underground,Power Station,BUILDING
Type :
Control Cable
Conductor material :
Copper
Insulation material :
PVC
Jacket material :
PVC
Color :
blue,Black,yellow,red,Customized
Description

30 Cores Al-foil Screen PVC Sheathed Control Cable Copper Wire Braid Screened Cable

1. Construction

Conductor:Copper/Tinned copper
Insulation:PVC/PE/XLPE
Shield: Copper Wire Braid, Al-foil Individual and Overall Screen/ unshielded
Armour: Steel Wire Armored/galvanized steel wire armoured/ unarmoured
Sheath: PVC / ZR-PVC / PE / LSZH
Standard:IEC,ASTM,BS etc.

Voltage:450/750V
Packaging:Iron or Wooden Drum.

2. Applications

2.1 Rated voltage U0/U should be 450/750~600/1000V

U0~valid of the voltage between main insulated conductor and earthing (metal shield ,metal sheath of environment dielectric).

U~vaild of voltage between any two phase conductor in multicourse cable or single core cable system.

when AC.System is applied ,the rated voltage of cables should be at least equal to the nominal voltage of the system .When DC.System is applied ;the nominal voltage of this system should not be more than the rated voltage of the system by 1.5 times.

2.2 The permitting long-term operating temperature of cable conductor should be PVC insulation :70℃

Chemical Sioplascable:90℃

Irradiation XLPE:105~135℃

3. Data sheet

No. of core Nominal cross-sectional area No.& dia.
of wires		 Thickness
of insulation		 Thickness
of sheath		 Overall diameter (Approx.) Maximum conductor resistance
(at20C)		 Minimum insulation resistance
(at70C)		 Cable Standard Length
weight (Approx.)
mm2 No./mm mm mm mm Ohm/km Ohm/km kg/km m
30 0.5 7/0.30 0.8 1.8 22 36 0.0162 540 500/D
0.75 7/0.37 0.8 1.8 23 24.5 0.0142 665 500/D
1 7/0.40 0.8 1.8 24 18.1 0.0135 725 500/D
1.5 7/0.50 0.8 1.8 26 12.1 0.0115 940 500/D
2.5 7/0.67 0.8 1.8 30 7.41 0.0093 1395 500/D
4 7/0.85 1 2 37 4.61 0.0092 2180 500/D
6 7/1.04 1 2.2 41.5 3.08 0.0078 2990 500/D



4. Construction

30 Cores Al - Foil Screen PVC Sheathed Industrial Control Cables , Copper Wire Multicore Screened Cable 1. Conductor material: Copper Core
2. Jacket Material PVC
3.Insulation Material PVC
4.Jacket Colour Black
5.Insulation Colour Red, black, blue, yellow, white, green/yellow, grey, brown, or customer request

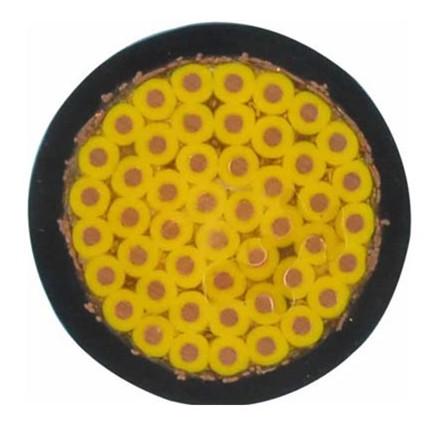

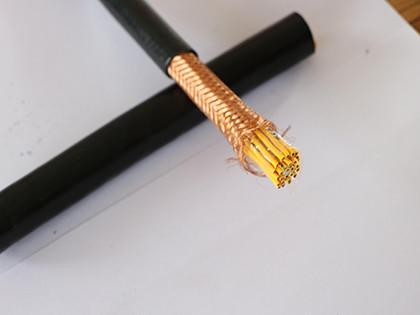

5. Product Image
30 Cores Al - Foil Screen PVC Sheathed Industrial Control Cables , Copper Wire Multicore Screened Cable

Company Information:

OUR SERVICE 30 Cores Al - Foil Screen PVC Sheathed Industrial Control Cables , Copper Wire Multicore Screened Cable

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.
Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team


Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
