5G X 0.5mm2 Oil Acid Resistant Cable , H05VVF Overhead Electric PVC Insulated Wire Cable
5G X 0.5mm2 Oil Acid Resistant Cable , H05VVF Overhead Electric PVC Insulated Wire Cable
5G X 0.5mm2 Oil Acid Resistant Cable , H05VVF Overhead Electric PVC Insulated Wire Cable
5G X 0.5mm2 Oil Acid Resistant Cable , H05VVF Overhead Electric PVC Insulated Wire Cable
5G X 0.5mm2 Oil Acid Resistant Cable , H05VVF Overhead Electric PVC Insulated Wire Cable
5G X 0.5mm2 Oil Acid Resistant Cable , H05VVF Overhead Electric PVC Insulated Wire Cable
5G X 0.5mm2 Oil Acid Resistant Cable , H05VVF Overhead Electric PVC Insulated Wire Cable
5G X 0.5mm2 Oil Acid Resistant Cable , H05VVF Overhead Electric PVC Insulated Wire Cable
Specifications
Brand Name :
JHY CABLE
Model Number :
H05VV-F
Certification :
ROHS/CCC/VDE/CE/On request
Place of Origin :
SHENZHEN CHINA
MOQ :
500M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000KM/Day
Delivery Time :
7 Days
Packaging Details :
100M/Roll
Conductor Material :
Copper
Rated Voltage :
300/500V,450/750V
Conductor Type :
stranded
Core :
3 core
Insulation Material :
PVC
Size :
0.5mm To 95mm
Packing :
100m/roll
Color :
Brown, blue, red, black, yellow/green, or others
Description

5G x 0.5mm2 Oil resistant Acid resistant cable H05VVF Overhead insulated electric cable

Usage:

These types of cables are designed for medium mechanical stress (washing machines etc.), as connecting cables in houselholds as well as office appliances. The cables can be used for ovens, fans and heaters but direct contact with hot surfaces must be avoided. The cables are also suitable for moist areas. .

H05VV-F Flexible Cable Note:
CE = the product is conformed with the EC Low-Voltage Directive 73/23/EEC.
Conforms to RoHS.
Other jacket colors available on request.

H05VV-F Flexible Cable structure:

  • Stranded bare copper conductor according to DIN VDE 0295 and IEC 60228 cl. 5 and HD 383
  • Special PVC core insulation, cores stranded in layers with optimal lay-lenght
  • Color coded cores according to DIN VDE 0293, from 7 cores and more black with white numbering
  • Green-yellow earth core (3 cores and more)
  • Black or white PVC outer jacket according to DIN VDE 0207 part 5
  • PVC self-extinguishing and flame retardant, according to DIN VDE 0482 part 265-2-1/ EN 50265-2-1/ IEC 60332-1

H05VV-F Flexible Cable Technical data:

  • PVC control cables according to DIN VDE 0281 part 5 and IEC 60227-5, HD 21.5 S3
  • Temperature range:
    flexing from -5 °C to +70 °C
    fixed from -40 °C to +70 °C
  • Nominal voltage Uo/U 300/500 V
  • Max. permissible operating voltage:
    in three-phase and single-phase
    a.c. system Uo/U 330/550 V
    in direct current system Uo/U 495/825 V
  • Test voltage a.c. 2000 V
  • Minimum bending radius approx. 7,5x cable diameter
  • Radiation resistance up to 80x106 cJ/kg (up to 80 Mrad)

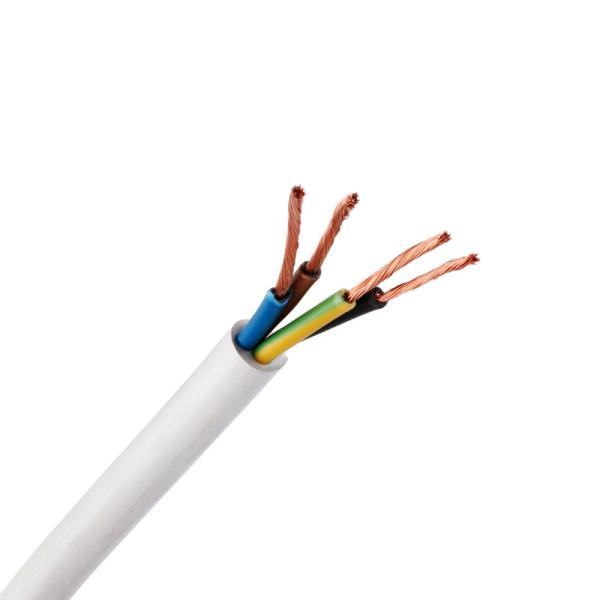

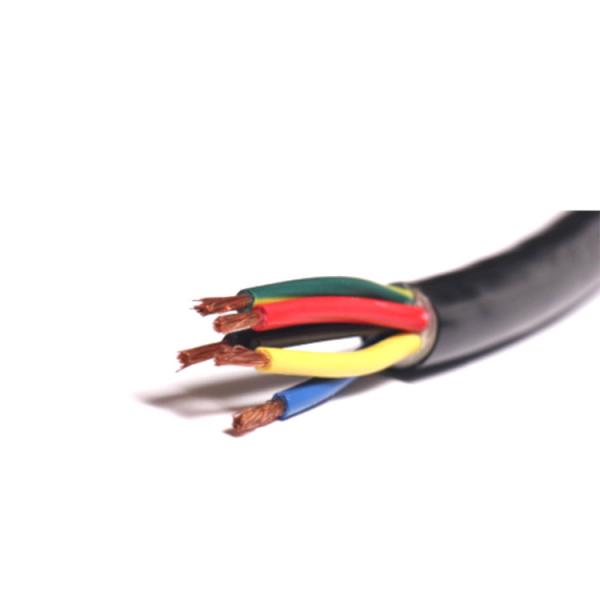

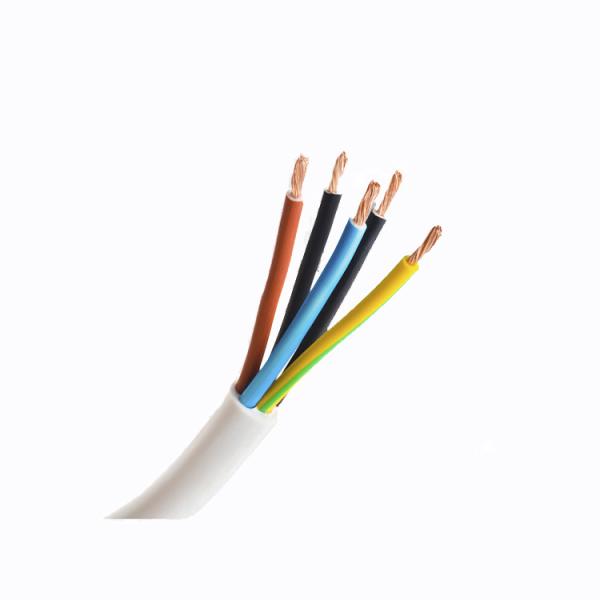

1. Product Image

5G X 0.5mm2 Oil Acid Resistant Cable , H05VVF Overhead Electric PVC Insulated Wire Cable

Company Contact Information:

OUR SERVICE 5G X 0.5mm2 Oil Acid Resistant Cable , H05VVF Overhead Electric PVC Insulated Wire Cable

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

jefflee

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
