0.6/1KV Pure Copper XLPE Cable , Low Voltage Underground Power Cable 2 3 4 Core
0.6/1KV Pure Copper XLPE Cable , Low Voltage Underground Power Cable 2 3 4 Core
0.6/1KV Pure Copper XLPE Cable , Low Voltage Underground Power Cable 2 3 4 Core
0.6/1KV Pure Copper XLPE Cable , Low Voltage Underground Power Cable 2 3 4 Core
0.6/1KV Pure Copper XLPE Cable , Low Voltage Underground Power Cable 2 3 4 Core
0.6/1KV Pure Copper XLPE Cable , Low Voltage Underground Power Cable 2 3 4 Core
0.6/1KV Pure Copper XLPE Cable , Low Voltage Underground Power Cable 2 3 4 Core
0.6/1KV Pure Copper XLPE Cable , Low Voltage Underground Power Cable 2 3 4 Core
Specifications
Brand Name :
JHY CABLE
Model Number :
YJV power cable
Certification :
ISO9000, CCC, CE
Place of Origin :
SHENZHEN CHINA
MOQ :
1000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 kilometer/ day
Delivery Time :
10~15 working days
Packaging Details :
100 meters per roll or according to the customer's request.
Conductor :
copper conductor
Core :
single core,2 core, 3 core, 3+1 core, etc
insulation :
XLPE
Jacket :
PVC
Rated voltage :
0.6/1KV or below
Package :
Wooden drum, wooden reel
Application :
Power Station
Description

0.6/1KV pure copper XLPE cable low voltage underground power cable 2 core 3 core 4 core YJV cable

Production Description:

1. Construction

  • conductor: pure copper conductor, class1/2
  • insulation: XLPE compound
  • Filler: PP filler, fabrics wrapping
  • sheath: PVC compound

2. Product Technical Parameter

Nominal cross section

(mm2)

Rerference overall diameter

(mm)

Current rating in air 30℃

(A)

Current rating buried 20℃

​(A)

Reference weight

(kg/km)
1x1.5 5.79 30 43 45
1x2.5 6.19 39 57 57
1x4 6.66 52 74 75
3x2.5 11.0 28 37 171
3x4 12.0 37 48 225
3x6 13.1 47 61 296
4x2.5 11.8 29 38 211
4x4 13.0 38 50 283
4x6 14.2 49 762 376

3. Features

  • cable conductor allowed working temperature doesn't exceed 70 ℃ in a long term.
  • Rated power-frequency voltage U0/U: 0.6/1KV
  • Max.permissible continuous operating temperature of conductor: 90℃
  • Max.shoort-circuit temperature of the conductor shall not exceed 250℃ (5s maximum duration).

4. Application

This product is suitable for power transmission and distribution under AC rated voltage 0.6/1kv and working frequency 50Hz lines.Low Voltage power cable is used to transmit and distribute power in power transmission and distribution system of 1kV. It is generally applied to the fields including power, mines, construction, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.

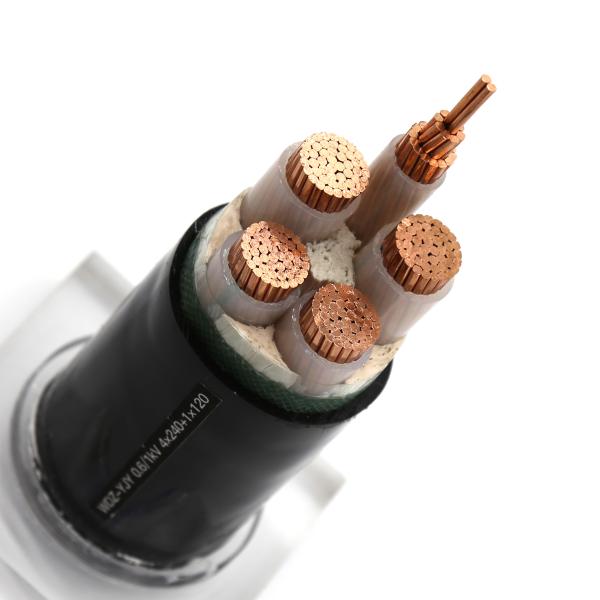

5. Product Image

0.6/1KV Pure Copper XLPE Cable , Low Voltage Underground Power Cable 2 3 4 Core

0.6/1KV Pure Copper XLPE Cable , Low Voltage Underground Power Cable 2 3 4 Core

0.6/1KV Pure Copper XLPE Cable , Low Voltage Underground Power Cable 2 3 4 Core

0.6/1KV Pure Copper XLPE Cable , Low Voltage Underground Power Cable 2 3 4 Core

Product Package

0.6/1KV Pure Copper XLPE Cable , Low Voltage Underground Power Cable 2 3 4 Core

6. Product standard

IEC 60502, GB/T 12706, BS 7870

7. Company certificate

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

8. Company information

Company Contact Information:

OUR SERVICE 0.6/1KV Pure Copper XLPE Cable , Low Voltage Underground Power Cable 2 3 4 Core

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
