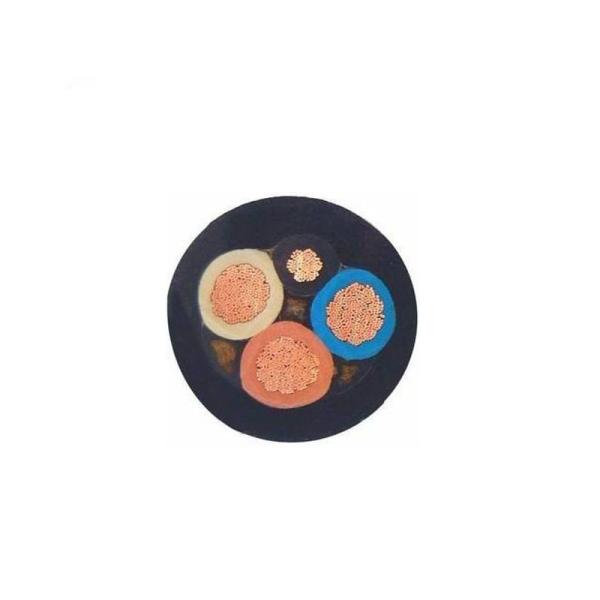

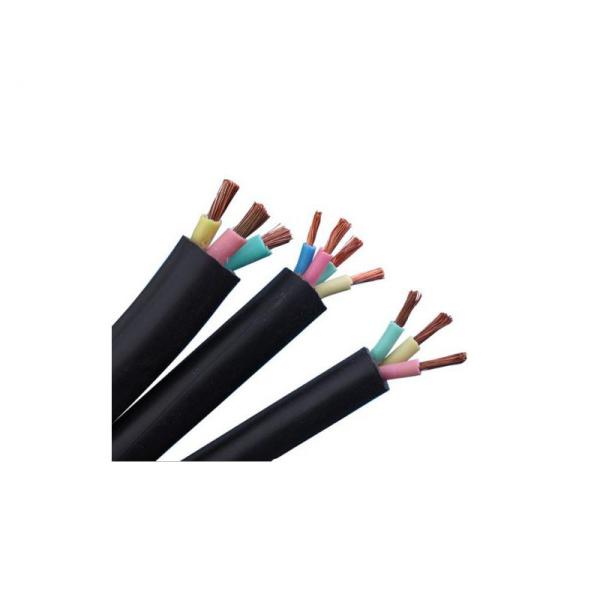

3 Core 1mm Rubber Insulation Copper Flexible Cable , Submersible Pump Cable
3 Core 1mm Rubber Insulation Copper Flexible Cable , Submersible Pump Cable
3 Core 1mm Rubber Insulation Copper Flexible Cable , Submersible Pump Cable
3 Core 1mm Rubber Insulation Copper Flexible Cable , Submersible Pump Cable
3 Core 1mm Rubber Insulation Copper Flexible Cable , Submersible Pump Cable
3 Core 1mm Rubber Insulation Copper Flexible Cable , Submersible Pump Cable
3 Core 1mm Rubber Insulation Copper Flexible Cable , Submersible Pump Cable
3 Core 1mm Rubber Insulation Copper Flexible Cable , Submersible Pump Cable
Specifications
Brand Name :
JHY CABLE
Model Number :
Rubber electric cable-01
Certification :
RoHS/CE/CCC/CB/UL
Place of Origin :
SHENZHEN CHINA
MOQ :
30 rolls
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000m/day
Delivery Time :
3-10days
Packaging Details :
100m/roll
Product Name :
YZW Rubber Eletric Cable
Conductor :
100% Copper
Insulation :
Rubber
Application :
Electric equipment and tools
Rated Temperature :
70°C
MOQ :
5000M
Description

3 Core 1mm Rubber Flexible Copper Submersible Pump Electrical Cable

Production Description:

1. Production Application

The long-term allowable working temperature of the cable shall not exceed 70 ℃. YZW and YCW cables have weather resistance and certain oil resistance, which are suitable for outdoor use or in contact with oil pollution.Used to connect to electric welding machine and electrode holder cable.Used for various portable electric equipment which can bear large mechanical force effect.

2. Company Certificates

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, UL,RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

3. Features

Voltage: 300/500v,450/750v

Conductor Material: Copper

Insulation Material: Ethylene propylene rubber

Jacket Material: Natural rubber/Chloroprene rubber

Conductor Type: Soft Conductor

Operating temperature: Cable conductor long-term maximum allowable working temperature of 65 ℃; short circuit, the cable conductor maximum temperature does not exceed 160 ℃, the duration of not more than 5S.

Environmental Temperature: The cable runs at a minimum ambient temperature of -10 ° C..

Laying temperature: Installation laying, the temperature should not be less than -10 ℃.

Bending radius: Cable bending radius of not more than 10D..

Color: green / yellow, light blue, black, brown,or according to customer requirements

Has good mechanical, electrical insulation, and chemical properties. It also has the property of anti-electromagnetic wave due to the shielded structure..

4. Types

Model Rated Voltage (V) Core No. Nominal Cross Section(mm2)
YZ 300/500 2,3,4,5,6 0.75~6
YZW 300/500 2,3,4,5,6 0.75~6
YC 450/750 1,2,3,4,5(4) 1~16
YCW 450/750 1,2,3,4,5(4) 1~16

5. Details

3 Core 1mm Rubber Insulation Copper Flexible Cable , Submersible Pump Cable

3 Core 1mm Rubber Insulation Copper Flexible Cable , Submersible Pump Cable

3 Core 1mm Rubber Insulation Copper Flexible Cable , Submersible Pump Cable

3 Core 1mm Rubber Insulation Copper Flexible Cable , Submersible Pump Cable

3 Core 1mm Rubber Insulation Copper Flexible Cable , Submersible Pump Cable

Company Contact Information:

OUR SERVICE 3 Core 1mm Rubber Insulation Copper Flexible Cable , Submersible Pump Cable

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
