Specifications
Brand Name :
JHY CABLE
Model Number :
BTTZ
Certification :
ISO9001/ISO14001/OHSAS18001/CCC/CE
Place of Origin :
SHENZHEN CHINA
MOQ :
10000M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000M/Day
Delivery Time :
10~15 Days
Packaging Details :
wooden drum
Application :
Construction,Industrial,Underground,Power Station,BUILDING
Type :
Mineral insulated
Conductor :
Bare Copper
Voltage :
0.6/1kV
Insulation :
mineral material
Sheath :
Copper
color :
orange
Core :
1C, 2C, 3C, 4C,
Description

1x35mm2 BTTZ 750V Mineral Insulated Copper Sheath High Temperature Cable , Heat Resistant Flexible Cable


Production Description:

APPLICATION

Mineral Insulated Cables offer a lifetime, ageless and fireproof electric cable solution that are used to protect essential life critical circuits in:

• High Rise Buildings

• Tunnels

• Airports

• Towers

• Mass Rapid Transit Systems

Conductors

Solid plain copper conductors

Insulation

Magnesium Oxide

Outer sheath

Plain copper sheath with optional LSZH covering

Electrical Characteristics at 20℃

Nominal Conductor Diameter

mm

1.39

1.77

2.25

2.75

3.57

4.5

5.66

6.66

7.75

Nominal Conductor Cross Section

mm^2

1.5

2.5

4.0

6.0

10.0

16.0

25.0

35.0

50.0

Maximum DC Conductor Resistance

Ω/km

12.1

7.41

4.64

3.08

1.83

1.15

0.727

0.524

0.387

Voltage Rating

KV

0.75

Nominal Conductor Diameter

mm

9.32

10.98

12.33

13.7

15.18

17.33

19.37

22.37

Nominal Conductor Cross Section

mm^2

70.0

95.0

120.0

150.0

185.0

240.0

300.0

400.0

Maximum DC Conductor Resistance

Ω/km

0.268

0.193

0.153

0.124

0.101

0.0775

0.0601

0.047

Voltage Rating

KV

0.75

Mechanical and Thermal Properties

  • Minimum Bending Radius: 2×OD (D<7); 3×OD (7 ≤ D<12); 4×OD (12 ≤ D<15); 6×OD (D ≥ 15)


6. Tabular data
Construction

1x35mm2 BTTZ 750V Heat Resistant Flexible Cable Mineral Insulated Copper Sheath High Temperature 1. Conductor material: Bare Copper
2. Outer Sheath copper
3.Insulation Material mineral

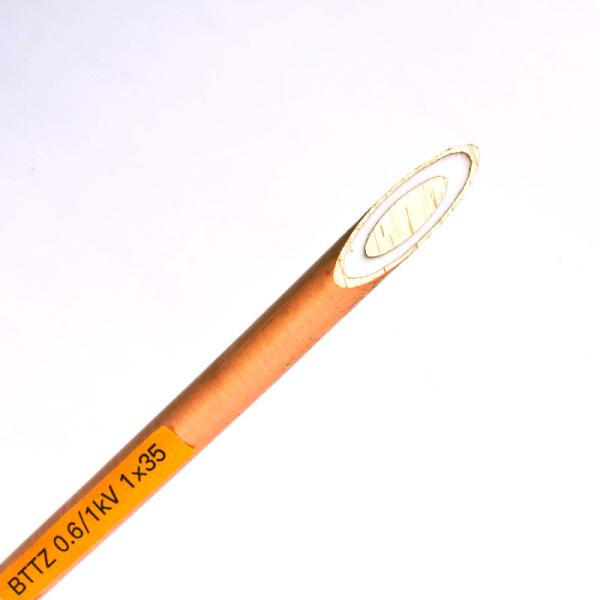

7. Product Image
1x35mm2 BTTZ 750V Heat Resistant Flexible Cable Mineral Insulated Copper Sheath High Temperature
