Copper Conductor Sheath Mineral Insulated Power Cable 5 Core BBTRZ Electrical Cable
Copper Conductor Sheath Mineral Insulated Power Cable 5 Core BBTRZ Electrical Cable
Copper Conductor Sheath Mineral Insulated Power Cable 5 Core BBTRZ Electrical Cable
Copper Conductor Sheath Mineral Insulated Power Cable 5 Core BBTRZ Electrical Cable
Copper Conductor Sheath Mineral Insulated Power Cable 5 Core BBTRZ Electrical Cable
Copper Conductor Sheath Mineral Insulated Power Cable 5 Core BBTRZ Electrical Cable
Copper Conductor Sheath Mineral Insulated Power Cable 5 Core BBTRZ Electrical Cable
Copper Conductor Sheath Mineral Insulated Power Cable 5 Core BBTRZ Electrical Cable
Specifications
Brand Name :
JHY CABLE
Model Number :
BBTRZ cable
Certification :
ISO9001/ISO14001/OHSAS18001/CCC/CE
Place of Origin :
SHENZHEN CHINA
MOQ :
1000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 kilometer/ day
Delivery Time :
10~15 working days
Packaging Details :
100 meters per roll or according to the customer's request.
Model :
BBTRZ
Type :
Low Voltage
Conductor :
copper conductor
Insulation :
Magnesium oxide
Sheath :
LSZH
Voltage :
0.6/1 kV
Color :
orange
Application :
Construction
Description

copper conductor sheath mineral insulated power cable 5 core BBTRZ electrical cable

1. Characteristics

  • Rated voltage:0.6/1kV;
  • Rated working voltage:light load500V,heavy load 0.6/1kV;
  • Rated current:single-core25A-1800Amulti-core16A-500A:
  • Insulation re saneins atonreistsane 00 0-km Cable lenqth less than 100m, then the insulation.
  • resistance > 1000MΩ:
  • Power frequency withs tand voltage:apply votae of 2000/ betwveen phase and phase as well as phase and copper sheat of ables of 3500V and 500V and 0.6/1k respectivelythey should be able to withstand for 15min without being broken down.

2. Technical parameters

Nominal cross-section

(mm2)

Conductor diameter

(mm)

Insulation thickness

(mm)

Sheath

thickness

(mm)

O.D.

(mm)

Current ratings in air

(A)

Current ratings underground

(A)

Reference weight

(kg/km)
5x1.5 1.37 0.7 1.8 25.6 17.6 25.3 691.2
5x2.5 1.76 0.7 1.8 23.8 30.8 39.6 649.5
5x4 2.23 0.7 1.8 25.4 40.7 56.1 773.2
5x6 2.74 0.7 1.8 26.4 51.7 70.4 929.4
5x10 4.0 0.7 1.8 29.5 71.5 94.6 1280.2
5x16 5.0 0.7 1.8 32.4 92.4 121.0 1687.0
5x25 6.0 0.9 1.8 36.5 121.0 154.0 2326.5
5x35 7.0 0.9 1.8 39.5 148.5 187.0 2937.8
5x50 8.20 1.0 2.1 43.1 187.0 225.5 3808.4
5x70 9.90 1.1 2.1 48.5 236.5 275.0 5205.3
5x95 11.6 1.1 2.3 53.5 291.5 330.0 6748.5
5x120 13.0 1.2 2.4 58.1 341.0 379.5 8225.6
5x150 14.5 1.4 2.6 63.9 385.0 423.5 10076.1
5x185 16.2 1.7 2.8 69.7 445.5 478.5 12482.5
5x240 18.4 1.7 3.0 76.4 528.0 550.0 15793.8
5x300 20.7 1.8 3.2 83.6 610.5 621.5 19455.2
5x400 23.2 2.0 3.6 92.5 704.0 704.0 24720.8

3. Application

  • Public service: railway stations, road & rail tunnels, public lighting, car parks, public service building
  • Property & personal safety: shopping malls, airports, underground rail systems, schools, hospitals, hotels, theatres, churches.
  • High temperature situation: foundries, power stations, boiler houses, iron & steel industries, marine & ship buildings.
  • Potentially explosive area: refineries, chemical plants, oil & gas production, filling stations, processing plants, garages.

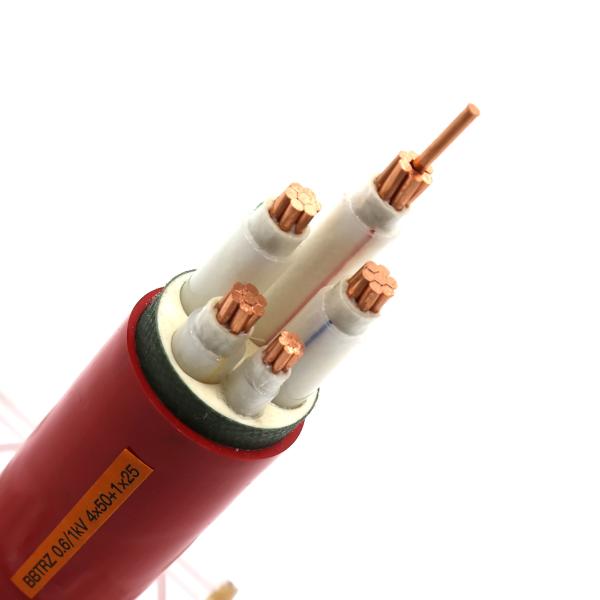

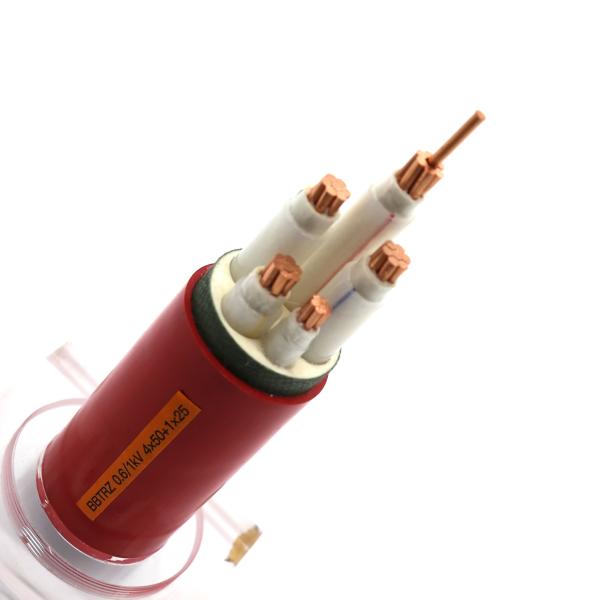

4. Product Image

Copper Conductor Sheath Mineral Insulated Power Cable 5 Core BBTRZ Electrical Cable

Copper Conductor Sheath Mineral Insulated Power Cable 5 Core BBTRZ Electrical Cable

Copper Conductor Sheath Mineral Insulated Power Cable 5 Core BBTRZ Electrical Cable

Product Package

Copper Conductor Sheath Mineral Insulated Power Cable 5 Core BBTRZ Electrical Cable

5. Product standard

GB/T 34926, GB/T 13033, IEC 62702, IEC 60331, BS 6387, BS 6207.

6. Company certificate

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

7. Company information

Company Contact Information:

OUR SERVICE Copper Conductor Sheath Mineral Insulated Power Cable 5 Core BBTRZ Electrical Cable

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
