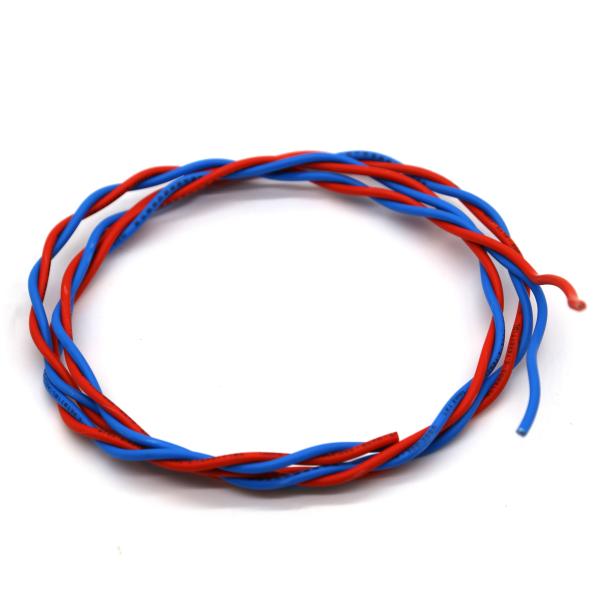

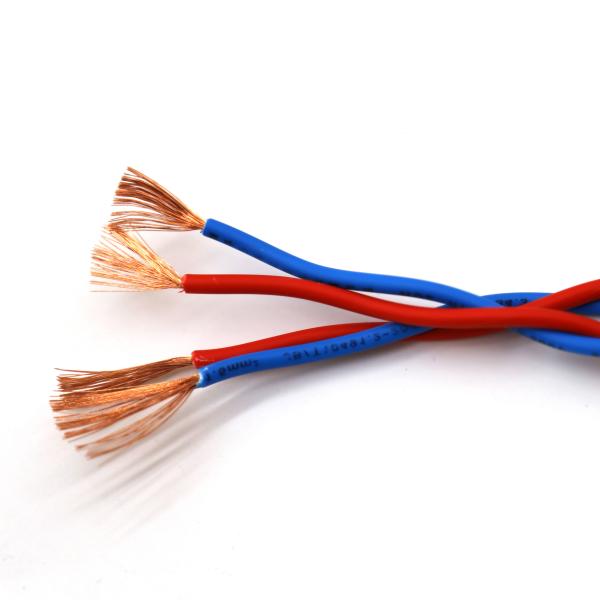

300/300V Fire Resistant Cable 1.5mm Square Copper Core PVC Insulated Stranded
300/300V Fire Resistant Cable 1.5mm Square Copper Core PVC Insulated Stranded
300/300V Fire Resistant Cable 1.5mm Square Copper Core PVC Insulated Stranded
300/300V Fire Resistant Cable 1.5mm Square Copper Core PVC Insulated Stranded
300/300V Fire Resistant Cable 1.5mm Square Copper Core PVC Insulated Stranded
300/300V Fire Resistant Cable 1.5mm Square Copper Core PVC Insulated Stranded
300/300V Fire Resistant Cable 1.5mm Square Copper Core PVC Insulated Stranded
300/300V Fire Resistant Cable 1.5mm Square Copper Core PVC Insulated Stranded
Specifications
Brand Name :
JHY CABLE
Model Number :
RVS cable-06
Certification :
RoHS/CE/CCC/CB
Place of Origin :
SHENZHEN CHINA
MOQ :
10 boxs
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000m/day
Delivery Time :
3-8 day
Packaging Details :
100m/roll
Conductor :
Oxygen free copper
Insulation :
Fire retardant refractory
O.D :
7.2MM
Weight :
46 kg/km
Rated voltage :
300/300v
Application :
Alarm system
Description

300/300V 1.5mm square copper core PVC insulated stranded fire resistant cable

1. Production Application

Apply to building intelligent alarm system of multi-core control, Building intercom system, three tables automatic reading system,electric appliance internal control,control meter of computer,electronic equipment and automatic device etc.

2. Company Certificates

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, UL,China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

3. Construction

Nominal section

(mm2 )

Core structure no./diameter

(mm)

 Average upper limit of O.D.(mm)
2*0.5 28/0.15 6.0
2*0.75 42/0.15 6.2
2*1.0 56/0.15 6.6
2*1.5 84/0.15 7.2
2*2.5 140/0.15 8.2
2*4 220/0.15 9.5
2*6 190/0.20 11.6
4. CHARACTERISTICS

1. The permissble long-term working temperature of the cable conductor: PVC insulated is 70 °C. During the cable laying, the ambient temperature must be above 0 °C.

2. The permissible bending radius in cable laying and installing.

a). For unarmoured cable, it shall not be less than 6 times of external diameter of cable.

b). For armoured or copper tape screened cable, it shall not be less than 12 times of the external diameter of cable.

c). For the flexible cable with screen layers, it shall not be less than 6 times of the external diameter of cable.

1. Wire - twin crossing electrical wire is made complying with the national standed

2. We can also customize the electrical wire and cable as your request! You can decide the core count and cross seaction of the conductor,as well as the jacket and insulation.

5. Type & Special

No×Area of conductor

mm²

 Upper limit of average outer diameter mm

Max conductor

resistance

at 20℃

Ω/km

Min insulation resistance

at 70℃

Ω/km

 Recommended value of current carrying capacity A Reference weight kg / km
2*0.5 6.0 39.0 0.016 9 22
2*0.75 6.2 26.0 0.014 12 29
2*1 6.6 19.5 0.013 14 34
2*1.5 7.2 13.3 0.012 18 46
2*2.5 8.2 7.98 0.0095 25 66
2*4 9.5 4.95 0.0079 33 96
2*6 11.6 3.30 0.0081 42 145

Lead time:
Quantity(box) 10 100
EST.time(day) 3-5 5-15
Product Describe:
300/300V Fire Resistant Cable 1.5mm Square Copper Core PVC Insulated Stranded
300/300V Fire Resistant Cable 1.5mm Square Copper Core PVC Insulated Stranded
300/300V Fire Resistant Cable 1.5mm Square Copper Core PVC Insulated Stranded
300/300V Fire Resistant Cable 1.5mm Square Copper Core PVC Insulated Stranded

300/300V Fire Resistant Cable 1.5mm Square Copper Core PVC Insulated Stranded

Company Contact Information:

OUR SERVICE 300/300V Fire Resistant Cable 1.5mm Square Copper Core PVC Insulated Stranded

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
