1000ft Shielded 18/2 Red FPLR Fire Alarm Cable , Fire Rated Cable For Fire Alarm System Solid BC
1000ft Shielded 18/2 Red FPLR Fire Alarm Cable , Fire Rated Cable For Fire Alarm System Solid BC
1000ft Shielded 18/2 Red FPLR Fire Alarm Cable , Fire Rated Cable For Fire Alarm System Solid BC
1000ft Shielded 18/2 Red FPLR Fire Alarm Cable , Fire Rated Cable For Fire Alarm System Solid BC
1000ft Shielded 18/2 Red FPLR Fire Alarm Cable , Fire Rated Cable For Fire Alarm System Solid BC
1000ft Shielded 18/2 Red FPLR Fire Alarm Cable , Fire Rated Cable For Fire Alarm System Solid BC
1000ft Shielded 18/2 Red FPLR Fire Alarm Cable , Fire Rated Cable For Fire Alarm System Solid BC
1000ft Shielded 18/2 Red FPLR Fire Alarm Cable , Fire Rated Cable For Fire Alarm System Solid BC
Specifications
Brand Name :
JHY CABLE
Model Number :
Fire alarm cable
Certification :
ISO9001/ISO14001/OHSAS18001/CCC/CE
Place of Origin :
SHENZHEN CHINA
MOQ :
1000M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000M/Day
Delivery Time :
7 Days
Packaging Details :
100m/Roll
Application :
fire alarm systerm
Type :
Fire alarm cable
Conductor :
Copper
Insulation :
Fireproof PVC
Jacket :
FPLR PVC
Shield :
Al Foil
Description

1000ft Shielded 18/2 Red FPLR Security/Fire Alarm Cable, Solid BC

Production Description:

1. Solid or stranded tinned or bare copper conductor.

2. Fire-resistant PVC or LSOH insulation and Jacket.

3. Fiberglass tape or fire-resistant mica tape insulation ( Optional ).

4. Test on electric cables under fire conditions complies with IEC60332-3-24: 2000, UL 1424, Power,

Limited Fire alarm Circuit Cables C22.2 N0. 208-03, Fire-Alarm and Signal.

5. Measurement of smoke density of cable burning under defined conditions on electric cables under fire conditions complies to

IEC61034-2:2005.

6. Test on electric cables under fire conditions complies to IEC60331-21:1999

KEY APPLICATIONS

1. Fire detection and fire alarm systems for buildings.

2. Voice alarm systems.

3. Emergency voice communication.

4. Emergency and escape lighting.

5. Other essential service control circuits for standard fire resistance.

5. Tabular data

Part N0. Description Conductor Spec. Insulation Jacket Packing

Nom thick.

(mm)

Nom Diam

(mm)

Nom Thick.

(mm)

Nom Diam

(mm)
ECFC001

BC/TC

Solid or stranded

Shielded or unshielded

PVC or LSOH

Insulation Jacket

 2×0.50mm 0.5 1.8 0.7 5.2

Box

Coil

Drum

Paper reel

Plastic reel

Wooden reel
ECFC002 3×0.50mm 0.5 1.8 0.7 5.2
ECFC003 2×0.80mm 0.5 2.0 0.7 5.4
ECFC004 3×0.80mm 0.5 2.0 0.7 5.4
ECFC005 2×1.00mm 0.6 2.35 0.8 6.5
ECFC006 3×1.00mm 0.6 2.35 0.8 6.5
ECFC007 2×1.50mm 0.7 2.8 1.0 7.8
ECFC008 3×1.50mm 0.7 2.8 1.0 7.8
ECFC009 2×2.50mm 0.8 3.4 1.0 9.0
ECFC010 3×2.50mm 0.8 3.4 1.0 9.0

Construction

1000ft Shielded 18/2 Red FPLR Fire Alarm Cable , Fire Rated Cable For Fire Alarm System Solid BC 1. Conductor material: Copper
2. Insulation material: Fireproof PVC
3. Jacket material: PVC
4.Shield material:

Al Foil

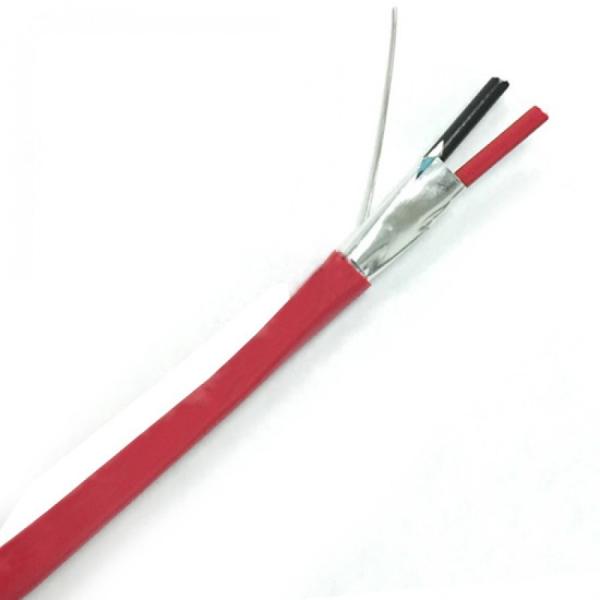

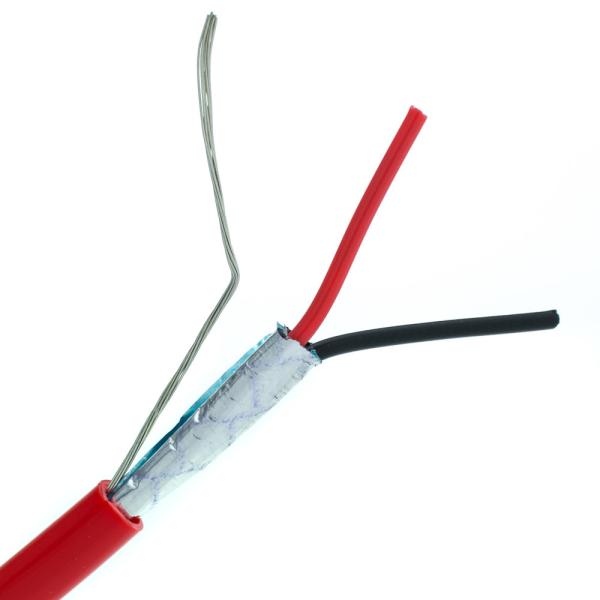

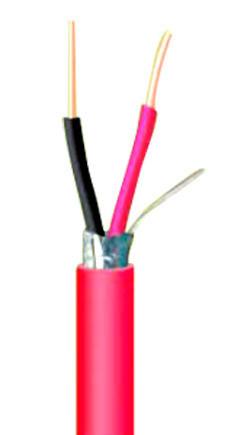

6. Product Image

1000ft Shielded 18/2 Red FPLR Fire Alarm Cable , Fire Rated Cable For Fire Alarm System Solid BC

Company Contact Information:

OUR SERVICE 1000ft Shielded 18/2 Red FPLR Fire Alarm Cable , Fire Rated Cable For Fire Alarm System Solid BC

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team
