2 Core Copper Conductor Flexible Electrical Cable Shield Wire PVC 1mm 2.5mm 4mm RVVP Cable
2 Core Copper Conductor Flexible Electrical Cable Shield Wire PVC 1mm 2.5mm 4mm RVVP Cable
2 Core Copper Conductor Flexible Electrical Cable Shield Wire PVC 1mm 2.5mm 4mm RVVP Cable
2 Core Copper Conductor Flexible Electrical Cable Shield Wire PVC 1mm 2.5mm 4mm RVVP Cable
2 Core Copper Conductor Flexible Electrical Cable Shield Wire PVC 1mm 2.5mm 4mm RVVP Cable
2 Core Copper Conductor Flexible Electrical Cable Shield Wire PVC 1mm 2.5mm 4mm RVVP Cable
2 Core Copper Conductor Flexible Electrical Cable Shield Wire PVC 1mm 2.5mm 4mm RVVP Cable
2 Core Copper Conductor Flexible Electrical Cable Shield Wire PVC 1mm 2.5mm 4mm RVVP Cable
Specifications
Brand Name :
JHY CABLE
Model Number :
RVVP cable
Certification :
CCC/ CE/ ISO
Place of Origin :
SHENZHEN CHINA
MOQ :
1000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
70 kilometer/ day
Delivery Time :
5~7 working days
Packaging Details :
100 meters per roll or according to the customer's request.
Conductor :
Stranded class 5 plain copper wire
Size :
2 x 0.5~10mm2
Insulation :
PVC insulation
Color :
red, blue,green, yellow or others
Sheath :
PVC sheath
Shield :
AL + TC braided
Application :
Electric appliance,LED lighting.construction
Description

2 core copper conductor shield wire PVC electrical 1mm 2.5mm 4mm RVVP cable

Production Description:

1. Specifications

  • Conductor: stranded flexible copper​
  • Cores: 2-10 cores
  • Insulation: flame retardant PVC
  • Insulation Color: red, brown, black ,yellow ,green, etc.
  • Shield : single shielded: AL foil; double shieded: AL foil+braid
  • Sheath: PVC
  • Rated voltage: 300/300V, 300/500V

2. Product Technical data

Nominal cross-section

(mm2)

Insulation thickness

(mm)

Reference overall diameter

(mm)

Conductor resistance at 20℃

(Ω/km)

Minimum insulation resistance at 70 ℃

(MΩ·km)

Reference weight

(kg/km)
2x0.5 0.6 6.0 39.0 0.012 48.3
2x0.75 0.6 7.0 26.0 0.010 63.2
2x1.0 0.6 7.5 19.5 0.010 73.0
2x1.5 0.7 8.4 13.3 0.009 92.9
2x2.5 0.8 9.0 7.98 0.008 136.5
2x4 0.8 11.8 4.95 0.007 209.5
2x6 0.8 13.4 3.3 0.006 263.2

3. Application

  • communication audio frequency
  • broadcast sound system
  • electric equipment and automatic equipment
  • anti-interference needed circuit shielded wire and cable

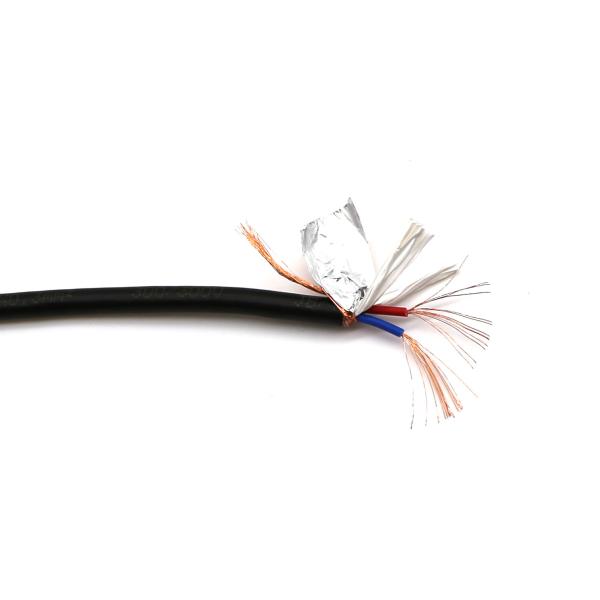

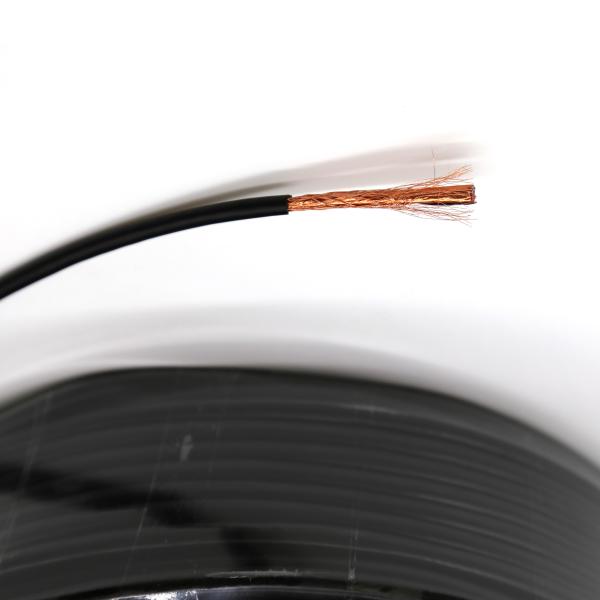

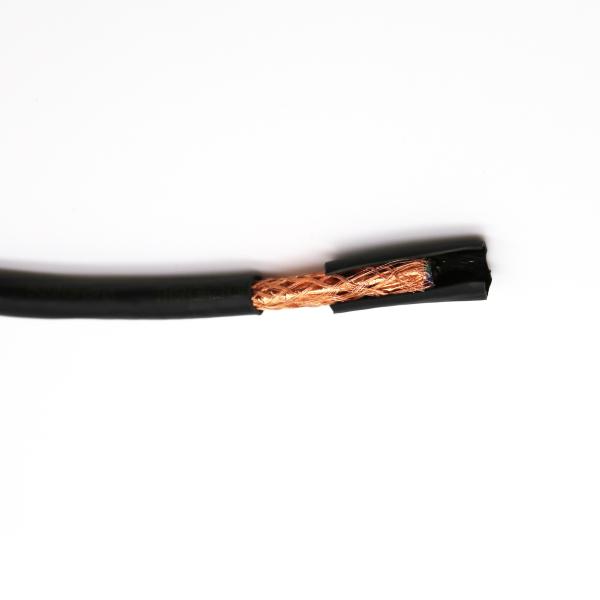

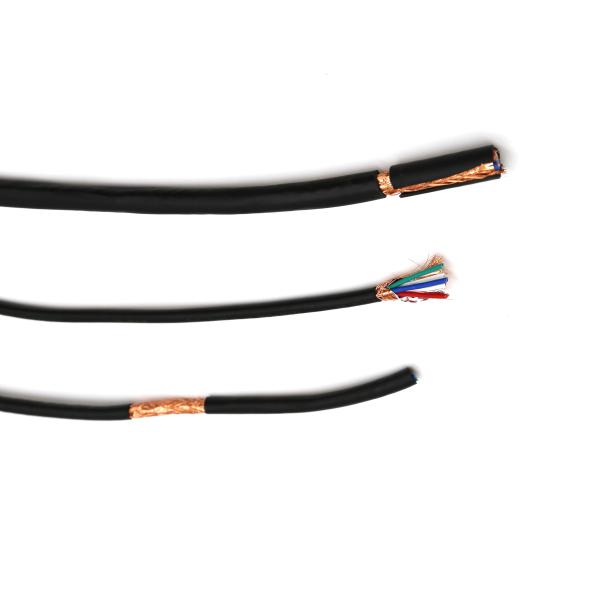

4. Product Image

2 Core Copper Conductor Flexible Electrical Cable Shield Wire PVC 1mm 2.5mm 4mm RVVP Cable

2 Core Copper Conductor Flexible Electrical Cable Shield Wire PVC 1mm 2.5mm 4mm RVVP Cable

2 Core Copper Conductor Flexible Electrical Cable Shield Wire PVC 1mm 2.5mm 4mm RVVP Cable

Product Advantage

2 Core Copper Conductor Flexible Electrical Cable Shield Wire PVC 1mm 2.5mm 4mm RVVP Cable

Product Package

2 Core Copper Conductor Flexible Electrical Cable Shield Wire PVC 1mm 2.5mm 4mm RVVP Cable

5. Product standard

JB/T 8734.5, IEC 60227,BS 6500,BS EN 50525,VDE 0281

6. Company certificate

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

7. Company information

Company Contact Information:

OUR SERVICE 2 Core Copper Conductor Flexible Electrical Cable Shield Wire PVC 1mm 2.5mm 4mm RVVP Cable

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
