2 X 0.5~10mm2 3 Core Bare Copper Wire , Screened Double PVC Flexible RVVP Cable Wire
2 X 0.5~10mm2 3 Core Bare Copper Wire , Screened Double PVC Flexible RVVP Cable Wire
2 X 0.5~10mm2 3 Core Bare Copper Wire , Screened Double PVC Flexible RVVP Cable Wire
2 X 0.5~10mm2 3 Core Bare Copper Wire , Screened Double PVC Flexible RVVP Cable Wire
2 X 0.5~10mm2 3 Core Bare Copper Wire , Screened Double PVC Flexible RVVP Cable Wire
2 X 0.5~10mm2 3 Core Bare Copper Wire , Screened Double PVC Flexible RVVP Cable Wire
2 X 0.5~10mm2 3 Core Bare Copper Wire , Screened Double PVC Flexible RVVP Cable Wire
2 X 0.5~10mm2 3 Core Bare Copper Wire , Screened Double PVC Flexible RVVP Cable Wire
Specifications
Brand Name :
JHY CABLE
Model Number :
RVVP cable
Certification :
CCC/ CE/ ISO
Place of Origin :
SHENZHEN CHINA
MOQ :
1000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
70 kilometer/ day
Delivery Time :
5~7 working days
Packaging Details :
100 meters per roll or according to the customer's request.
Conductor :
Stranded pure oxygen free copper
Size :
2 x 0.5~10mm2
Insulation :
PVC(anti-wear, tensile, bending resistant)
Color :
red, blue,green or others
Sheath :
PVC sheath
Shield :
AL ,TC,AM braided
Application :
mechanical equipment,LED lighting
Description

Jinhuanyu 3 core bare copper wire screened double PVC flexible RVVP wire cable

Production Description:

1. Specifications

Flexible Shielded Power Wire
Conductor Material pure oxygen free copper
Insulation Material special PVC(anti-wear, tensile, bending resistant)
Insulation Colour multicolor
Sheath Material special PVC (anti-wear, tensile, bending, oil resistant)
Insulation Resistance minimum 20MΩ/km
Temperature Range
Mobile installation -5℃ to 70 ℃
Fixed installation -15℃ to 70℃
Nominal Voltage Uo/U: 300/300V; 300V/500V

2. Technical data

Nominal cross-section

(mm2)

Insulation thickness

(mm)

Reference overall diameter

(mm)

Conductor resistance at 20℃

(Ω/km)

Minimum insulation resistance at 70 ℃

(MΩ·km)

Reference weight

(kg/km)
3x0.5 0.6 6.0 39.0 0.012 58.3
3x0.75 0.6 7.3 26.0 0.010 76.9
3x1.0 0.6 8.1 19.5 0.010 87.6
3x1.5 0.7 9.1 13.3 0.009 117.6
3x2.5 0.8 9.8 7.98 0.008 169.1
2x4 0.8 12.7 4.95 0.007 247.7
2x6 0.8 14.3 3.30 0.006 318.7

3. Application

suitable for the connection of household appliances, small power tools, instrumentation and power lighting devices with AC voltages of 450/750V and below

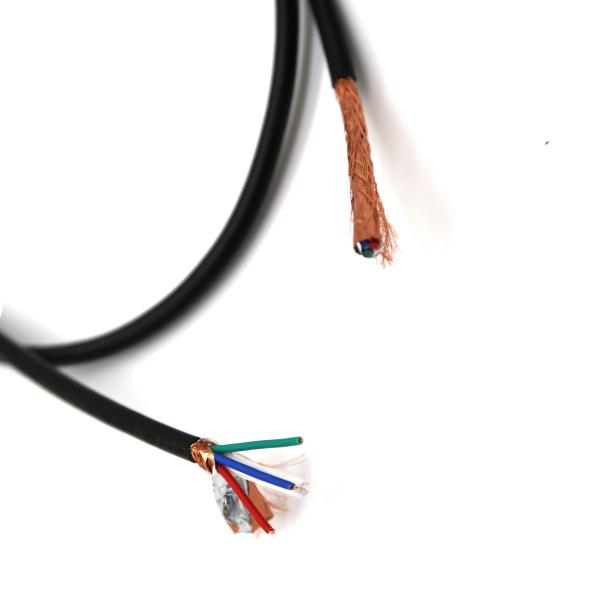

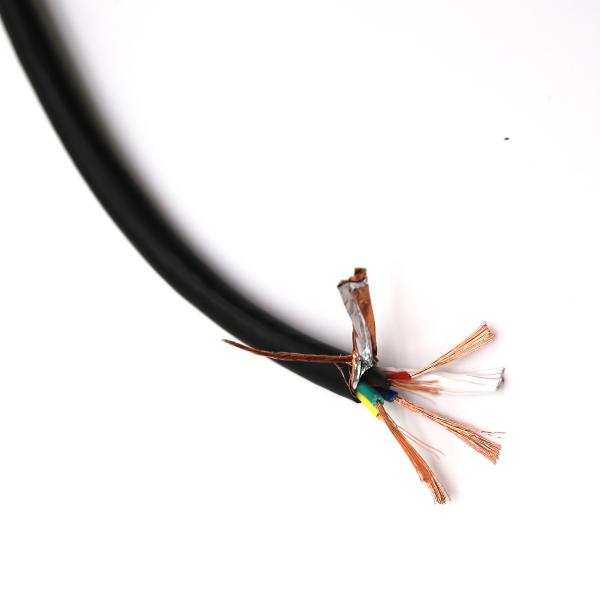

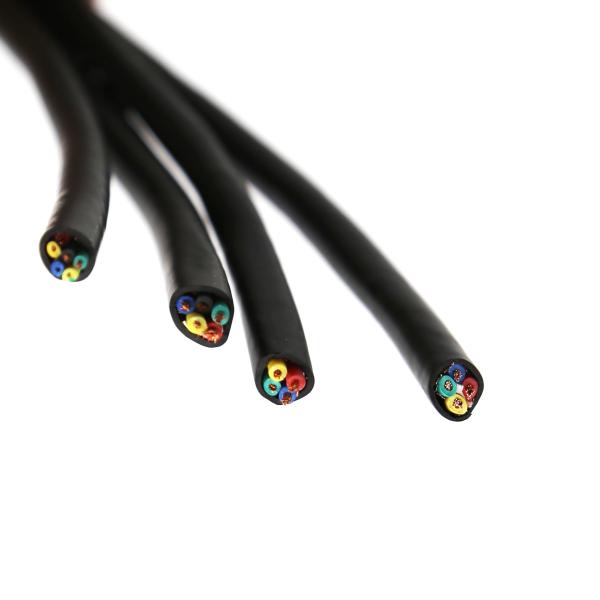

4. Product Image

2 X 0.5~10mm2 3 Core Bare Copper Wire , Screened Double PVC Flexible RVVP Cable Wire

2 X 0.5~10mm2 3 Core Bare Copper Wire , Screened Double PVC Flexible RVVP Cable Wire

2 X 0.5~10mm2 3 Core Bare Copper Wire , Screened Double PVC Flexible RVVP Cable Wire

Product Advantage

2 X 0.5~10mm2 3 Core Bare Copper Wire , Screened Double PVC Flexible RVVP Cable Wire

Product Package

2 X 0.5~10mm2 3 Core Bare Copper Wire , Screened Double PVC Flexible RVVP Cable Wire

5. Product standard

JB/T 8734.5, IEC 60227,BS 6500,BS EN 50525,VDE 0281

6. Company certificate

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

7. Company information

Company Contact Information:

OUR SERVICE 2 X 0.5~10mm2 3 Core Bare Copper Wire , Screened Double PVC Flexible RVVP Cable Wire

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
