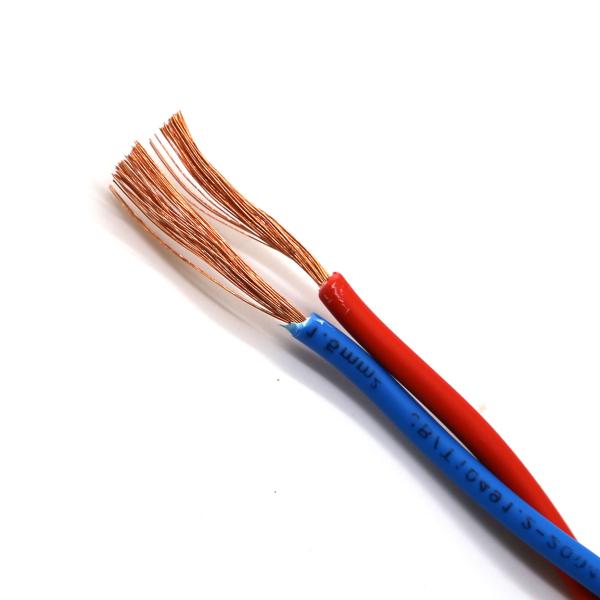

OFC Conductor PVC Insulated Cable Ground Connection With Soft Line RVS Eletrical Cable
OFC Conductor PVC Insulated Cable Ground Connection With Soft Line RVS Eletrical Cable
OFC Conductor PVC Insulated Cable Ground Connection With Soft Line RVS Eletrical Cable
OFC Conductor PVC Insulated Cable Ground Connection With Soft Line RVS Eletrical Cable
OFC Conductor PVC Insulated Cable Ground Connection With Soft Line RVS Eletrical Cable
OFC Conductor PVC Insulated Cable Ground Connection With Soft Line RVS Eletrical Cable
OFC Conductor PVC Insulated Cable Ground Connection With Soft Line RVS Eletrical Cable
OFC Conductor PVC Insulated Cable Ground Connection With Soft Line RVS Eletrical Cable
Specifications
Brand Name :
JHY CABLE
Model Number :
RVS cable-07
Certification :
RoHS/CE/CCC/CB
Place of Origin :
SHENZHEN CHINA
MOQ :
10 boxs
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000m/day
Delivery Time :
3-8 day
Packaging Details :
100m/roll
Product name :
RVS Cable
Conductor :
Oxygen free copper
Insulation :
PVC
Application :
Building
Resistance :
13.3 ohm/km
MOQ :
2000M
Description

OFC Conductor PVC Insulated Ground Connection with Soft Line RVS Eletrical Cable

1. Production Application

The cable is used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protective installation.These cables are used for installation in signaling and alarm system or security system Infrared as well as micro wave or mixed technology systems to switchboard.rating voltage:300V.allows cable conductor long-term maximum operating temperature is 70C

2. Company Certificates

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, UL,China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

3. Construction
RVS Flexible Cable
Category: RVS wire, RVB wire
Specification: 2 Cores
Conductor 2*0.12*42mm,2*0.12mm*81,2*0.14*14mm,2*0.14*54mm
Material Copper
Jacket: New PVC
Color: Green and Red,Transparent Golden and Blue
Meters: 1mtrs-100mtrs,100-200m,200-305m
Application: Telecommunication, Computer networks, Instrumentation

4. CHARACTERISTICS

1. The permissble long-term working temperature of the cable conductor: PVC insulated is 70 °C. During the cable laying, the ambient temperature must be above 0 °C.

2. The permissible bending radius in cable laying and installing.

a). For unarmoured cable, it shall not be less than 6 times of external diameter of cable.

b). For armoured or copper tape screened cable, it shall not be less than 12 times of the external diameter of cable.

c). For the flexible cable with screen layers, it shall not be less than 6 times of the external diameter of cable.

5. Type & Special

No×Area of conductor

mm²

 Upper limit of average outer diameter mm

Max conductor

resistance

at 20℃

Ω/km

Min insulation resistance

at 70℃

Ω/km

 Recommended value of current carrying capacity A Reference weight kg / km
2*0.5 6.0 39.0 0.016 9 22
2*0.75 6.2 26.0 0.014 12 29
2*1 6.6 19.5 0.013 14 34
2*1.5 7.2 13.3 0.012 18 46
2*2.5 8.2 7.98 0.0095 25 66
2*4 9.5 4.95 0.0079 33 96
2*6 11.6 3.30 0.0081 42 145

Lead time:
Quantity(box) 10 100
EST.time(day) 3-5 5-15
Product Describe:
OFC Conductor PVC Insulated Cable Ground Connection With Soft Line RVS Eletrical Cable
OFC Conductor PVC Insulated Cable Ground Connection With Soft Line RVS Eletrical Cable
OFC Conductor PVC Insulated Cable Ground Connection With Soft Line RVS Eletrical Cable

OFC Conductor PVC Insulated Cable Ground Connection With Soft Line RVS Eletrical Cable

Company Contact Information:

OUR SERVICE OFC Conductor PVC Insulated Cable Ground Connection With Soft Line RVS Eletrical Cable

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
