Household Wire Red Yellow Flexible Electrical Cable Red Blue Copper Twisted Pair RVS Cable
Household Wire Red Yellow Flexible Electrical Cable Red Blue Copper Twisted Pair RVS Cable
Household Wire Red Yellow Flexible Electrical Cable Red Blue Copper Twisted Pair RVS Cable
Household Wire Red Yellow Flexible Electrical Cable Red Blue Copper Twisted Pair RVS Cable
Household Wire Red Yellow Flexible Electrical Cable Red Blue Copper Twisted Pair RVS Cable
Household Wire Red Yellow Flexible Electrical Cable Red Blue Copper Twisted Pair RVS Cable
Household Wire Red Yellow Flexible Electrical Cable Red Blue Copper Twisted Pair RVS Cable
Household Wire Red Yellow Flexible Electrical Cable Red Blue Copper Twisted Pair RVS Cable
Specifications
Brand Name :
JHY CABLE
Model Number :
RVVB cable
Certification :
CCC/ CE/ CB/ ISO
Place of Origin :
SHENZHEN CHINA
MOQ :
1000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
70 kilometer/ day
Delivery Time :
3~5 working days
Packaging Details :
100 meters per roll or according to the customer's request.
Model :
twisted RVS cable
Conductor :
stranded flexible copper wire
Size :
2x0.5mm2, 2x0.75mm2, 2x1.0mm2
Insulation :
PVC insulation cable
Color :
red/yellow or red/blue, etc
Length :
100m
Rated Voltage :
300/300V
Application :
lighting,electrical appliances
Temerature :
20℃ to 70 ℃
Description

Household wire red/yellow red/blue flexible copper twisted pair RVS cable

Production Description:

1. Product specification of RVS cable

Conductor material oxygen-free copper, 99.95%
Insulation material PVC insulation
Size 2x0.5mm2, 2x0.75mm2, 2x1.0mm2, 2x1.5mm2, 2x2.5mm2,2x4mm2,etc.
Rated voltage 300/300V
Feature Flame retardant,Flexible,Durable,High quality,Environmentally friendly
Color red and blue,red and white,red and black,red and yellow,etc.
Application

Household electrical,Power lighting, Small power tool,Instrument

2. Product technical parameters

Nominal cross-section

(mm2)

Conductor structure

(No./mm)

Insulation thickness

(mm)

Conductor outer diameter

(mm)

Conductor resistance at 20℃

(Ω/km)

Maximum insulation resistance at 70℃

(MΩ/km)
2x0.5 28/0.15 0.8 0.96 39 0.016
2x0.75 42/0.15 0.8 1.20 26 0.014
2x1.0 32/0.20 0.8 1.34 19.5 0.010
2x1.5 48/0.20 0.8 1.63 13.3 0.009
2x2.5 77/0.20 0.8 2.10 7.98 0.009

3. Application

  • The products are mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required.
  • As detector line for fire alarm automatic alarm system .
  • Suitable for household appliances, small power tools, instrumentation and power lighting. Double white core is used for direct connection to the lamp line; red and blue core is used for fire protection, alarm, etc.; red and white core is used for broadcasting and telephone line; red and black core is used for broadcasting line.
  • Used to connect amplifiers and audio equipment, broadcast systems to transmit audio signals amplified by amplifiers

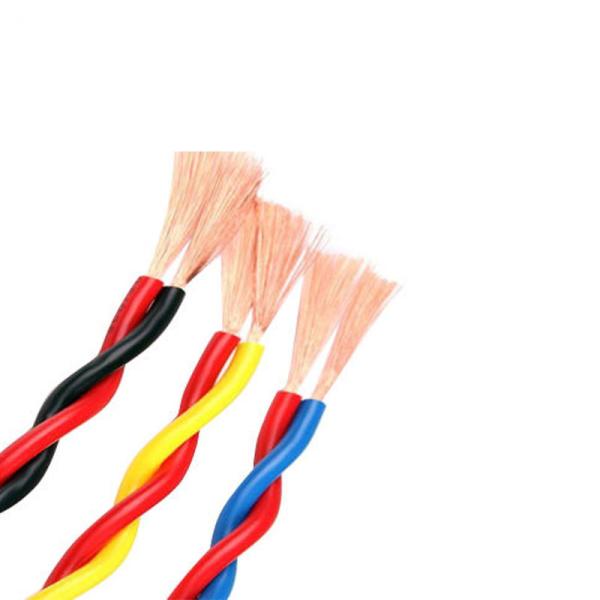

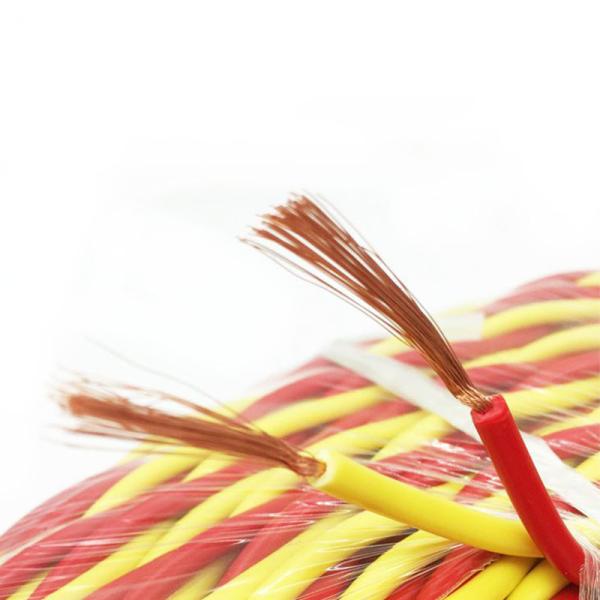

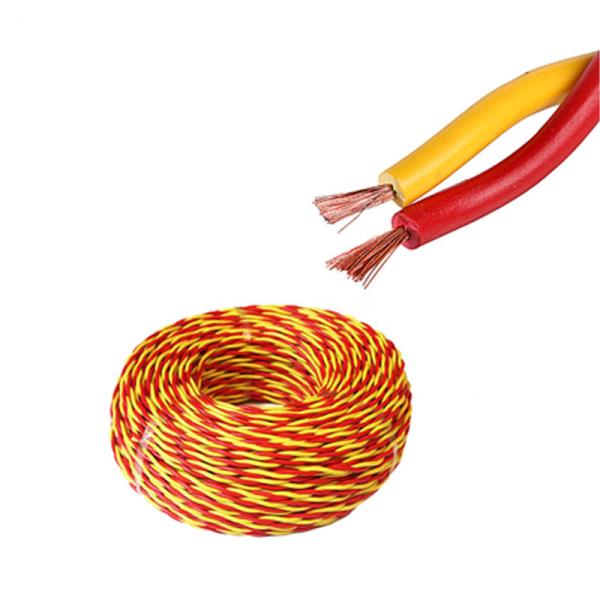

4. Product Image

Household Wire Red Yellow Flexible Electrical Cable Red Blue Copper Twisted Pair RVS Cable

Household Wire Red Yellow Flexible Electrical Cable Red Blue Copper Twisted Pair RVS Cable

Household Wire Red Yellow Flexible Electrical Cable Red Blue Copper Twisted Pair RVS Cable

Household Wire Red Yellow Flexible Electrical Cable Red Blue Copper Twisted Pair RVS Cable

Household Wire Red Yellow Flexible Electrical Cable Red Blue Copper Twisted Pair RVS Cable

Product Advantage

Household Wire Red Yellow Flexible Electrical Cable Red Blue Copper Twisted Pair RVS Cable

Product Application

Household Wire Red Yellow Flexible Electrical Cable Red Blue Copper Twisted Pair RVS Cable

Product Package

Household Wire Red Yellow Flexible Electrical Cable Red Blue Copper Twisted Pair RVS Cable

5. Product standard

GB/T 3956, IEC 60228,BS 6360 .

6. Company certificate

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

7. Company information

Company Contact Information:

OUR SERVICE Household Wire Red Yellow Flexible Electrical Cable Red Blue Copper Twisted Pair RVS Cable

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
