Bare Copper Wire RVVP Flexible Electrical Cable Braiding 4 Cores 0.5mm 1.5mm 2.5mm YSLY-CY
Bare Copper Wire RVVP Flexible Electrical Cable Braiding 4 Cores 0.5mm 1.5mm 2.5mm YSLY-CY
Bare Copper Wire RVVP Flexible Electrical Cable Braiding 4 Cores 0.5mm 1.5mm 2.5mm YSLY-CY
Bare Copper Wire RVVP Flexible Electrical Cable Braiding 4 Cores 0.5mm 1.5mm 2.5mm YSLY-CY
Bare Copper Wire RVVP Flexible Electrical Cable Braiding 4 Cores 0.5mm 1.5mm 2.5mm YSLY-CY
Bare Copper Wire RVVP Flexible Electrical Cable Braiding 4 Cores 0.5mm 1.5mm 2.5mm YSLY-CY
Bare Copper Wire RVVP Flexible Electrical Cable Braiding 4 Cores 0.5mm 1.5mm 2.5mm YSLY-CY
Bare Copper Wire RVVP Flexible Electrical Cable Braiding 4 Cores 0.5mm 1.5mm 2.5mm YSLY-CY
Specifications
Brand Name :
JHY CABLE
Model Number :
RVVP cable
Certification :
CCC/ CE/ ISO
Place of Origin :
SHENZHEN CHINA
MOQ :
1000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
70 kilometer/ day
Delivery Time :
5~7 working days
Packaging Details :
100 meters per roll or according to the customer's request.
Conductor :
Stranded pure copper
Size :
4 cores, 1.5mm, 2.5mm
Insulation :
PVC material
Color :
red, blue,green or others
Sheath :
PVC material
Shield :
AL ,TC/AM braiding
Usage :
mechanical equipment,connector.ect
Shape :
round
Description

Bare copper wire braiding 4 cores 0.5mm 1.5mm 2.5mm RVVP flexible cables YSLY-CY

Production Description:

1. Constructure

Product name 300V RVVP shielded flexible cable
Rated voltage 300/300V; 300/500V
Constructions Conductor flexible stranded copper wire
Insulation PVC
Shield AL foil + Tinned copper wire braiding or other braiding
Sheath PVC
Cores 2 to 10 cores
Application These screened cables are used inside as power or control cables for installations and connections on machine tools or static or dynamic apparatus
Max. Operating Temperature 70℃, can be 90℃, 105℃ as per requirement.

2. Product Specifications

Nominal cross-section

(mm2)

Insulation thickness

(mm)

Reference overall diameter

(mm)

Conductor resistance at 20℃

(Ω/km)

Minimum insulation resistance at 70 ℃

(MΩ·km)

Reference weight

(kg/km)
3x0.5 0.6 6.0 39.0 0.012 58.3
3x0.75 0.6 7.3 26.0 0.010 76.9
3x1.0 0.6 8.1 19.5 0.010 87.6
3x1.5 0.7 9.1 13.3 0.009 117.6
3x2.5 0.8 9.8 7.98 0.008 169.1
2x4 0.8 12.7 4.95 0.007 247.7
2x6 0.8 14.3 3.30 0.006 318.7

3. Application

suitable for the connection of household appliances, small power tools, instrumentation and power lighting devices with AC voltages of 450/750V and below

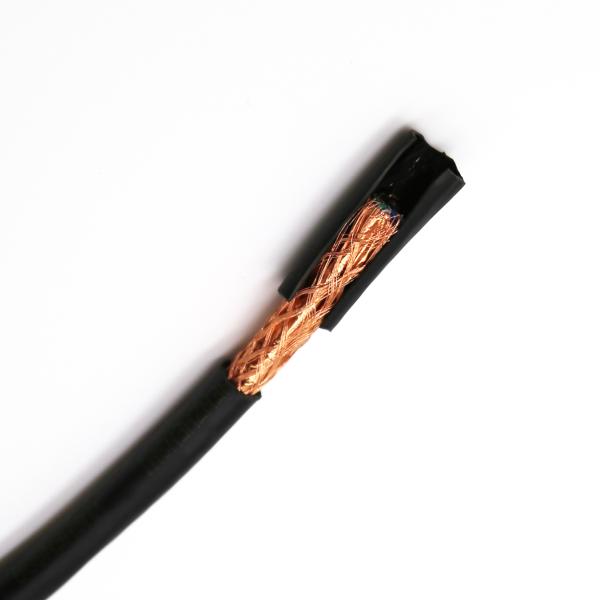

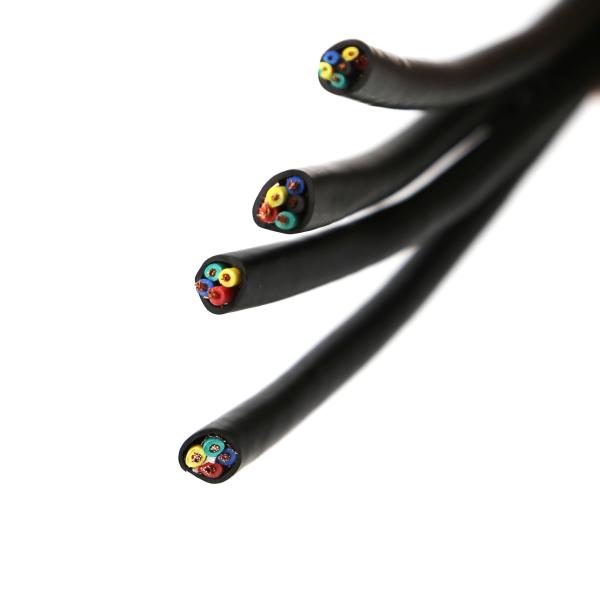

4. Product Image

Bare Copper Wire RVVP Flexible Electrical Cable Braiding 4 Cores 0.5mm 1.5mm 2.5mm YSLY-CY

Bare Copper Wire RVVP Flexible Electrical Cable Braiding 4 Cores 0.5mm 1.5mm 2.5mm YSLY-CY

Bare Copper Wire RVVP Flexible Electrical Cable Braiding 4 Cores 0.5mm 1.5mm 2.5mm YSLY-CY

Bare Copper Wire RVVP Flexible Electrical Cable Braiding 4 Cores 0.5mm 1.5mm 2.5mm YSLY-CY

Product Advantage

Bare Copper Wire RVVP Flexible Electrical Cable Braiding 4 Cores 0.5mm 1.5mm 2.5mm YSLY-CY

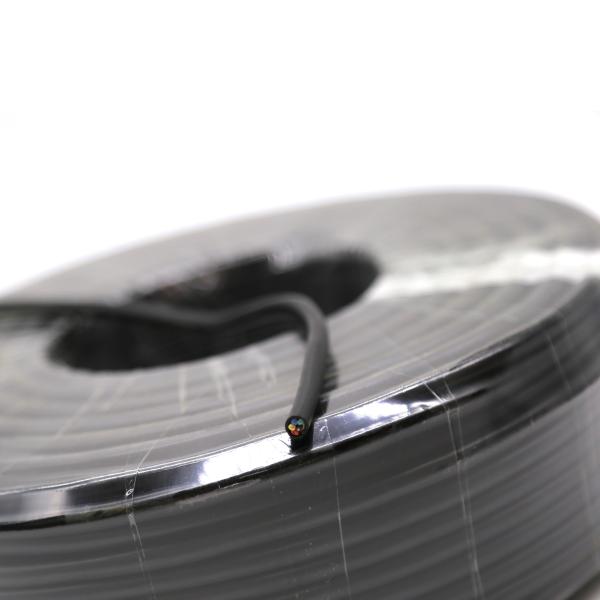

Product Package

Bare Copper Wire RVVP Flexible Electrical Cable Braiding 4 Cores 0.5mm 1.5mm 2.5mm YSLY-CY

5. Product standard

JB/T 8734.5, IEC 60227,BS 6500,BS EN 50525,VDE 0281

6. Company certificate

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
