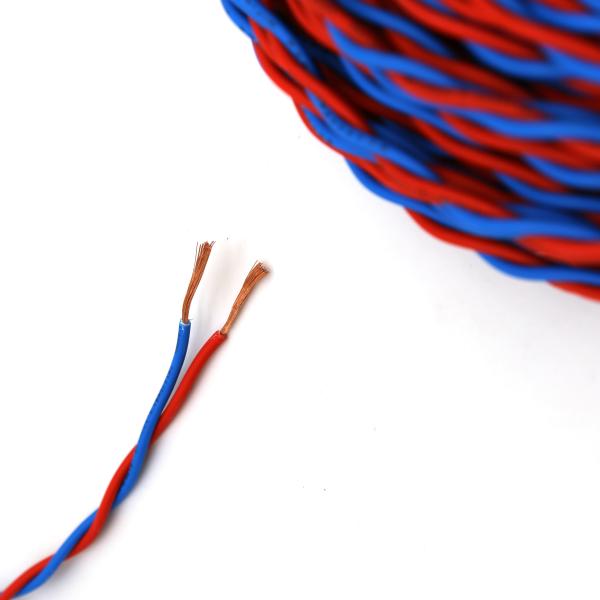

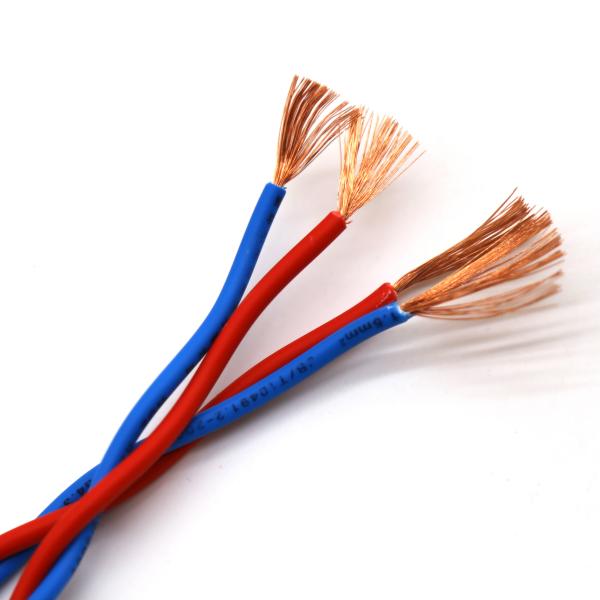

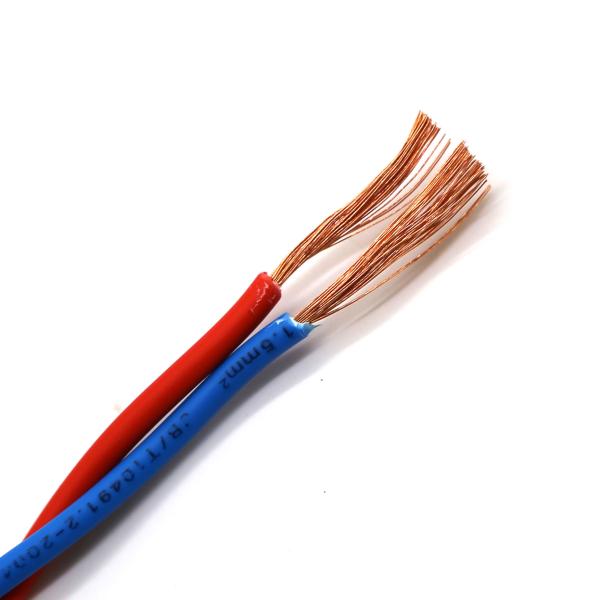

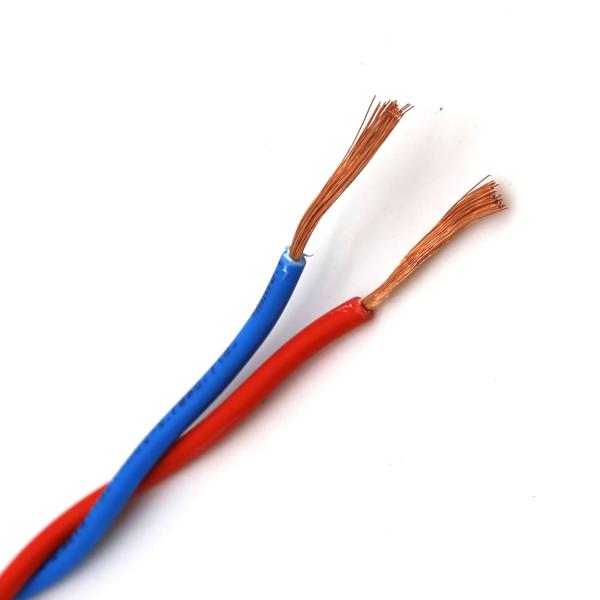

2*1.5 Square Mm PVC Flexible Electrical Cable Oxygen Free Conductor RVS Wire
2*1.5 Square Mm PVC Flexible Electrical Cable Oxygen Free Conductor RVS Wire
2*1.5 Square Mm PVC Flexible Electrical Cable Oxygen Free Conductor RVS Wire
2*1.5 Square Mm PVC Flexible Electrical Cable Oxygen Free Conductor RVS Wire
2*1.5 Square Mm PVC Flexible Electrical Cable Oxygen Free Conductor RVS Wire
2*1.5 Square Mm PVC Flexible Electrical Cable Oxygen Free Conductor RVS Wire
2*1.5 Square Mm PVC Flexible Electrical Cable Oxygen Free Conductor RVS Wire
2*1.5 Square Mm PVC Flexible Electrical Cable Oxygen Free Conductor RVS Wire
Specifications
Brand Name :
JHY CABLE
Model Number :
RVS cable-01
Certification :
RoHS/CE/CCC/CB
Place of Origin :
SHENZHEN CHINA
MOQ :
10 boxs
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000m/day
Delivery Time :
3-8 day
Packaging Details :
100m/roll
Conductor :
OFC/BC
Insulation :
PVC
Type :
Twisted
Color :
Red and Green
Rated voltage :
450/750V
Application :
Lighting
Description

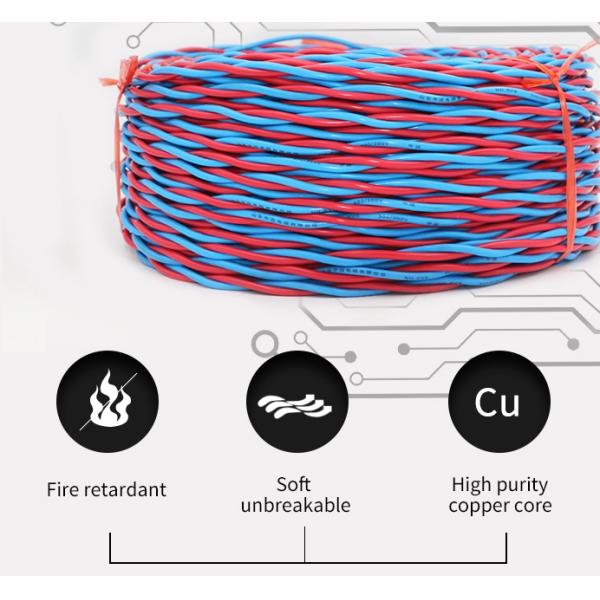

2*1.5 square mm oxygen free conductor RVS wire PVC Flexible Electrical Cable

1. Production Application

1. The products are mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required.

2. As detector line for fire alarm automatic alarm system

3. Suitable for household appliances, small power tools, instrumentation and power lighting. Double white core is used for direct connection to the lamp line; red and blue core is used for fire protection, alarm, etc.; red and white core is used for broadcasting and telephone line; red and black core is used for broadcasting line.

4. Used to connect amplifiers and audio equipment, broadcast systems to transmit audio signals amplified by amplifiers.

2. Company Certificates

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, UL,China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

3. Construction

Conductors:Oxygen free Copper Wire

Insulation : PVC

The special type of fire-retardant, flame-resisting, low-halogen, low-fume and non-halogen as well as acid and alkali proof for these cables can be supplied upon request.

4. CHARACTERISTICS

1. The permissble long-term working temperature of the cable conductor: PVC insulated is 70 °C. During the cable laying, the ambient temperature must be above 0 °C.

2. The permissible bending radius in cable laying and installing.

a). For unarmoured cable, it shall not be less than 6 times of external diameter of cable.

b). For armoured or copper tape screened cable, it shall not be less than 12 times of the external diameter of cable.

c). For the flexible cable with screen layers, it shall not be less than 6 times of the external diameter of cable.

5.Type & Special

No×Area of conductor

mm²

 Upper limit of average outer diameter mm

Max conductor

resistance

at 20℃

Ω/km

Min insulation resistance

at 70℃

Ω/km

 Recommended value of current carrying capacity A Reference weight kg / km
2*0.5 6.0 39.0 0.016 9 22
2*0.75 6.2 26.0 0.014 12 29
2*1 6.6 19.5 0.013 14 34
2*1.5 7.2 13.3 0.012 18 46
2*2.5 8.2 7.98 0.0095 25 66
2*4 9.5 4.95 0.0079 33 96
2*6 11.6 3.30 0.0081 42 145

Lead time:
Quantity(box) 10 100
EST.time(day) 3-5 5-15
Product Describe:
2*1.5 Square Mm PVC Flexible Electrical Cable Oxygen Free Conductor RVS Wire
2*1.5 Square Mm PVC Flexible Electrical Cable Oxygen Free Conductor RVS Wire

2*1.5 Square Mm PVC Flexible Electrical Cable Oxygen Free Conductor RVS Wire

Company Contact Information:

OUR SERVICE 2*1.5 Square Mm PVC Flexible Electrical Cable Oxygen Free Conductor RVS Wire

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
