IEC 60227 3x1.5mm2 3x2.5mm2 3183Y flexible copper double PVC 3 cores RVV building cable
IEC 60227 3x1.5mm2 3x2.5mm2 3183Y flexible copper double PVC 3 cores RVV building cable
IEC 60227 3x1.5mm2 3x2.5mm2 3183Y flexible copper double PVC 3 cores RVV building cable
IEC 60227 3x1.5mm2 3x2.5mm2 3183Y flexible copper double PVC 3 cores RVV building cable
IEC 60227 3x1.5mm2 3x2.5mm2 3183Y flexible copper double PVC 3 cores RVV building cable
IEC 60227 3x1.5mm2 3x2.5mm2 3183Y flexible copper double PVC 3 cores RVV building cable
IEC 60227 3x1.5mm2 3x2.5mm2 3183Y flexible copper double PVC 3 cores RVV building cable
IEC 60227 3x1.5mm2 3x2.5mm2 3183Y flexible copper double PVC 3 cores RVV building cable
Specifications
Brand Name :
JHY CABLE
Model Number :
RVV cable
Certification :
CCC/ CE/ ISO
Place of Origin :
SHENZHEN CHINA
MOQ :
1000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
70 kilometer/ day
Delivery Time :
5~7 working days
Packaging Details :
100 meters per roll or according to the customer's request.
Conductor :
Copper
Conductor Type :
Stranded
Core :
3C
Insulation :
PVC insulation
Sheath :
PVC jacket
Rated Voltage :
300/300V, 300/500V
Operating Temperature :
-15℃-70℃
Packing :
100m/roll
Application :
household, construction
Description

IEC 60227 3x1.5mm2 3x2.5mm2 3183Y flexible copper double PVC 3 cores RVV building cable

Production Description:

1. Introduce of H05VV-F Cable

RVV cable is called copper-core PVC insulated PVC sheathed soft wire, also known as light PVC sheathed soft wire, commonly known as soft sheathed wire, is a kind of sheathed wire. The rated voltage is 300V/500V, and the number of cores is divided from 2 cores to 24 cores according to the national standard. Two or more copper cores are twisted to form a cable, the outer direction of the strangulation direction is right.

2. The meaning of the RVV letter

  • The letter R stands for soft wire;
  • The letter V stands for insulator polyvinyl chloride (PVC);

RVV cable is the most commonly used cable in weak electric system. The core cable has two or more core wires. There is an PVC sheath outside, and there is no special requirement for the arrangement of core wires.

3. Product Specifications

Nominal cross-section

(mm2)

Conductor construction

(No./mm)

Insulation thickness

(mm)

Sheath thickness

(mm)

Upper limit of O.D.

(mm)

Minimum insulation resistance at 70 ℃

(MΩ·km)

Conductor resistance at 20℃

(Ω/km)
3x0.75 24/0.20 0.6 0.8 8.0 0.011 26.0
3x1.0 32/0.20 0.6 0.8 8.4 0.010 19.5
3x1.5 30/0.25 0.7 0.9 9.8 0.010 13.3
3x2.5 49/0.25 0.8 1.1 11.5 0.009 7.98

4. Application

Ordinary duty PVC cable for use in domestic appliances, kitchens and offices. For use with light portable appliances such as radios, table lamps and office equipment. Generally unsuitable for outdoor use or industrial applications.

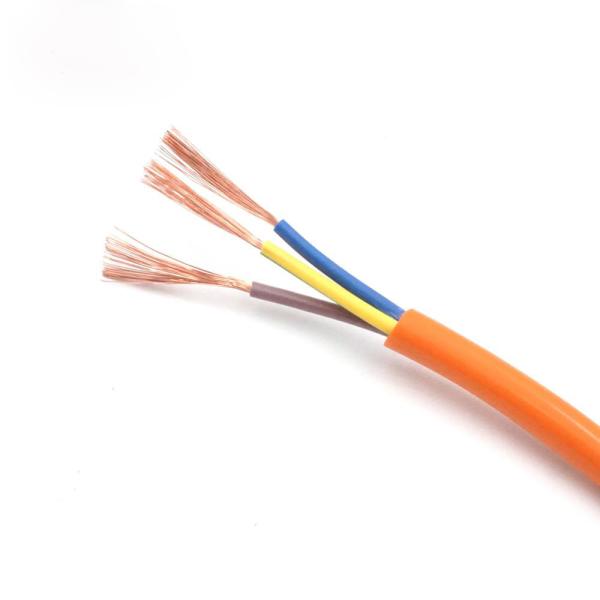

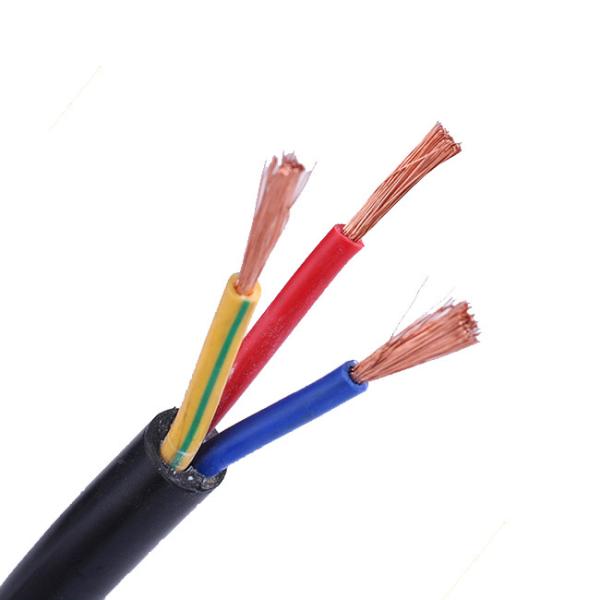

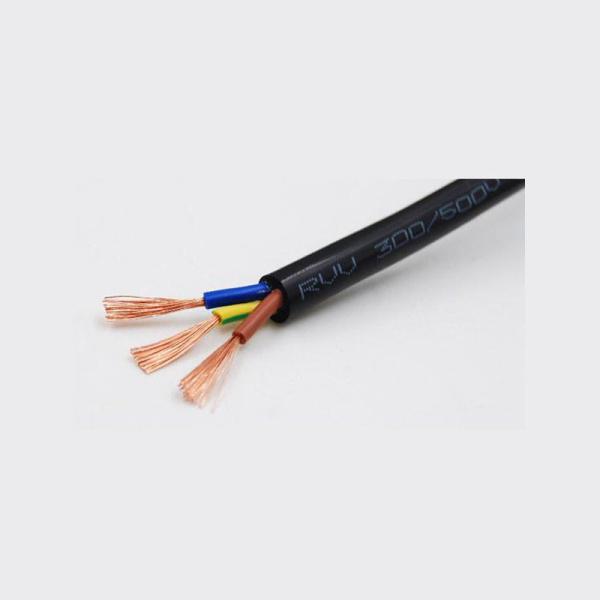

5. Product Image

IEC 60227 3x1.5mm2 3x2.5mm2 3183Y flexible copper double PVC 3 cores RVV building cable

IEC 60227 3x1.5mm2 3x2.5mm2 3183Y flexible copper double PVC 3 cores RVV building cable

Product Advantage

IEC 60227 3x1.5mm2 3x2.5mm2 3183Y flexible copper double PVC 3 cores RVV building cable

Product Package

IEC 60227 3x1.5mm2 3x2.5mm2 3183Y flexible copper double PVC 3 cores RVV building cable

6. Product standard

GB/T 5023, IEC 60227,BS EN 50525,VDE 0281

7. Company certificate

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

8. Company information

Company Contact Information:

OUR SERVICE IEC 60227 3x1.5mm2 3x2.5mm2 3183Y flexible copper double PVC 3 cores RVV building cable

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Email: lynnzeng@sz-hy.cn

Website: Http://www.sz-hy.cn
Website on alibaba.com: sz-jhy.en.alibaba.com

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
