2192Y multi-cores copper PVC insulation and flat PVC jacket H05VVH2-F RVVB cables
2192Y multi-cores copper PVC insulation and flat PVC jacket H05VVH2-F RVVB cables
2192Y multi-cores copper PVC insulation and flat PVC jacket H05VVH2-F RVVB cables
2192Y multi-cores copper PVC insulation and flat PVC jacket H05VVH2-F RVVB cables
2192Y multi-cores copper PVC insulation and flat PVC jacket H05VVH2-F RVVB cables
2192Y multi-cores copper PVC insulation and flat PVC jacket H05VVH2-F RVVB cables
Specifications
Brand Name :
JHY CABLE
Model Number :
RVVB cable
Certification :
CCC/ CE/ ISO
Place of Origin :
SHENZHEN CHINA
MOQ :
3000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
70 kilometer/ day
Delivery Time :
7~10 working days
Packaging Details :
100 meters per roll or according to the customer's request.
Model :
RVVB
Conductor :
BC
Conductor Type :
Stranded copper
Core :
2 core
Insulation :
PVC insulation
Sheath :
PVC sheath
Color :
Red, Black or customized
Rated Voltage :
300/500V
Packing :
100m/roll, paper reel or plastic shrink and plastic film
Application :
Overhead, Indoor
Description

2192Y multi-cores copper PVC insulation and flat PVC jacket H05VVH2-F RVVB cables

Production Description:

1. Product characteristic of RVVB cable

Conductor Plain annealed copper wire ,strand.
Construction copper wire
insulation jacket
PVC sheath
Color black, white, or assorted upon request .
Application these cables are suitable for surface wiring, indoor or outdoor .
OEM/ODM available
Sample freight charge prepaid

2. Product technical parameters

Nominal cross-section

(mm2)

Conductor construction

(No./mm)

Insulation thickness

(mm)

Sheath thickness

(mm)

Upper limit of O.D.

(mm)

Conductor resistance at 20℃

(Ω/km)

Reference weight

(kg/km)
2x0.75 2*24/0.20 0.6 0.8 4.0x6.4 26.0 37
2x1.0 2*32/0.20 0.6 0.8 4.2x6.8 19.5 61.1
2x1.5 2*30/0.25 0.7 0.8 4.6x7.6 13.3 85
2x2.5 2*49/0.25 0.8 1.0 5.7x9.4 7.98 128
3x0.75 3*24/0.20 0.6 0.8 4.0x8.8 26 65
3x1.0 3*32/0.20 0.6 0.8 4.2x9.1 19.5 77
3x1.5 3*30/0.25 0.7 0.8 4.7x10.5 13.3 104
3x2.5 3*49/0.25 0.8 1.0 5.9x13.3 7.98 159

3. Features of RVVB cable

  • Conductors multiply annealing bare copper stranding.
  • Rated Voltage:Uo/U is 300/500v.
  • Permitted Working Temperature for Longer time:No MoreThan 70'C

4. Application

General purpose indoor and outdoor, electrical tools, washing machines and vacuum cleaners, etc.

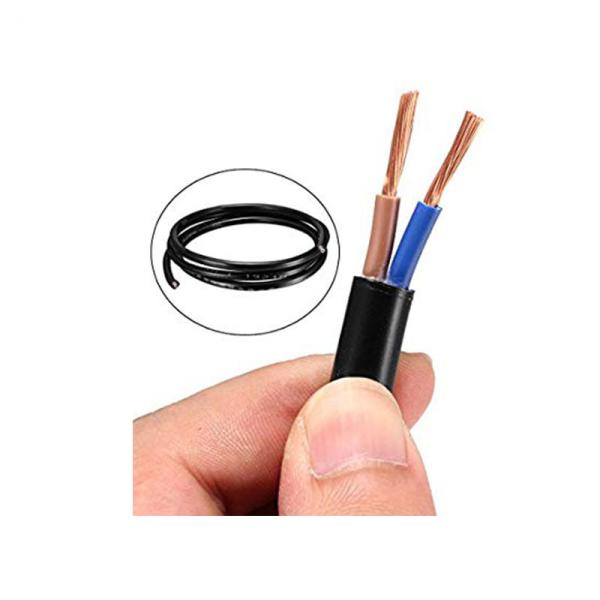

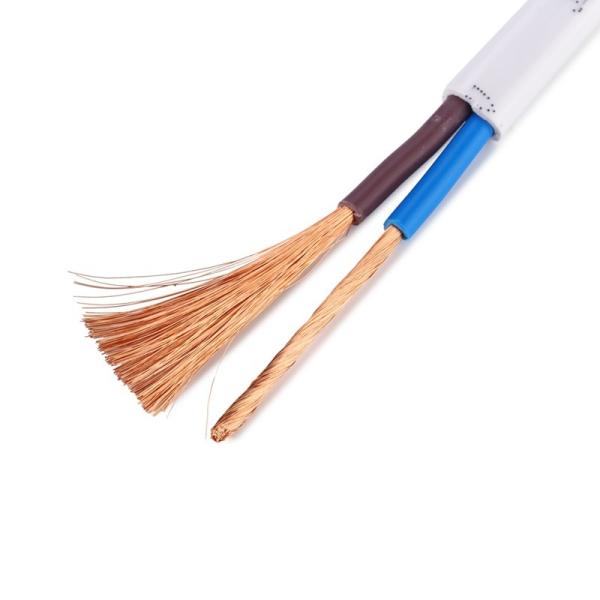

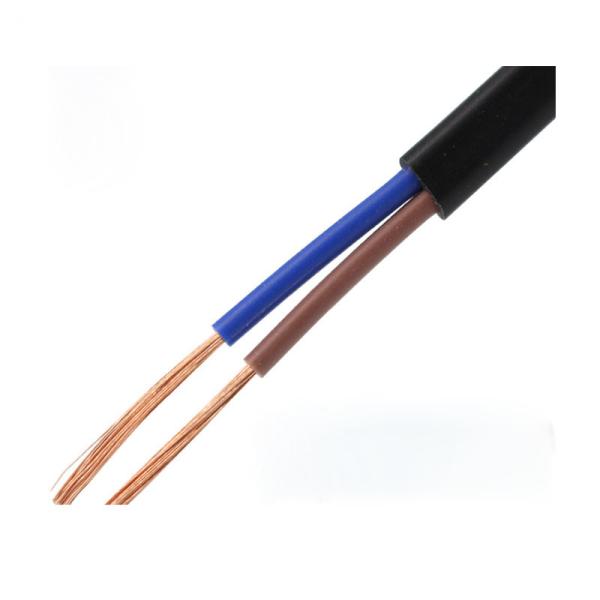

5. Product Image

2192Y multi-cores copper PVC insulation and flat PVC jacket H05VVH2-F RVVB cables

2192Y multi-cores copper PVC insulation and flat PVC jacket H05VVH2-F RVVB cables

Product Advantage

2192Y multi-cores copper PVC insulation and flat PVC jacket H05VVH2-F RVVB cables

Product Package

2192Y multi-cores copper PVC insulation and flat PVC jacket H05VVH2-F RVVB cables

6. Product standard

GB/T 5023, IEC 60227,BS EN 50525,VDE 0281

7. Company certificate

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

8. Company information

Company Contact Information:

OUR SERVICE 2192Y multi-cores copper PVC insulation and flat PVC jacket H05VVH2-F RVVB cables

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Email: lynnzeng@sz-hy.cn

Website: Http://www.sz-hy.cn
Website on alibaba.com: sz-jhy.en.alibaba.com

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
