Household electric wire Twin flat flexible PVC insulated and sheathed RVVB cables
Household electric wire Twin flat flexible PVC insulated and sheathed RVVB cables
Household electric wire Twin flat flexible PVC insulated and sheathed RVVB cables
Household electric wire Twin flat flexible PVC insulated and sheathed RVVB cables
Household electric wire Twin flat flexible PVC insulated and sheathed RVVB cables
Household electric wire Twin flat flexible PVC insulated and sheathed RVVB cables
Specifications
Brand Name :
JHY CABLE
Model Number :
RVVB cable
Certification :
CCC/ CE/ ISO
Place of Origin :
SHENZHEN CHINA
MOQ :
3000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
70 kilometer/ day
Delivery Time :
7~10 working days
Packaging Details :
100 meters per roll or according to the customer's request.
Conductor :
Pure copper
Conductor Type :
Stranded
Size :
1.5, 2.5, 4, 6, 10mm2
Insulation :
PVC insulation
Sheath :
PVC sheath
Color :
Black, white, grey, or other colours.
Rated Voltage :
300/500V
Packing :
100m/roll
Application :
household, construction
Description

Household electric wire Twin flat flexible PVC insulated and sheathed RVVB cables

Production Description:

1. Product characteristic of RVVB cable

  • Conductor : Class 5, stranded copper wire .
  • Insulation Material : PVC (Polyvinyl chloride).
  • Sheath Mateial : PVC (Polyvinyl chloride).
  • Sheath Color : Black, white, grey, or other colours.
  • Rating voltage : 300/300V(U0/U) .
  • Minimum Bending Radius : Fixed: 8 x overall diamete .

2. Product technical parameters

Nominal cross-section

(mm2)

Conductor construction

(No./mm)

Insulation thickness

(mm)

Sheath thickness

(mm)

Upper limit of O.D.

(mm)

Conductor resistance at 20℃

(Ω/km)

Reference weight

(kg/km)
2x0.75 2*24/0.20 0.6 0.8 4.0x6.4 26.0 37
2x1.0 2*32/0.20 0.6 0.8 4.2x6.8 19.5 61.1
2x1.5 2*30/0.25 0.7 0.8 4.6x7.6 13.3 85
2x2.5 2*49/0.25 0.8 1.0 5.7x9.4 7.98 128
3x0.75 3*24/0.20 0.6 0.8 4.0x8.8 26 65
3x1.0 3*32/0.20 0.6 0.8 4.2x9.1 19.5 77
3x1.5 3*30/0.25 0.7 0.8 4.7x10.5 13.3 104
3x2.5 3*49/0.25 0.8 1.0 5.9x13.3 7.98 159

3. Application

Flexible twin flat PVC insulated PVC sheathed RVVB light duty cable for use in domestic premises, kitchens and offices. For use as pendant light drops and light supply leads.

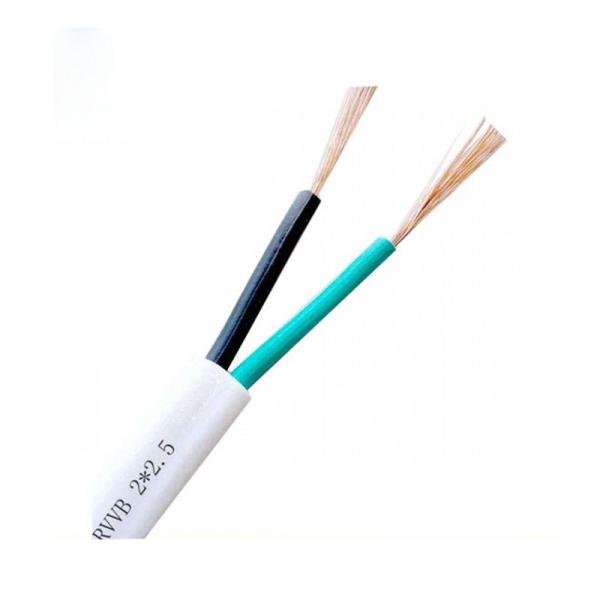

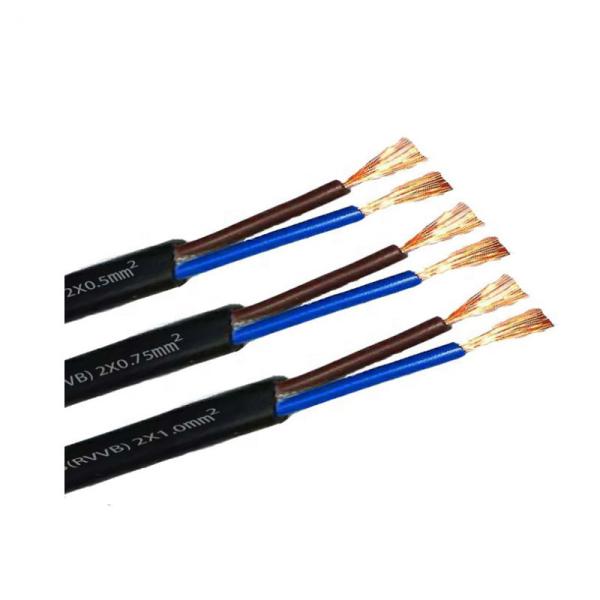

4. Product Image

Household electric wire Twin flat flexible PVC insulated and sheathed RVVB cables

Household electric wire Twin flat flexible PVC insulated and sheathed RVVB cables

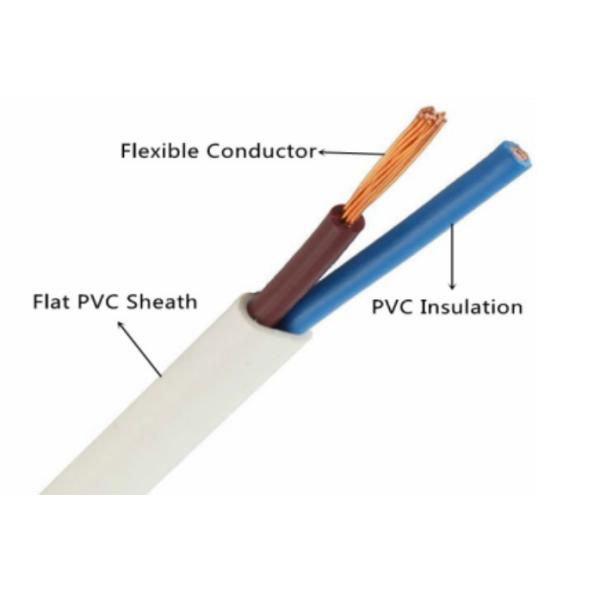

Product Advantage

Household electric wire Twin flat flexible PVC insulated and sheathed RVVB cables

Product Package

Household electric wire Twin flat flexible PVC insulated and sheathed RVVB cables

5. Product standard

GB/T 5023, IEC 60227,BS EN 50525,VDE 0281

6. Company certificate

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
