Specifications
Brand Name :
JHY CABLE
Model Number :
BVV cable
Certification :
CCC/ CE/ CB/ ISO
Place of Origin :
SHENZHEN CHINA
MOQ :
1000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 kilometer/ day
Delivery Time :
3~5 working days
Packaging Details :
100 meters per roll or according to the customer's request.
Conductor :
bare copper
Conductor Type :
Solid or Strand
Type :
insulated, low voltage
Insulation :
PVC Insulation Cable
Color :
Red, Green, Yellow, Blue, Black or others
Rated Voltage :
300/500V
Operating Temperature :
-15℃-70℃
Application :
Overhead, Housing Used
Description

Single core PVC double insulated 6181Y electrical BVV wire and NYM cable

Production Description:

1. Product specifications

  • Bare stranded or solid copper conductor
  • Flame retardant colour-coded PVC insulation
  • Flame retardant PVC jacket

Nominal Crosssection

(mm2)

Structure

(No/mm)

Reference overall diameter

(mm)

Recommend ampacity

(A)
0.75 1/0.98 3.8 17
1.0 1/1.13 3.9 20
1.5 1/1.38 4.4 25
1.5 7/0.52 4.6 25
2.5 1/1.78 5.0 34
2.5 7/0.67 5.2 34
4.0 1/2.25 5.7 44
4.0 7/0.85 6.0 44
6.0 1/2.76 6.2 58
6.0 7/1.04 6.5 58
10 7/1.35 7.9 79

2. Product features

  • Rated voltage: 300 / 500V
  • Temperature range: -15 ° C to + 90 ° C
  • Minimum bending radius: 5 x overall diameter
  • Flame retardant: IEC 60332.1
  • Insulation resistance: 20 MΩ x km

3. Application

  • For fixed wiring
  • Use in higher protection required or humid environment
  • Can be placed into trunk and conduit

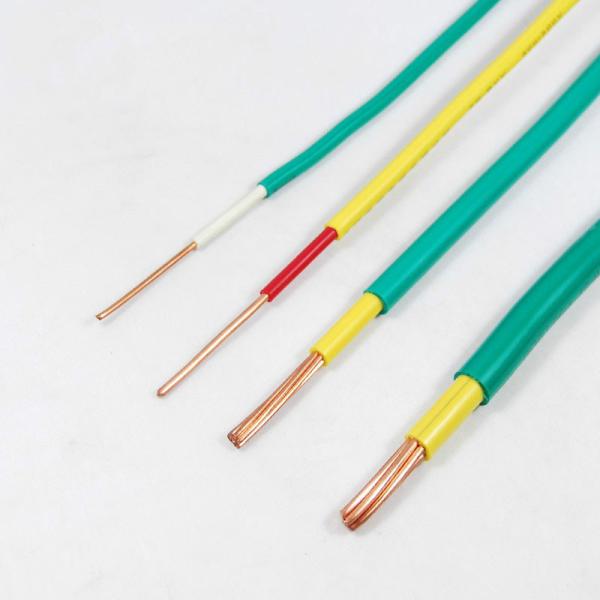

4. Product Image

Single core PVC double insulated 6181Y electrical BVV wire and NYM cableSingle core PVC double insulated 6181Y electrical BVV wire and NYM cable

Single core PVC double insulated 6181Y electrical BVV wire and NYM cable

Product Advantage

Single core PVC double insulated 6181Y electrical BVV wire and NYM cable

Product Package

Single core PVC double insulated 6181Y electrical BVV wire and NYM cable

5. Product standard

GB/T 5023, IEC 60227,TIS 11 part 3-2553
