AS/NZS5000.2 450/750V copper wire PVC insulated PVC sheathed Flat TPS and Earth BVVB electrical cable
AS/NZS5000.2 450/750V copper wire PVC insulated PVC sheathed Flat TPS and Earth BVVB electrical cable
AS/NZS5000.2 450/750V copper wire PVC insulated PVC sheathed Flat TPS and Earth BVVB electrical cable
AS/NZS5000.2 450/750V copper wire PVC insulated PVC sheathed Flat TPS and Earth BVVB electrical cable
AS/NZS5000.2 450/750V copper wire PVC insulated PVC sheathed Flat TPS and Earth BVVB electrical cable
AS/NZS5000.2 450/750V copper wire PVC insulated PVC sheathed Flat TPS and Earth BVVB electrical cable
AS/NZS5000.2 450/750V copper wire PVC insulated PVC sheathed Flat TPS and Earth BVVB electrical cable
AS/NZS5000.2 450/750V copper wire PVC insulated PVC sheathed Flat TPS and Earth BVVB electrical cable
Specifications
Brand Name :
JHY CABLE
Model Number :
BVVB cable
Certification :
CCC/ CE/ CB/ ISO
Place of Origin :
SHENZHEN CHINA
MOQ :
5000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 kilometer/ day
Delivery Time :
7~15 working days
Packaging Details :
100 meters per roll or according to the customer's request.
Conductor :
Solid or Stranded bare copper
No of Core :
2C+E, 3C+E
Insulation :
V-90PVC
Color :
Red, Black , Green-yellow
Sheath :
3V-90PVC
Sheath Color :
white
Rated Voltage :
450/750V
Operating Temperature :
-15℃-90℃
Standard :
AS/NZS 5000.2
Application :
Construction
Description

AS/NZS5000.2 450/750V copper wire PVC insulated PVC sheathed Flat TPS and Earth BVVB electrical cable

Production Description:

1. Product Structure

Constructions Conductor Soild or Strand Copper Wire
Insulation V-90PVC
Sheath 3V-90PVC
Core Color Red, Black and Yellow/Green
Standard AS/NZS 5000.2
Application These cables are used for general wiring, unenclosed, enclosed in conduit, buried direct or in underground ducts for domestic, commercial and industrial aplications where not subject to mechanical damage.

2. Product Specification

Nominal Crosssection

(mm2)

Insulation thickness

(mm)

Jacket thickness

(mm)

Earth conductor

(mm2)

 Type
1 0.6 0.9 1 2C+E
1.5 0.6 0.9 1.5 2C+E
2.5 0.7 1 2.5 2C+E
2.5 0.7 1 2.5 2C+E
4 0.8 1.1 2.5 2C+E
6 0.8 1.1 2.5 2C+E
1.5 0.6 0.9 1.5 3C+E
1 0.6 1 / 2C
2.5 0.7 1.1 / 2C
4 0.8 0.8 / 2C

3. Features of Flat TPS Cable

  • Operating Temperature: max 70C
  • Min Bending radius: 6D
  • Rated voltage: 450V/750V
  • Nominal sectional (size): 1.0mm, 1.5mm, 2.5mm, 4.0mm, 6.0mm2, 10mm, 16mmSq.
  • Copper conductor PVC insulated flexibe cable (electric wire)
  • Keeping working temperature under 70C for Long-range operation.

4. Application

This cable are suited for cabling from the Fire Alarm, OWS and EMIS panels to detectors, speakers, horns, strobes, field modules, etc. TPS cables are PVC insulated and have an "Easy Tear" outer sheath making these cables easy to strip and terminate.

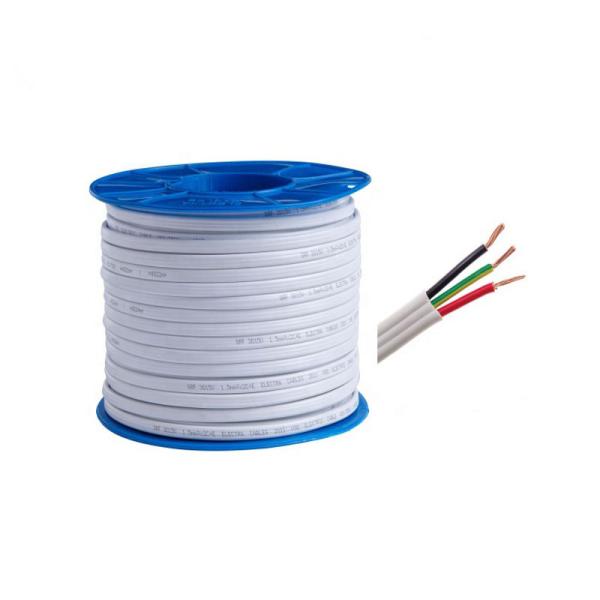

5. Product Image

AS/NZS5000.2 450/750V copper wire PVC insulated PVC sheathed Flat TPS and Earth BVVB electrical cable

AS/NZS5000.2 450/750V copper wire PVC insulated PVC sheathed Flat TPS and Earth BVVB electrical cable

AS/NZS5000.2 450/750V copper wire PVC insulated PVC sheathed Flat TPS and Earth BVVB electrical cable

Product Advantage

AS/NZS5000.2 450/750V copper wire PVC insulated PVC sheathed Flat TPS and Earth BVVB electrical cable

Product Package

AS/NZS5000.2 450/750V copper wire PVC insulated PVC sheathed Flat TPS and Earth BVVB electrical cable

6. Product standard

GB/T 5023, IEC 60227,TIS 11 part 3-2553

7. Company certificate

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

8. Company information

Company Contact Information:

OUR SERVICE AS/NZS5000.2 450/750V copper wire PVC insulated PVC sheathed Flat TPS and Earth BVVB electrical cable

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Email: lynnzeng@sz-hy.cn

Website: Http://www.sz-hy.cn
Website on alibaba.com: sz-jhy.en.alibaba.com

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
