H07V-K NYAFsingle core flexible copper wire PVC insulated non-sheathed RV electrical cable
H07V-K NYAFsingle core flexible copper wire PVC insulated non-sheathed RV electrical cable
H07V-K NYAFsingle core flexible copper wire PVC insulated non-sheathed RV electrical cable
H07V-K NYAFsingle core flexible copper wire PVC insulated non-sheathed RV electrical cable
H07V-K NYAFsingle core flexible copper wire PVC insulated non-sheathed RV electrical cable
H07V-K NYAFsingle core flexible copper wire PVC insulated non-sheathed RV electrical cable
H07V-K NYAFsingle core flexible copper wire PVC insulated non-sheathed RV electrical cable
H07V-K NYAFsingle core flexible copper wire PVC insulated non-sheathed RV electrical cable
Specifications
Brand Name :
JHY CABLE
Model Number :
RV cable
Certification :
CCC/ CE/ CB/ ISO
Place of Origin :
SHENZHEN CHINA
MOQ :
1000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 kilometer/ day
Delivery Time :
3~5 working days
Packaging Details :
100 meters per roll or according to the customer's request.
Conductor :
Stranded bare copper
Type :
flexible RV cable
Insulation :
PVC insulation
Color :
red, yellow, blue, green, yellow/green , or others.
Jacket :
non-sheath
Rated Voltage :
300/500V, 450/750V
Operating Temperature :
-15℃-70℃
Application :
housing wire, construction
Description

H07V-K NYAFsingle core flexible copper wire PVC insulated non-sheathed RV electrical cable

Production Description:

1. Product Structure

Constructions Conductor Plain annealed copper wire, flexible, Class 5
No. of core single core
Size 0.5, 0.75, 1.5, 2.5, 4, 6......
Insulation
RoHS environmental PVC
Sheath non-sheath
Voltage 300/500V or 450/750V
Package 100m/roll
Standard IEC 60227 , GB/T 5023.3

2. Product Specifications

Nominal cross-section

(mm2)

Structure

(No./mm)

Reference Weight

(kg/km)

Appeoxiamate O.D.

(mm)

Maximum resitance at 20℃

(Ω/km)
2.5 19/0.41 34.7 4.2 7.41
4 19/0.52 51.4 4.8 4.61
6 19/0.64 73.6 5.6 3.08
10 49/0.52 129 7.6 1.83
16 49/0.64 186 8.8 1.2
25 98/0.58 306 11 1.15
35 133/0.58 403 12.5 0.868
50 133/0.68 553 14.5 0.641

3. Features of RV cable

1). Rated voltage: 450/750V

Soaked one hour, Wire subjected to alternating current 50Hz 250V (450 / 750V), 2000V (300 / 500V) voltage test 5 minutes without breakdown.

2). Operating temperature:

normal operating temperature does not exceed the maximum 70 ℃ .

3). Bending radius

For the Cable whose outer diameter (D) less than 25mm are not less than 4D; For the cable whose outer diameter (D) >= 25mm,the bending radius should not less than 6 D.

4. Application

The products is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances like lighting, electronic equipment, instrument and communication equipment with rated voltage 450/750V or less.

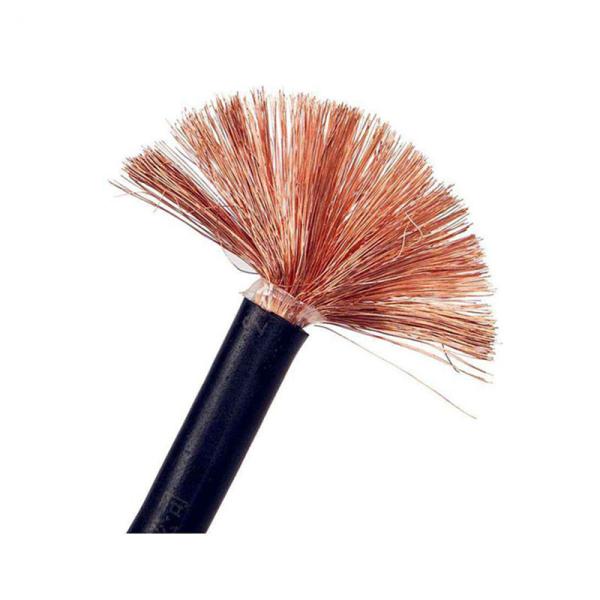

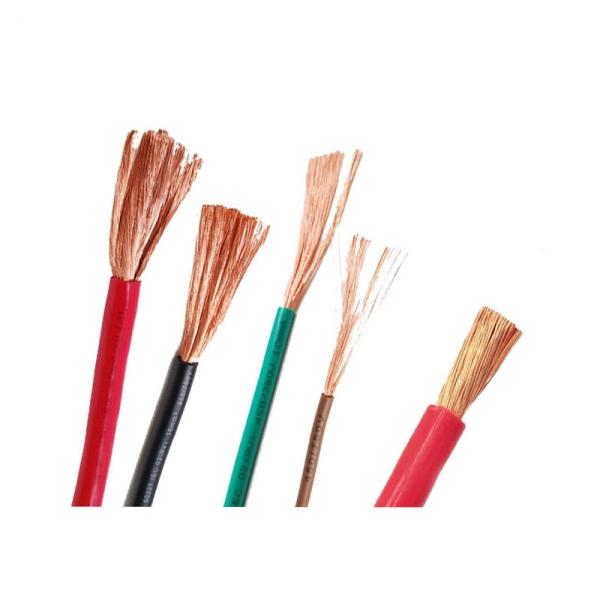

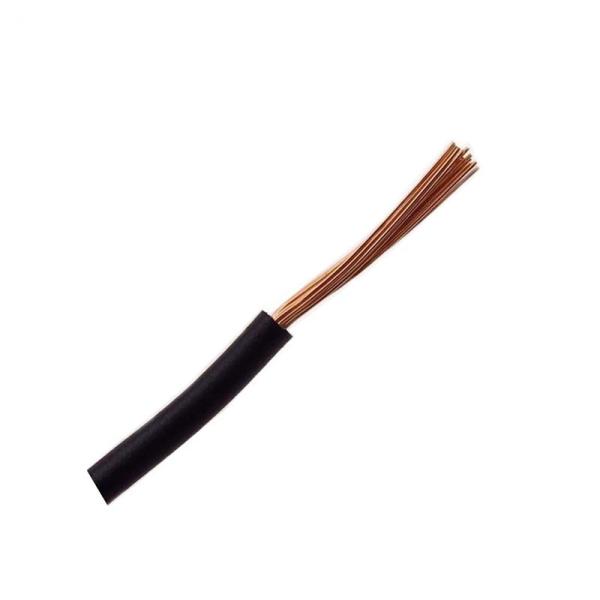

5. Product Image

H07V-K NYAFsingle core flexible copper wire PVC insulated non-sheathed RV electrical cable

H07V-K NYAFsingle core flexible copper wire PVC insulated non-sheathed RV electrical cable

H07V-K NYAFsingle core flexible copper wire PVC insulated non-sheathed RV electrical cable

Product Advantage

H07V-K NYAFsingle core flexible copper wire PVC insulated non-sheathed RV electrical cable

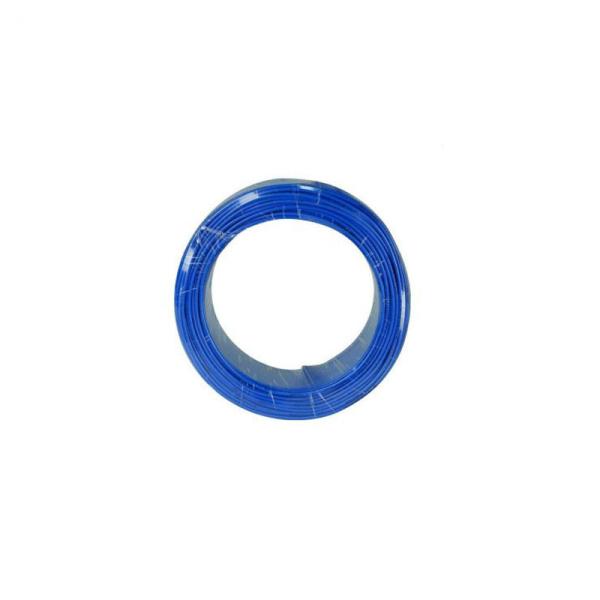

Product Package

H07V-K NYAFsingle core flexible copper wire PVC insulated non-sheathed RV electrical cable

6. Product standard

GB/T 5023, IEC 60227,BS EN 50525,VDE 0281

7. Company certificate

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
