Single core bare copper PVC insulated colorful electrical house wire cables BVR cable
Single core bare copper PVC insulated colorful electrical house wire cables BVR cable
Single core bare copper PVC insulated colorful electrical house wire cables BVR cable
Single core bare copper PVC insulated colorful electrical house wire cables BVR cable
Single core bare copper PVC insulated colorful electrical house wire cables BVR cable
Single core bare copper PVC insulated colorful electrical house wire cables BVR cable
Single core bare copper PVC insulated colorful electrical house wire cables BVR cable
Single core bare copper PVC insulated colorful electrical house wire cables BVR cable
Specifications
Brand Name :
JHY CABLE
Model Number :
BVR cable
Certification :
CCC/ CE/ CB/ ISO
Place of Origin :
SHENZHEN CHINA
MOQ :
1000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 kilometer/ day
Delivery Time :
3~5 working days
Packaging Details :
100 meters per roll or according to the customer's request.
Conductor :
OFC copper conductor
Conductor Type :
Strand
Insulation :
PVC
Color :
Red,Yellow, Blue, Black or others
Rated Voltage :
450/750V
Operating Temperature :
-15℃-70℃
Package :
100 meters/roll
Application :
House construction
Description

Single core bare copper PVC insulated colorful electrical house wire cables BVR cable

Production Description:

1. Cable Structure of H07V-R cable

Conductor Material Pure annealed copper wires, class 2 solid, GB/T 5023, IEC 60227
Insulation Material PVC Insulation
Sheath Material Non-sheath
Insulation Colour blue, red, yellow, black, green, yellow/green, or others.
Rated Voltage

<1.5mm² :300/500V

≥1.5mm²:450/750V
Working Temperature -15 to +70 ℃
Production Standard GB/T 5023, IEC 60227,TIS 11 part 3-2553

2. Techinical Paremeters of H07V-R cable
  • Conductor: Strand Copper, class 2
  • Test Voltage: 2500V
  • Max. Conductor temperature: 70 º C
  • Short-circuit max. Conductor temperature: 160°C
  • Insulation resistance: 10 MΩ x km

3. Detailed Specifications of H07V-R cable

Nominal cross-section

(mm2)

Insulation Nominal Thickness

(mm)

Nominal Overall Diameter

(mm)

Nominal Weight

(kg/km)
1.5 0.7 3.3 23
2.5 0.8 3.9 35
4 0.8 4.4 51
6 0.8 4.9 71
10 1.0 7.0 120
16 1.0 8.0 170
25 1.2 10.0 260

4. Application

6491X Cable H07V-R solid copper wire and cables issuitable for power and lighting circuits and building wiring. The cable is intended for use insemi-flush exposed conduits andembedded conduits as well as in closedinstallation ducts,and is ideal for the internal wiring of appliances.

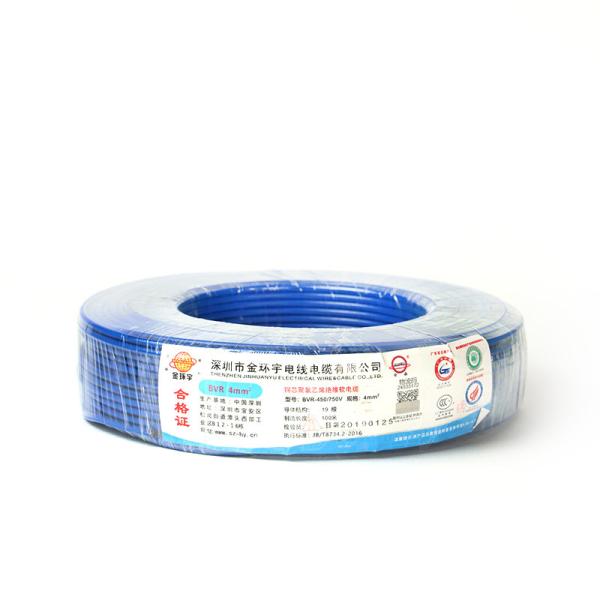

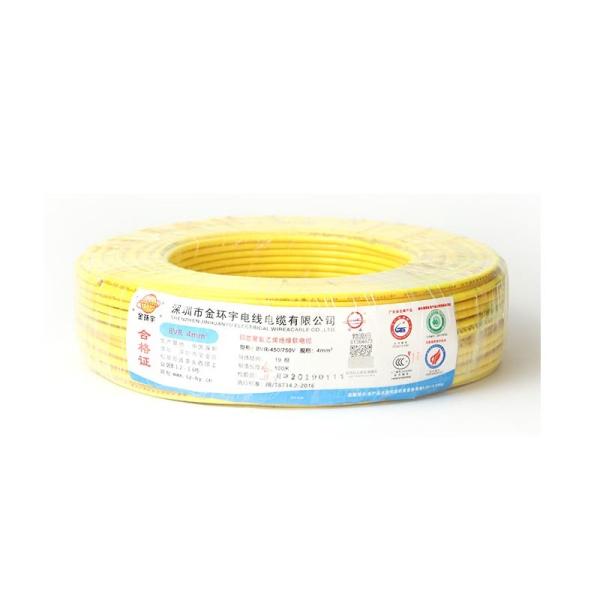

5. Product Image

Single core bare copper PVC insulated colorful electrical house wire cables BVR cable

Single core bare copper PVC insulated colorful electrical house wire cables BVR cable

Single core bare copper PVC insulated colorful electrical house wire cables BVR cable

Product Advantage

Single core bare copper PVC insulated colorful electrical house wire cables BVR cable

Product Package

Single core bare copper PVC insulated colorful electrical house wire cables BVR cable

6. Product standard

GB/T 5023, IEC 60227,TIS 11 part 3-2553

7. Company certificate

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

8. Company information

Company Contact Information:

OUR SERVICE Single core bare copper PVC insulated colorful electrical house wire cables BVR cable

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Email: lynnzeng@sz-hy.cn

Website: Http://www.sz-hy.cn
Website on alibaba.com: sz-jhy.en.alibaba.com

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
