Copper Conductor House Wiring Electrical Cable 1.5mm-6mm2 H07V-R Electric Wire
Copper Conductor House Wiring Electrical Cable 1.5mm-6mm2 H07V-R Electric Wire
Copper Conductor House Wiring Electrical Cable 1.5mm-6mm2 H07V-R Electric Wire
Copper Conductor House Wiring Electrical Cable 1.5mm-6mm2 H07V-R Electric Wire
Copper Conductor House Wiring Electrical Cable 1.5mm-6mm2 H07V-R Electric Wire
Copper Conductor House Wiring Electrical Cable 1.5mm-6mm2 H07V-R Electric Wire
Copper Conductor House Wiring Electrical Cable 1.5mm-6mm2 H07V-R Electric Wire
Copper Conductor House Wiring Electrical Cable 1.5mm-6mm2 H07V-R Electric Wire
Specifications
Brand Name :
JHY CABLE
Model Number :
H07V-R cable
Certification :
CCC/ CE/ CB/ ISO
Place of Origin :
SHENZHEN CHINA
MOQ :
1000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 kilometer/ day
Delivery Time :
3~5 working days
Packaging Details :
100 meters per roll or according to the customer's request.
Conductor :
Plain annealed copper wire
Conductor Type :
Strand
Insulation :
PVC Insulation
Color :
Red, Green, Yellow, Blue, Black or others
Rated Voltage :
450/750V
Operating Temperature :
-15℃-70℃
Package :
100 meters/roll
Application :
Home wire
Description

Copper Conductor House Wiring Electrical Cable 1.5mm-6mm2 H07V-R Electric Wire

Production Description:

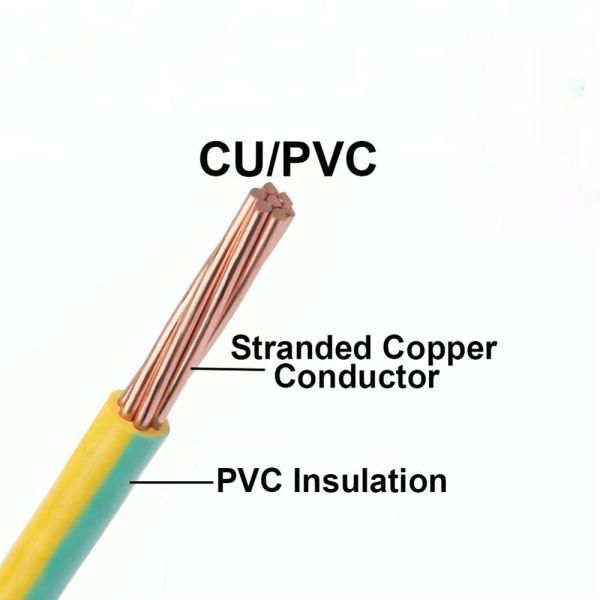

1. Cable Structure of H07V-R cable

  • Conductor: bare copper conductors
  • Insulation: PVC insulation
  • Finished cable: core wire laminated twisted synthetic cable.
2. Techinical Paremeters of H07V-R cable
Rated voltage: 450V/750V
Minimum bending radius:
A. Fixed laying: 12.5 x D (outside diameter of cable)
B. Mobile installation: 12.5 x D (outside diameter of cable)
Operating temperature:
A. Fixed laying: -30 to +80℃
B. Mobile installation: -5 to +70℃ .

3. Detailed Specifications of H07V-R cable

Nominal cross-section

(mm2)

Wire core Number/ Monofilament Diameter

(mm)

Insulation Nominal Thickness

(mm)

Cable Outer Diameter ≦

(mm)
1.5 1/1.38 0.7 3.3
1.5 7/0.52 0.7 3.5
2.5 1/1.78 0.8 3.9
4 1/2.25 0.8 4.4
6 1/2.76 0.8 4.9
10 7/1.35 1.0 7.0
16 7/1.70 1.0 8.0
25 7/2.14 1.2 10.0

4. Application

It is used for soft connections in electrical appliances, instruments, and electrical devices. Connect the removable assembly line and connect to a device with round-trip bending motion,can be used as communication equipment and electronic transmission equipment, such as electrical control cabinets, distribution boxes, telephone exchanges and other occasions.

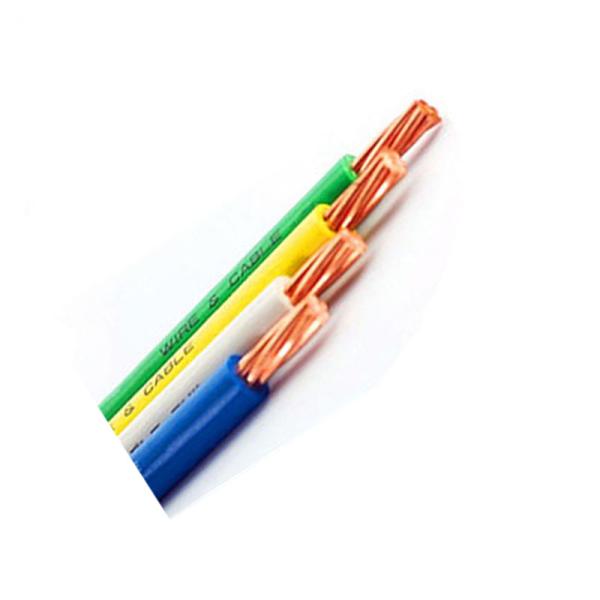

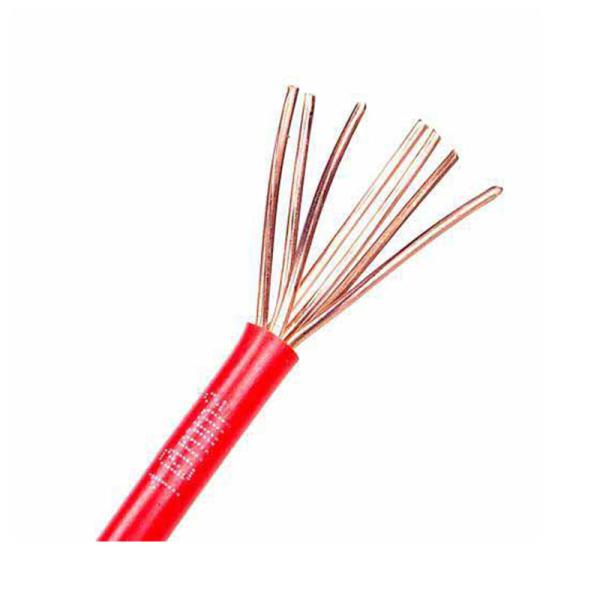

5. Product Image

Copper Conductor House Wiring Electrical Cable 1.5mm-6mm2 H07V-R Electric Wire

Copper Conductor House Wiring Electrical Cable 1.5mm-6mm2 H07V-R Electric Wire

Copper Conductor House Wiring Electrical Cable 1.5mm-6mm2 H07V-R Electric Wire

Product Advantage

Copper Conductor House Wiring Electrical Cable 1.5mm-6mm2 H07V-R Electric Wire

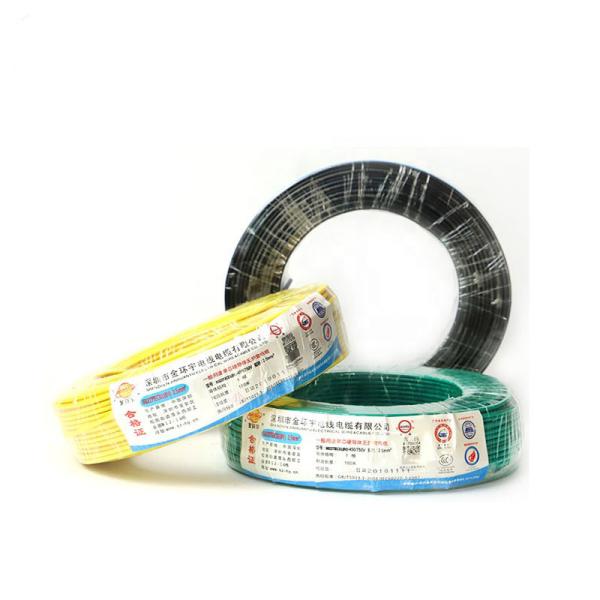

Product Package

Copper Conductor House Wiring Electrical Cable 1.5mm-6mm2 H07V-R Electric Wire

6. Product standard

GB/T 5023, IEC 60227,TIS 11 part 3-2553

7. Company certificate

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

8. Company information

Company Contact Information:

OUR SERVICE Copper Conductor House Wiring Electrical Cable 1.5mm-6mm2 H07V-R Electric Wire

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Email: lynnzeng@sz-hy.cn

Website: Http://www.sz-hy.cn
Website on alibaba.com: sz-jhy.en.alibaba.com

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
