Electircal PVC insulated copper wire Yellow/Green earth grounding BVR cable
Electircal PVC insulated copper wire Yellow/Green earth grounding BVR cable
Electircal PVC insulated copper wire Yellow/Green earth grounding BVR cable
Electircal PVC insulated copper wire Yellow/Green earth grounding BVR cable
Electircal PVC insulated copper wire Yellow/Green earth grounding BVR cable
Electircal PVC insulated copper wire Yellow/Green earth grounding BVR cable
Electircal PVC insulated copper wire Yellow/Green earth grounding BVR cable
Electircal PVC insulated copper wire Yellow/Green earth grounding BVR cable
Specifications
Brand Name :
JHY CABLE
Model Number :
BVR cable
Certification :
CCC/ CE/ CB/ ISO
Place of Origin :
SHENZHEN CHINA
MOQ :
1000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 kilometer/ day
Delivery Time :
3~5 working days
Packaging Details :
100 meters per roll or according to the customer's request.
Conductor :
OFC copper conductor
Cross section :
0.75mm2~185mm2
Conductor Type :
Strand
Type :
insulated, low voltage
Insulation :
PVC
Color :
Yellow-green, or others
Rated Voltage :
300/500V; 450/750V
Operating Temperature :
-15℃-70℃
Application :
House construction
Description

Electircal PVC insulated copper wire Yellow/Green earth grounding BVR cable

Production Description:

1. Model of BVR Copper Wire

Model Designation Use occasion
BVR Copper Core PVC Soft Wire Power, electrical instruments and automation devices
ZR-BVR Copper Core PVC Flame-retardant Soft Wire With a fire-retardant requirements of electrical, instrumentation, telecommunications equipment, power equipment and lighting lines fixed laying.
NH-BVR Copper Core PVC
Fire-resistant Soft Wire		 Control, monitoring circuits, power, line protection and other occasions, as well as large-scale construction, petroleum, metallurgy, chemical industry, cable, ship, personnel-intensive industries have higher flame retardant and fire resistance requirements

2. Detailed Specifications of H07V-R cable

Nominal cross-section

(mm2)

Insulation Nominal Thickness

(mm)

Nominal Overall Diameter

(mm)

Recommended ampacity

(A)

Nominal Weight

(kg/km)
2.5 0.7 4.2 34 34
4.0 0.8 4.8 44 50
6.0 0.8 5.5 58 72
10 1.0 7.2 79 127
16 1.0 8.6 111 184
25 1.2 10.2 146 304

3. Features of BVR cable

A. Uo/U is 450/750 and 300/500.

B. Long time working temperature of or below 70°C is required for all cables or wires,except Model No BV-90 that can stand temperature up to 90°C.

C. Temperature should be above 0°C when laying the cables or wires.

4. Application

1) PVC-insulated conductors for fixed installations

2) Domestic and industrial

3) Panel wiring

4) Rated voltage up to and including 450/750 V

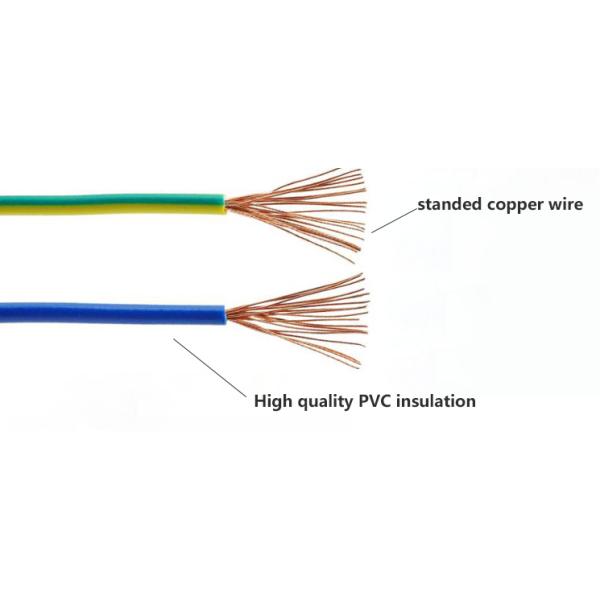

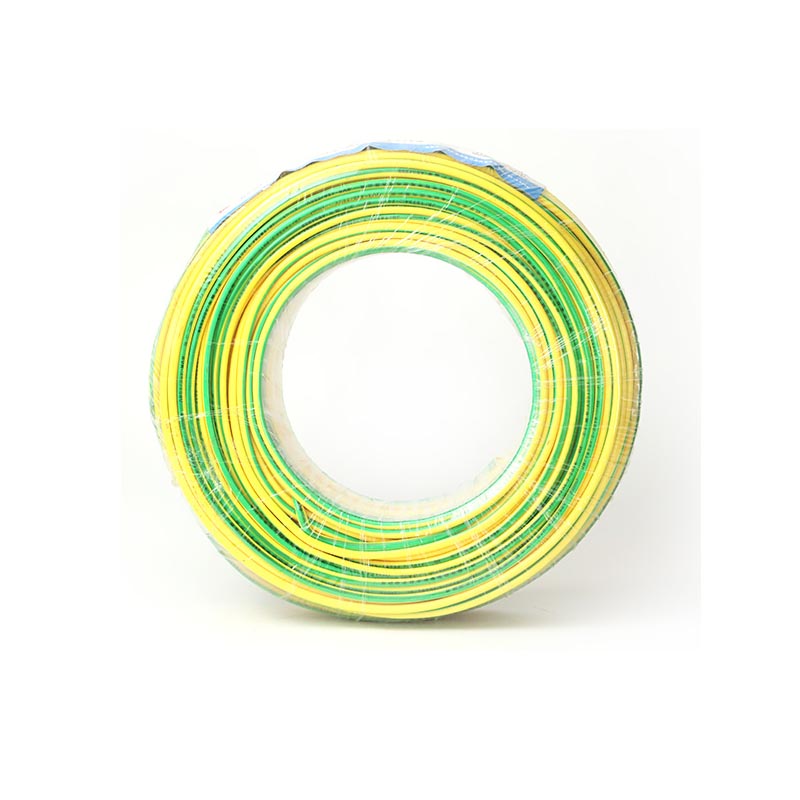

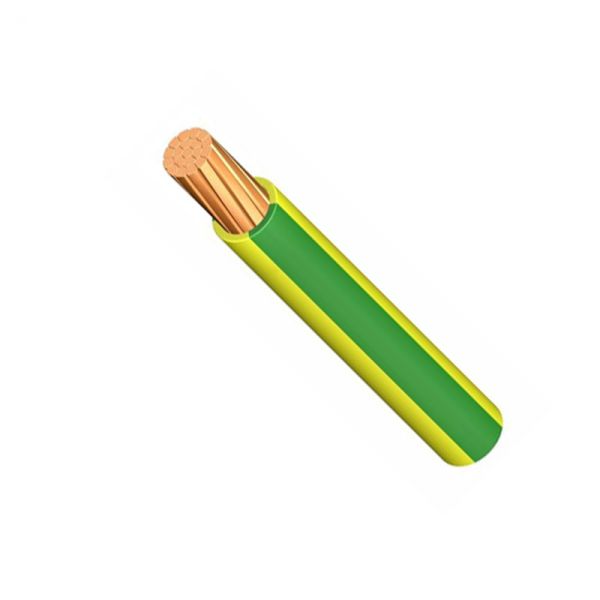

5. Product Image

Electircal PVC insulated copper wire Yellow/Green earth grounding BVR cable

Electircal PVC insulated copper wire Yellow/Green earth grounding BVR cable

Electircal PVC insulated copper wire Yellow/Green earth grounding BVR cable

Electircal PVC insulated copper wire Yellow/Green earth grounding BVR cable

Electircal PVC insulated copper wire Yellow/Green earth grounding BVR cable

Product Advantage

Electircal PVC insulated copper wire Yellow/Green earth grounding BVR cable

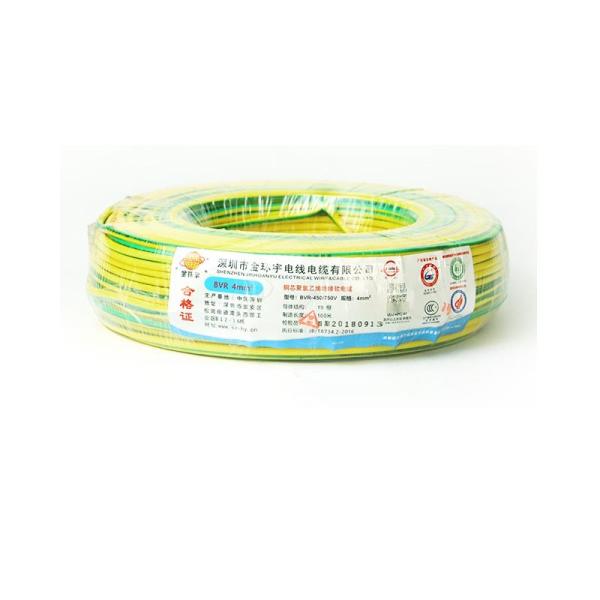

Product Package

Electircal PVC insulated copper wire Yellow/Green earth grounding BVR cable

6. Product standard

GB/T 5023, IEC 60227,TIS 11 part 3-2553

7. Company certificate

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

8. Company information

Company Contact Information:

OUR SERVICE Electircal PVC insulated copper wire Yellow/Green earth grounding BVR cable

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Email: lynnzeng@sz-hy.cn

Website: Http://www.sz-hy.cn
Website on alibaba.com: sz-jhy.en.alibaba.com

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
