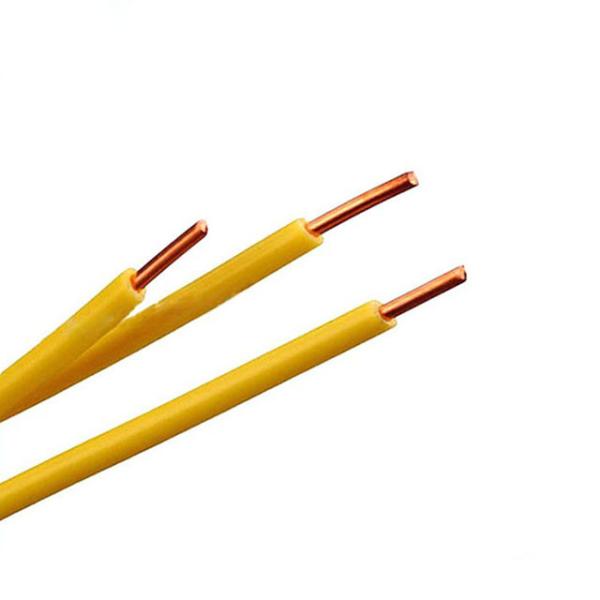

NYA solid or stranded copper PVC insulated colorful electrical cable
NYA solid or stranded copper PVC insulated colorful electrical cable
NYA solid or stranded copper PVC insulated colorful electrical cable
NYA solid or stranded copper PVC insulated colorful electrical cable
NYA solid or stranded copper PVC insulated colorful electrical cable
NYA solid or stranded copper PVC insulated colorful electrical cable
NYA solid or stranded copper PVC insulated colorful electrical cable
NYA solid or stranded copper PVC insulated colorful electrical cable
Specifications
Brand Name :
JHY CABLE
Model Number :
BV cable
Certification :
CCC/ CE/ CB/ ISO
Place of Origin :
SHENZHEN CHINA
MOQ :
1000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 kilometer/ day
Delivery Time :
3~5 working days
Packaging Details :
100 meters per roll or 200 meters per roll or according to the customer's request.
Conductor :
Oxygen free copper
Conductor Type :
Solid or stranded
Insulation :
PVC
Color :
Red, black , blue, yellow+ green or customized
Sheath :
N/A
Rated Voltage :
300/500V, 450/750V
Operating Temperature :
-15℃-70℃
Package :
100 meters/roll
Application :
building, construction
Description

NYA solid or stranded copper PVC insulated colorful electrical cable

Production Description:

1. Product Characteristics

  • safe and durable:high-end cable, high quality, warranty for 50 years.
  • High purity copper:99.99% imports of oxygen-free copper, anti-aging, high conductivity, significantly reduce the line loss.
  • Environmental protection plastics:high-strength plastic insulation, new materials easy to heat, reduce resistance, fire waterproof and no leakage.
  • In strict accordance with national standards of production:national standards and integration of high-end cable production experience for many years, the quality is better than the national standard.

2. Product Parameter

Nominal cross section

(mm2)

 Conductor type

Insulation thickness

(mm)

Max, Overall diameter

(mm)

Approx. weight

(kg/km)
1*0.5 class 1 PVC/0.6 2.4 8.1
1*0.75 class 1 PVC/0.6 2.6 10.9
1*1.0 class 1 PVC/0.6 2.8 13.7
1*1.5 class 1 PVC/0.7 3.3 20
1*2.5 class 1 PVC/0.8 3.9 31.1
1*4.0 class 1 PVC/0.8 4.4 45.7
1*6.0 class 1 PVC/0.8 4.9 65.2
1*10 class 1 PVC/1.0 6.4 112

3. Model of NYA electric wire

H07V-U BV Classification
Model Academic name Insulation materials Model specification Rated voltage Application
BV01 Copper core PVC Insulated Wire PVC General purpose single core hard conductor unshielded cable 450/750V power equipment, househould appliances, instruments and telecommunications equipment.
BV02 Copper core PVC Insulated Wire PVC The internal wiring, Single core solid conductor unshielded cable with a concutor temperatrure of 70 ℃ 300/500V
BV03 Copper core PVC Insulated Wire PVC The internal wiring, Single core solid conductor unshielded cable with a conductor temperature of 90 ℃ 300/500V

4. Application

NYA Single core solid or stranded copper wire PVC insulated non-sheath BV building electrical wire and cable, is used for general power supply and distribution purpose,as building wire for power, lighting in house and power supply to electrical appliance, suitable for use in conduit and for fixed,protected installation.

5. Product Image

NYA solid or stranded copper PVC insulated colorful electrical cable

NYA solid or stranded copper PVC insulated colorful electrical cable

Product Advantage

NYA solid or stranded copper PVC insulated colorful electrical cable

Product Package

NYA solid or stranded copper PVC insulated colorful electrical cable

6. Product standard

GB/T 5023, IEC 60227,TIS 11 part 3-2553

7. Company certificate

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

8. Company information

Company Contact Information:

OUR SERVICE NYA solid or stranded copper PVC insulated colorful electrical cable

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Email: lynnzeng@sz-hy.cn

Website: Http://www.sz-hy.cn
Website on alibaba.com: sz-jhy.en.alibaba.com

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
