H07V-R Strands Bare Copper Conductor PVC Insulated Electrical Cable House Wire
H07V-R Strands Bare Copper Conductor PVC Insulated Electrical Cable House Wire
H07V-R Strands Bare Copper Conductor PVC Insulated Electrical Cable House Wire
H07V-R Strands Bare Copper Conductor PVC Insulated Electrical Cable House Wire
H07V-R Strands Bare Copper Conductor PVC Insulated Electrical Cable House Wire
H07V-R Strands Bare Copper Conductor PVC Insulated Electrical Cable House Wire
H07V-R Strands Bare Copper Conductor PVC Insulated Electrical Cable House Wire
H07V-R Strands Bare Copper Conductor PVC Insulated Electrical Cable House Wire
Specifications
Brand Name :
JHY CABLE
Model Number :
H07V-R
Certification :
ROHS/CCC/VDE/CE/On request
Place of Origin :
SHENZHEN CHINA
MOQ :
100M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000KM/Day
Delivery Time :
7 Days
Packaging Details :
100M/Roll
Conductor Material :
Copper
Rated Voltage :
300/500V,450/750V
Conductor Type :
strand
Core :
Single core
Insulation Material :
PVC
Size :
0.5mm To 95mm
Packing :
100m/roll
Color :
Brown, blue, red, black, yellow/green, or others
Description

H07V-R Strands Bare Copper Conductor PVC Insulated Electrical Cable House Wire

Production Description:


---Product Application

It is suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances.

---Product Structue
1. Conductor
Pure annealed copper wire, Class 2, strand, GB/T 3956, BS 6360, IEC 60228.
2. Insulation
PVC (Polyvinyl Chloride).
3. Sheath
Non-sheath.
4. Core Number
Single Core, 1C.

---Cables Standard
JB/T 8734, IEC 60227, BS 6004.
OEM or ODM service will be accepted.

---Product Characteristics
1. Voltage Rating
H05V-R: BV 0.5-1.0mm2 300/500V (Uo/U)
H07V-R: BV 1.5-630mm2 450/750V (Uo/U)
2. Working Temperature
-15°C to +70°C
3. Minimum Bending Radius
More than: 5 x out diameter
4. Insulation Colour
Red, black, blue, yellow, white, green/yellow, grey, brown, or according to the customer request.

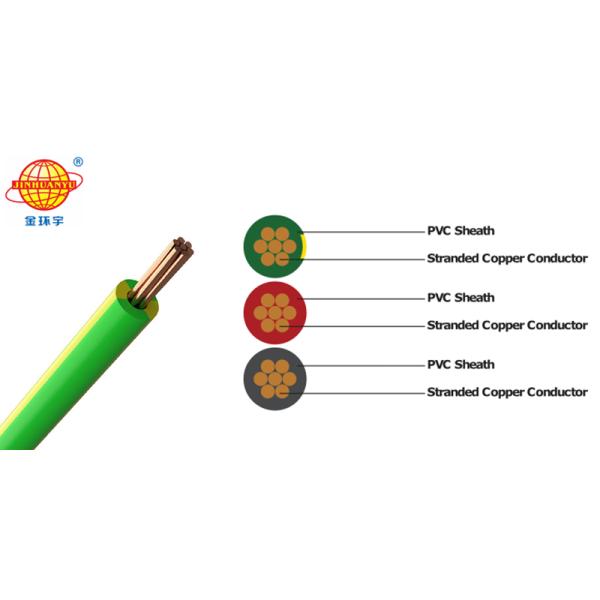

4. Product Image

H07V-R Strands Bare Copper Conductor PVC Insulated Electrical Cable House Wire

H07V-R Strands Bare Copper Conductor PVC Insulated Electrical Cable House Wire

Company Contact Information:

OUR SERVICE H07V-R Strands Bare Copper Conductor PVC Insulated Electrical Cable House Wire

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Email: jefflee@sz-hy.cn

Website:Http://www.sz-hy.cn
Website on alibaba.com: sz-jhy.en.alibaba.com

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
