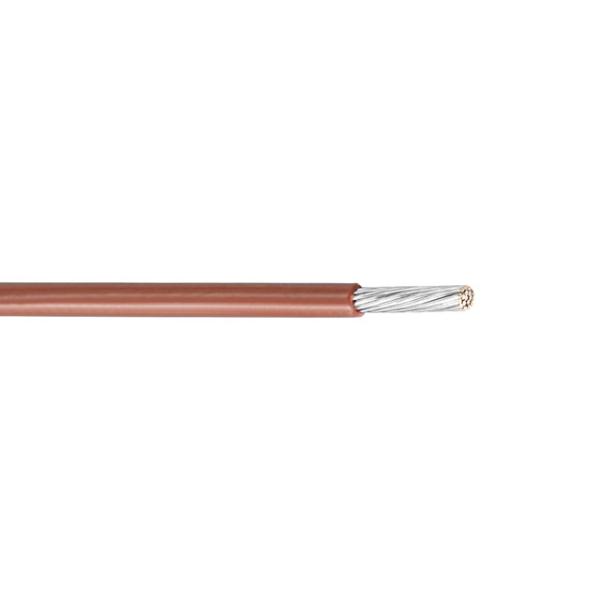

20awg high temp 250C AWM UL1726 PFA Insulated Wire heating cable
20awg high temp 250C AWM UL1726 PFA Insulated Wire heating cable
20awg high temp 250C AWM UL1726 PFA Insulated Wire heating cable
20awg high temp 250C AWM UL1726 PFA Insulated Wire heating cable
20awg high temp 250C AWM UL1726 PFA Insulated Wire heating cable
20awg high temp 250C AWM UL1726 PFA Insulated Wire heating cable
20awg high temp 250C AWM UL1726 PFA Insulated Wire heating cable
20awg high temp 250C AWM UL1726 PFA Insulated Wire heating cable
Specifications
Brand Name :
MYSUN
Model Number :
UL1726
Certification :
ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008
Place of Origin :
China
MOQ :
5000 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50,000m/day
Packaging Details :
305m/roll
rated voltage :
300V
rated temperature :
250℃
insulation :
PFA
conductor :
tinned copper
standard :
UL758
color :
all colors are available
appliance :
home appliance, headlamp, industrial machine, electro thermal products.
Packing :
reel
Name :
wire
size :
4/0-32AWG
Description

insulated wire UL1726

Specifications:

Nominal voltage: 300V

Temperature range:250C

Standard: UL 758

Insulation: PFA

Conductor: tinned copper wire

Product dimensions:

Conductor Insulation Max.cond Unit Length
resistance (m)(Ft)
Size Construction Diameter Nominal Thickness Diameter (Ω/km)
(AWG) (No./mm) (mm) (mm) (mm)
32 7/0.08 0.24 0.35 0.94 563 610/2000
30 7/0.10 0.30 0.35 1.00 361 610/2000
28 7/0.12 0.36 0.35 1.08 227 610/2000
26 7/0.16 0.48 0.35 1.18 143 610/2000
24 7/0.20 0.60 0.35 1.30 89.3 610/2000
22 19/0.15 0.75 0.35 1.45 56.4 305/1000
20 19/0.185 0.93 0.35 1.63 35.2 305/1000
18 19/0.235 1.17 0.35 1.87 22.2 305/1000
16 19/0.30 1.50 0.35 2.20 14 305/1000
14 19/0.37 1.85 0.35 2.55 8.78 305/1000
12 19/0.47 2.35 0.35 3.05 5.53 305/1000
10 37/0.43 3.00 0.35 3.70 3.476 305/1000
8 37/0.54 3.78 0.51 4.80 2.16 customized
7 37/0.60 4.20 0.51 5.22 1.716
6 37/0.68 4.76 0.51 5.78 1.361
5 37/0.76 5.32 0.80 6.92 1.079
4 37/0.86 6.02 0.80 7.62 0.8859
3 7/2.21 6.63 0.80 8.23 0.6788
2 7/2.48 7.44 0.80 9.04 0.5384
1 7/2.78 8.34 1.20 10.74 0.4268
0 7/3.20 9.60 1.20 12.00 0.3367
2/0 7/3.57 10.71 1.20 13.11 0.267
3/0 7/3.94 11.82 1.20 14.22 0.2119
4/0 7/4.42 13.26 1.20 15.66 0.168

Service:

Shipment:

1. by express

2. by sea

Payment terms:

LC, TT, Western Union, Money Gram and PayPal

Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
