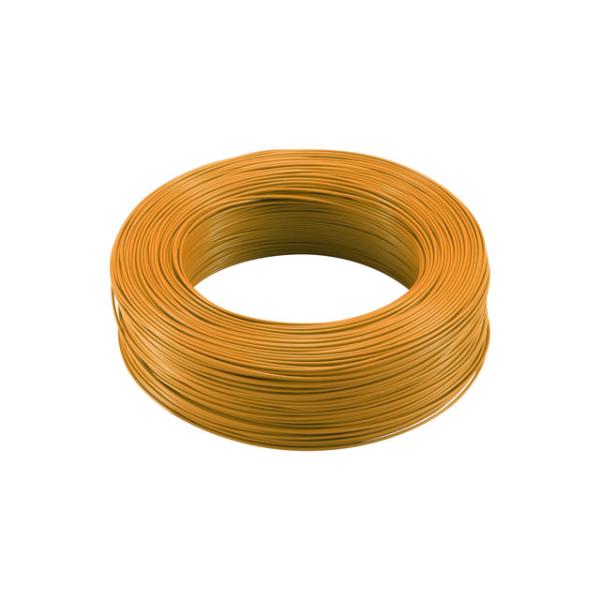

26awg 200C UL1709 PFA high temperature Insulated Wire for Motorcycle
26awg 200C UL1709 PFA high temperature Insulated Wire for Motorcycle
26awg 200C UL1709 PFA high temperature Insulated Wire for Motorcycle
26awg 200C UL1709 PFA high temperature Insulated Wire for Motorcycle
26awg 200C UL1709 PFA high temperature Insulated Wire for Motorcycle
26awg 200C UL1709 PFA high temperature Insulated Wire for Motorcycle
26awg 200C UL1709 PFA high temperature Insulated Wire for Motorcycle
26awg 200C UL1709 PFA high temperature Insulated Wire for Motorcycle
Specifications
Brand Name :
MYSUN
Model Number :
UL1709
Certification :
ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008
Place of Origin :
China
MOQ :
5000 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50,000m/day
Packaging Details :
305m/roll
rated voltage :
300V
rated temperature :
200℃
insulation :
PFA
conductor :
tinned copper
standard :
UL758
color :
all colors are available
appliance :
home appliance, headlamp, industrial machine, electro thermal products.
Packing :
reel
Name :
wire
size :
10-32AWG
Description

insulated wire UL1709

Specifications:

Nominal voltage: 300V

Temperature range:200C

Standard: UL 758

Insulation: PFA

Conductor: tinned copper wire

Product dimensions:

CONDUCTOR INSULATION MAX.COND RESISTANCE (Ω/KM) UNIT LENGTH (M)(FT)
SIZE (AWG) CONSTRUCTION (NO./mm) DIAMETER (mm) NOMINAL THICKNESS (mm) DIAMETER (mm)

28		 1/0.32 0.32 0.35 1.02 227 610(2000)
7/0.12 0.36 0.35 1.06
26 7/0.16 0.48 0.35 1.18 143 610(2000)
24 1/0.50 0.50 0.35 1.20 89.3 305(1000)
7/0.20 0.60 0.35 1.30
22 1/0.65 0.65 0.35 1.35 56.4 305(1000)
7/0.254 0.76 0.35 1.46
19/0.15 0.75 0.35 1.45
20 1/0.81 0.81 0.35 1.55 35.2 305(1000)
7/0.31 0.93 0.35 1.63
19/0.19 0.93 0.35 1.63
18 1/1.02 1.02 0.35 1.72 22.2 305(1000)
7/0.39 1.17 0.35 1.87
19/0.235 1.17 0.35 1.87
17 19/0.26 1.30 0.35 2.00 17.6 305(1000)
16 1/1.30 1.30 0.35 2.00 14 305(1000)
7/0.49 1.47 0.35 2.17
19/0.30 1.50 0.35 2.20
14 19/0.37 1.85 0.35 2.55 8.78 305(1000)
12 19/0.47 2.35 0.35 3.05 5.53 305(1000)
10 19/0.61 3.01 0.35 3.71 3.476 305(1000)

Service:

Shipment:

1. by express

2. by sea

Payment terms:

LC, TT, Western Union, Money Gram and PayPal

Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
