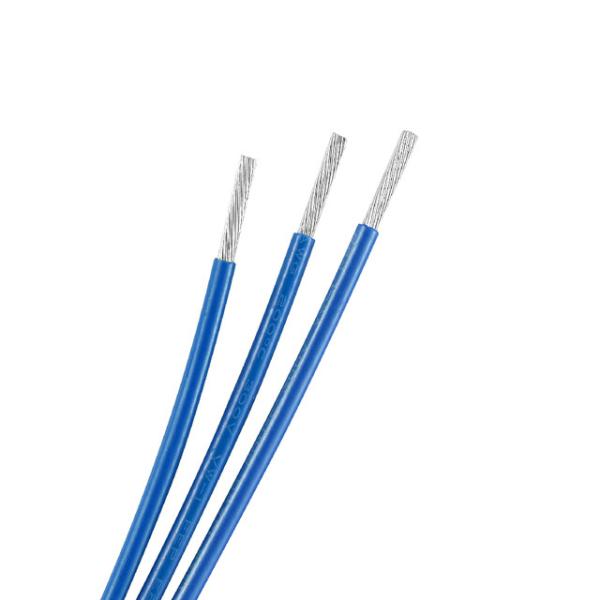

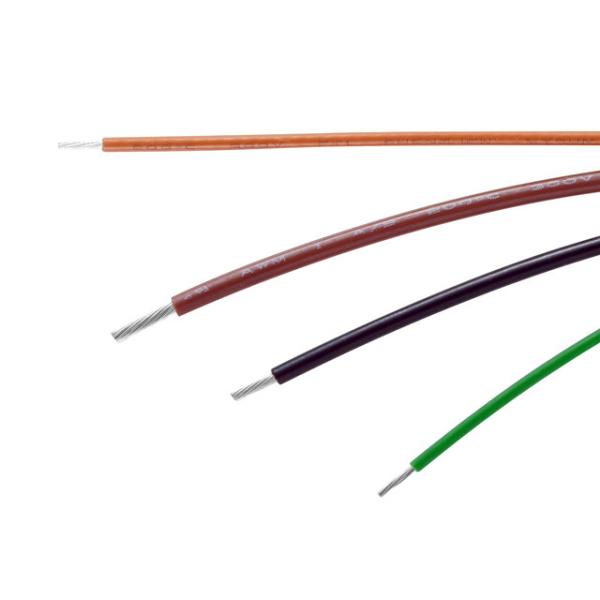

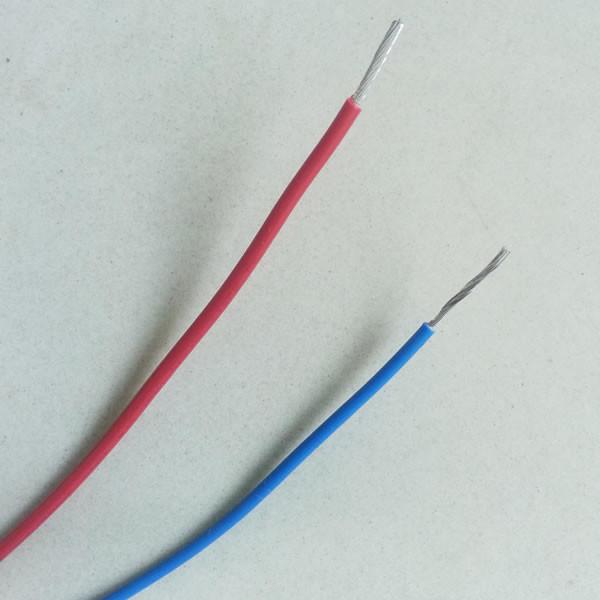

600V 250C AWM 14 AWG Wire , High Temperature Hook Up Wire UL10362
600V 250C AWM 14 AWG Wire , High Temperature Hook Up Wire UL10362
600V 250C AWM 14 AWG Wire , High Temperature Hook Up Wire UL10362
600V 250C AWM 14 AWG Wire , High Temperature Hook Up Wire UL10362
600V 250C AWM 14 AWG Wire , High Temperature Hook Up Wire UL10362
600V 250C AWM 14 AWG Wire , High Temperature Hook Up Wire UL10362
600V 250C AWM 14 AWG Wire , High Temperature Hook Up Wire UL10362
600V 250C AWM 14 AWG Wire , High Temperature Hook Up Wire UL10362
Specifications
Brand Name :
MYSUN
Model Number :
UL10362
Certification :
ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008
Place of Origin :
China
MOQ :
5000 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50,000m/day
Packaging Details :
305m/roll
rated voltage :
600V
rated temperature :
250℃
insulation :
PFA
conductor :
tinned copper
standard :
UL758
color :
all colors are available
appliance :
home appliance, headlamp, industrial machine, electro thermal products.
Packing :
reel
Name :
automotive wire
size :
4/0-30AWG
name :
high temperature cable
Description

600V 250C AWM 14AWG UL10362 Insulated Wire hook up wire

Specifications:

Nominal voltage:600V

Temperature range:250C

Standard: UL 758

Insulation: PFA

Jacket: silicone rubber

Conductor: tinned copper wire

appliance:home appliance, headlamp, industrial machine, electro thermal products.

Product dimensions:

Conductor Insulation Max.Cond Resistance Unit length
Size Construction Diameter Nominal Thickness Diameter (Ω/KM) (M)(Ft)
(AWG) (No./mm) (mm) (mm) (mm)
30 7/0.10 0.3 0.3 0.9 361 610/2000
28 7/0.12 0.38 0.3 0.96 227 610/2000
26 7/0.16 0.48 0.3 1.08 143 610/2000
24 7/0.20 0.61 0.3 1.2 89.3 610/2000
22 19/0.15 0.75 0.3 1.35 56.4 305/1000
20 19/0.185 0.93 0.3 1.53 35.2 305/1000
18 19/0.235 1.17 0.3 1.77 22.2 305/1000
16 19/0.30 1.5 0.3 2.2 14 305/1000
14 19/0.37 1.85 0.3 2.55 8.78 305/1000
12 19/0.47 2.35 0.3 3.15 5.53 305/1000
10 37/0.43 3 0.3 3.8 3.476 305/1000
8 37/0.54 3.78 0.8 5.38 2.16
7 37/0.60 4.2 0.8 5.8 1.716
6 37/0.68 4.76 0.8 6.36 1.361
5 37/0.76 5.32 0.8 6.92 1.079
4 37/0.86 6.02 0.8 7.62 0.8559
3 7/2.21 6.63 0.8 8.23 0.6788 as order
2 7/2.48 7.44 0.8 9.04 0.5384
1 7/2.78 8.34 1.2 10.74 0.4268
0 7/3.20 9.6 1.2 12 0.3367
2/0 7/3.57 10.71 1.2 13.11 0.267
3/0 7/3.94 11.82 1.2 14.22 0.2119
4/0 7/4.42 13.26 1.2 15.66 0.168

PFA Insulated Wires for Demanding Applications

PFA is a form of extruded possessing outstanding insulation properties.

The material is widely chosen for several specialty wires and cables for use in NOx sensors,

gas igniters, medical and scientific instruments, aircraft, and marine systems.

The material can withstand harsh operating conditions, and can resist operating temperatures up to 260° C.

There are more exciting aspects about PFA insulation. You will find them in the list given below.

  • Possesses exceptional chemical resistance
  • Exhibits superior creep resistance at high temperatures
  • Remains flexible at low temperatures
  • Possesses exceptional flame resistance as it is manufactured meeting stringent fire safety regulations
  • Has high resistance to oils, acids, and alkaline substances
  • Possesses good dielectric strength
  • Exhibits exceptional abrasion resistance
  • Possesses high resistance to cracking, cut-through, soldering, and solvents.
  • Has very good heat, oil, and weather resistance.

Service:

Shipment:

1. by express

2. by sea

Payment terms:

LC, TT, Western Union, Money Gram and PayPal

Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
