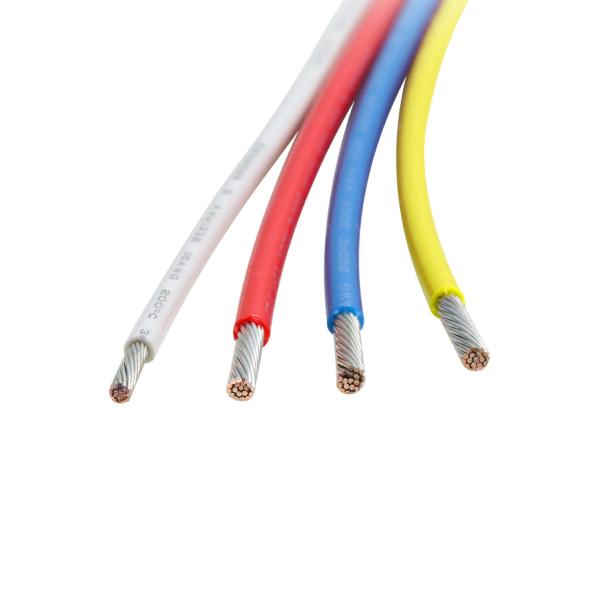

UL Certificated Insulated Wire And Cable Oil Resistant UL10362 600V 250C
UL Certificated Insulated Wire And Cable Oil Resistant UL10362 600V 250C
UL Certificated Insulated Wire And Cable Oil Resistant UL10362 600V 250C
UL Certificated Insulated Wire And Cable Oil Resistant UL10362 600V 250C
UL Certificated Insulated Wire And Cable Oil Resistant UL10362 600V 250C
UL Certificated Insulated Wire And Cable Oil Resistant UL10362 600V 250C
Specifications
Brand Name :
Mysun
Model Number :
UL10362
Certification :
UL,cUL,CSA
Place of Origin :
CHINA
MOQ :
5000 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
200km per day
Delivery Time :
5-10 working days
Packaging Details :
305m per roll
Rated voltage :
600V
Rated temperature :
250C
Insulation :
PFA
Conductor :
Tinned copper or Nickel plated copper
Color :
All colors are available
Flame level :
100% pass VW-1 and FT-1 test
Spark test :
100% pass 6500V AC test
ROHS :
100% PASSED
REACH :
100% PASSED
Description

insulated wire and cable UL10362

Retad voltage 600V
Retad temperature 250°C
Insulation PFA
Conductor nickel-plated copper wire
Standards UL 758
Application home appliances/ leds/industrial machine
M/FT 305/1000,610/2000
Size 30,28,26,24,22,20,18,16,14,12,10,8
Color white,black,red,brown,yellow,blue,green,transparent etc.
Conductor Insulation Max.Cond Resistance
(Ω/KM)		 Unit length
(M)(Ft)
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)
30 7/0.10 0.30 0.300 0.90 361 610/2000
28 7/0.12 0.38 0.300 0.96 227 610/2000
26 7/0.16 0.48 0.300 1.08 143 610/2000
24 7/0.20 0.61 0.300 1.20 89.3 610/2000
22 19/0.15 0.75 0.300 1.35 56.4 305/1000
20 19/0.185 0.93 0.300 1.53 35.2 305/1000
18 19/0.235 1.17 0.300 1.77 22.2 305/1000
16 19/0.30 1.50 0.300 2.20 14 305/1000
14 19/0.37 1.85 0.300 2.55 8.78 305/1000
12 19/0.47 2.35 0.300 3.15 5.53 305/1000
10 37/0.43 3.00 0.300 3.80 3.476 305/1000
8 37/0.54 3.78 0.800 5.38 2.16
7 37/0.60 4.20 0.800 5.80 1.716
6 37/0.68 4.76 0.800 6.36 1.361
5 37/0.76 5.32 0.800 6.92 1.079
4 37/0.86 6.02 0.800 7.62 0.8559
3 7/2.21 6.63 0.800 8.23 0.6788 as order
2 7/2.48 7.44 0.800 9.04 0.5384
1 7/2.78 8.34 1.200 10.74 0.4268
0 7/3.20 9.60 1.200 12.00 0.3367
2/0 7/3.57 10.71 1.200 13.11 0.267
3/0 7/3.94 11.82 1.200 14.22 0.2119
4/0 7/4.42 13.26 1.200 15.66 0.168

UL Certificated Insulated Wire And Cable Oil Resistant UL10362 600V 250C

UL Certificated Insulated Wire And Cable Oil Resistant UL10362 600V 250C

FAQ:

1. What is the diffierence between FEP and PFA?

A: They are both of materials, FEP is normally rated 200C but PFA is better than it, 250C rated temperature, higher rated voltage.

2.What certification did your products pass?

A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications.

3.​Is the quality of your products guaranteed?

A:Yes,the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment,

and our workers are highly experienced . We strictly follow the international standards and customers' requirements.
