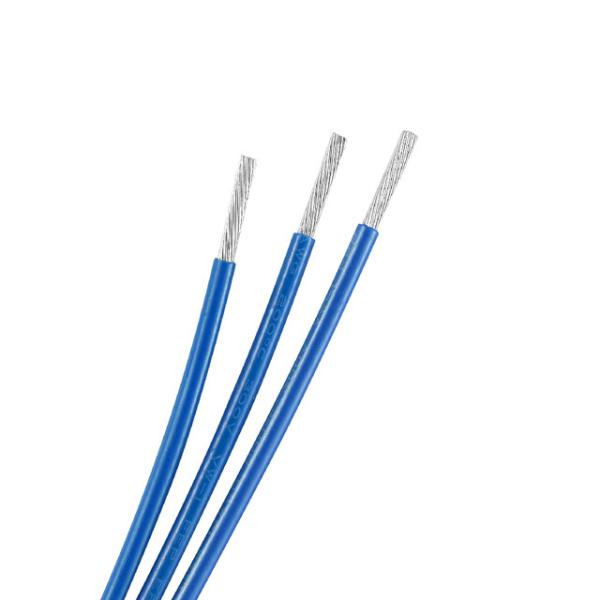

PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options
PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options
PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options
PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options
PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options
PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options
PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options
PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options
Specifications
Brand Name :
MYSUN
Model Number :
UL1199
Certification :
UL
Place of Origin :
CHINA
MOQ :
5000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
0.6 million meters each day
Delivery Time :
7-10 working days
Packaging Details :
carton, pallet
Insulation :
PTFE
Conductor :
nickel or silver plated
Size :
30AWG-4/0AWG
Color :
black, red, white, yellow, blue, green, grey, yellow-green, pink, transparent
Rated voltage :
600V
Working temp :
200C
Use in :
home appliance, industry and so on
SPQ :
305m/roll, 610m/roll
Package :
reel, carton, pallet
Flame retardant :
VW-1
Description

PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options

Specification:

Rated voltage: 600V

Rated temperature: 200C

UL standard: UL758

Applications: this wire widely sued for motor. lighting, sensor and home appliance.

Cable dimensions:

Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
30 7/0.1 0.3 0.51 1.32 361 610/2000
28 7/0.127 0.36 1.38 227
26 7/0.16 0.48 1.5 143
24 7/0.20 0.6 1.62 89.3
22 19/0.15 0.75 1.77 56.4 305/1000
20 19/0.185 0.93 1.95 35.2
18 19/0.235 1.17 0.51 2.19 22.2
16 19/0.30 1.5 2.52 14
14 19/0.37 1.85 2.87 8.78
12 19/0.47 2.35 3.37 5.53
10 37/.43 3 4.02 3.476
8 37/0.54 3.78 0.8 5.38 2.16 customized
7 37/0.60 4.2 5.8 1.716
6 37/0.68 4.76 6.36 1.361
5 37/0.76 5.32 6.92 1.079
4 37/0.86 6.02 7.62 0.8859
3 7/2.21 6.63 8.23 0.6788
2 7/2.48 7.44 9.04 0.5384
1 7/2.78 8.34 1.2 10.74 0.4268
0 7/3.20 9.6 12 0.3367
2/0 7/3.57 10.71 13.11 0.267
3/0 7/3.94 11.82 14.22 0.2119
4/0 7/4.42 13.26 15.66 0.168

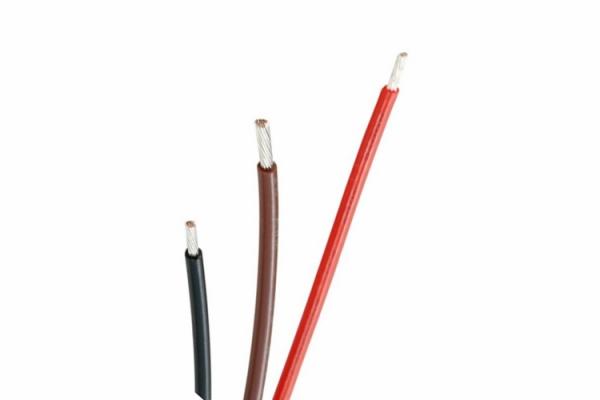

Cable details:

PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options

PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options
PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options

PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options

PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options

PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options

PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options

Price term:
EXW, FOB, CIF

Payment terms:
LC, TT, Western Union and PayPal

Lead time:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
