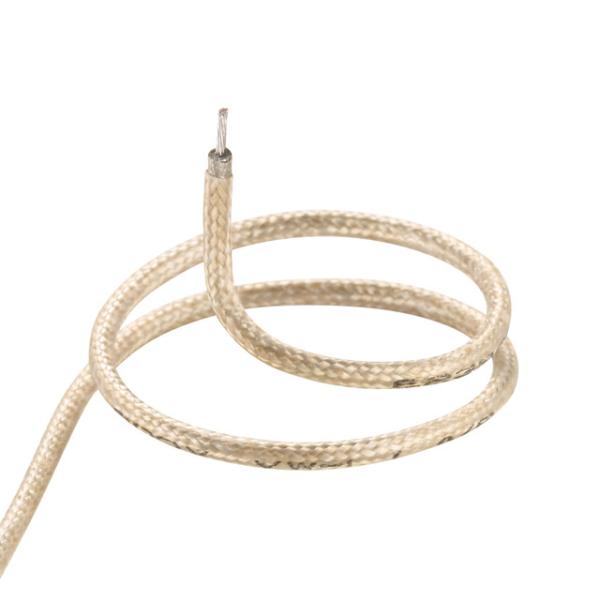

Pure Nickel Conductor Mica Insulated Wire Fiberglass Braided 18 Awg UL5107
Pure Nickel Conductor Mica Insulated Wire Fiberglass Braided 18 Awg UL5107
Pure Nickel Conductor Mica Insulated Wire Fiberglass Braided 18 Awg UL5107
Pure Nickel Conductor Mica Insulated Wire Fiberglass Braided 18 Awg UL5107
Pure Nickel Conductor Mica Insulated Wire Fiberglass Braided 18 Awg UL5107
Pure Nickel Conductor Mica Insulated Wire Fiberglass Braided 18 Awg UL5107
Specifications
Brand Name :
MYSUN
Model Number :
UL5107
Certification :
UL, cUL, CSA
Place of Origin :
China
MOQ :
5000 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50,000m/day
Packaging Details :
305/roll
rated voltage :
600V
rated temperature :
450℃
insulation :
glass
conductor :
nickel-plated copper or pure nickel
standard :
UL758
appliance :
home appliance, headlamp, industrial machine, electro thermal products
color :
all colors are available
size :
4-24 awg
name :
mica cable
Description

UL5107 450 degrees mica insulated wire

Rated voltage: 600V

Rated temperature: 450℃

Standard；UL 758

Conductor: Nickel plated copper or pure nickel

Insulation: Mica

Jacket: Fiber glass

Product dimensions:

Conductor Insulation Unit Length
Size Construction Diameter Mica Thickness Glass Thickness Diameter (m)
(AWG) (No./mm) (mm) (mm) (mm) (mm)
26 7/0.16 0.48 ≥0.635 0.181 ≥2.15 305
24 7/0.20 0.61 ≥2.25
22 7/0.25 0.77 ≥2.40
20 7/0.31 0.94 ≥2.60
18 16/0.254 1.19 ≥2.85
16 26/0.254 1.49 ≥3.15
14 41/0.254 1.87 ≥3.50 200
12 65/0.254 2.36 ≥0.762 0.381 ≥4.65 100
10 35/0.45 3.06 ≥5.35
8 67/0.40 3.75 ≥6.05
6 266/0.254 4.75 ≥7.05
4 420/0.254 6.02 ≥8.25

Our mica-insulated electric cables meet the most stringent international fire-resistance standards.

Mica tape not only provides electric insulation, but it also acts as a unique barrier against fire

by preventing its propagation and reduces the volume of toxic gases and fumes given away during a fire.

Mica is a natural material, chemically neutral, non-toxic and entirely halogen-free.

Mica tape is a dry non-adhesive flexible tape, impregnated with a high performance

heat-resistant silicon resin and reinforced with a support of polyethylene film.

The advantages of Mica:

  • Non-propagation of flames: Mica is a non-combustible material and does not propagate flames.
  • Delay in smoke release: Mica reduces the quantity of toxic gases and smoke given away in a fire and also delays their release.
  • Environmentally friendly: Mica is asbestos-free and complies with the latest international environmental standards.
  • Acid and alkaline-resistant
  • Vibration and shock-resistant
  • Water-resistant
  • Radiation-resistant up to 109 Rad

Applications:

We use mica tape in the instrumentation and control and power cable families.

Cable applications include emergency lighting, smoke extractors, telephones, lifts,

signal equipment, control units, emergency pumps, IT centers, etc.

wherever there is strategically important equipment that cannot stop working and that needs to be preserved.

These cables are fit for hospitals, airports, high apartments, cinemas, hotels, department stores,

tunnels, underground railways and in industrial and military installations such as steel work plants,

petrochemical complexes, offshore platforms, telecommunication centers, etc.

Pure Nickel Conductor Mica Insulated Wire Fiberglass Braided 18 Awg UL5107Pure Nickel Conductor Mica Insulated Wire Fiberglass Braided 18 Awg UL5107Pure Nickel Conductor Mica Insulated Wire Fiberglass Braided 18 Awg UL5107

Service:

Shipment:
1. by express
2. by sea

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
