XLPE Insulation Halogen Free Flame Retardant Cables 600V 150C Weather Resistance
XLPE Insulation Halogen Free Flame Retardant Cables 600V 150C Weather Resistance
XLPE Insulation Halogen Free Flame Retardant Cables 600V 150C Weather Resistance
XLPE Insulation Halogen Free Flame Retardant Cables 600V 150C Weather Resistance
XLPE Insulation Halogen Free Flame Retardant Cables 600V 150C Weather Resistance
XLPE Insulation Halogen Free Flame Retardant Cables 600V 150C Weather Resistance
XLPE Insulation Halogen Free Flame Retardant Cables 600V 150C Weather Resistance
XLPE Insulation Halogen Free Flame Retardant Cables 600V 150C Weather Resistance
Specifications
Brand Name :
Mysun
Model Number :
UL3289
Certification :
UL,cUL
Place of Origin :
CHINA
MOQ :
5000 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
15km per day
Delivery Time :
5-10 working days
Packaging Details :
305m per roll
Rated voltage :
600V
Rated temperature :
150C
Insulation :
XLPE
Conductor :
Tinned copper
environmental :
ROHS,REACH, LOW SMOKE
Standard :
UL,cUL certificates
Application :
Metros, appliance
Flame :
100% pass FT-2, also can make VW-1 and FT-1
Description

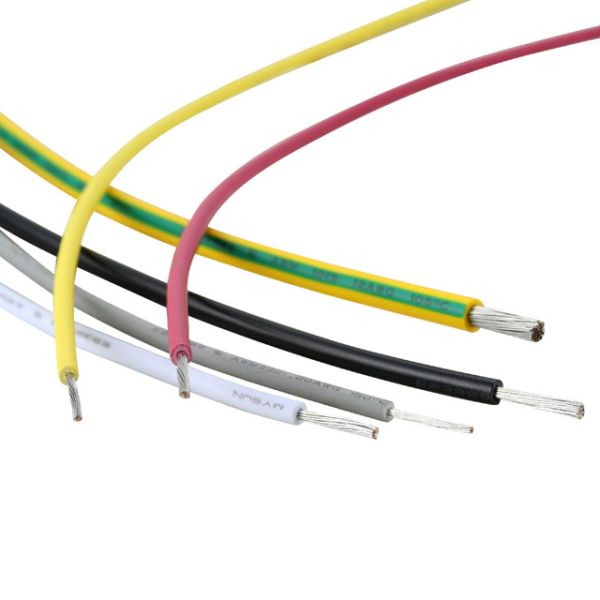

XLPE insulated cable UL certificated

Specifications:

Nominal voltage: 600V

Temperature range: 150C

Standard: UL 758

Insulation: XLPE

Conductor: tinned copper wire

Product dimensions:

Conductor Insulation Max.cond
resistance
(Ω/km)		 Unit Length
(m)(Ft)
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Inside thickness(mm) Diameter
(mm)
28 7/0.127 0.38 0.78 1.94 227 610/2000
26 7/0.16 0.48 0.78 2.04 143 610/2000
24 11/0.16 0.60 0.78 2.16 89.3 305/1000
22 17/0.16 0.76 0.78 2.32 56.4 305/1000
20 21/0.18 0.94 0.78 2.49 35.2 305/1000
18 16/0.254 1.18 0.78 2.73 22.2 305/1000
16 26/0.254 1.50 0.78 3.05 14 305/1000
14 41/0.254 1.89 0.78 3.45 8.78 305/1000
12 65/0.254 2.37 0.78 3.93 5.53 305/1000
10 105/0.254 3.02 0.78 4.58 3.476 305/1000
9 133/0.254 3.36 1.15 4.92 2.73 100/328
8 133/0.28 3.75 1.15 6.05 2.16 100/328

XLPE Insulation Halogen Free Flame Retardant Cables 600V 150C Weather Resistance

XLPE Insulation Halogen Free Flame Retardant Cables 600V 150C Weather Resistance

FAQ:

1. Does your XLPE wires are Low smoke and halogen free?

A: Yes of course, our XLPE wires are made by Environmental protection materials and pass all testing

2.How can I get samples?

A:Please tell us the detailed information of products you need. Then we will check our stock.We can offer the free samples immediately.

If we don't have the exact model you need, Maybe we will send you similar sample if you accept.

If you couldn’t accept,it will take us 3-5days to get the sample done.

Service:

Shipment:

1. by express

2. by sea

3. by air

Payment terms:

LC, TT, Western Union, Money Gram and PayPal

Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
