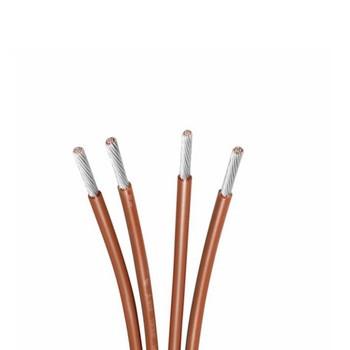

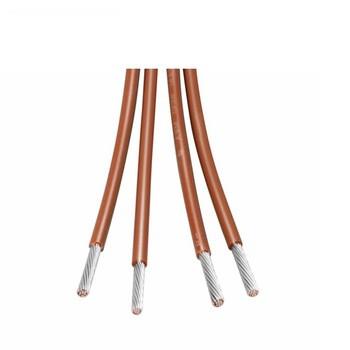

Single Core UL1726 14AWG Tinned Copper PFA Wire insulated
Single Core UL1726 14AWG Tinned Copper PFA Wire insulated
Single Core UL1726 14AWG Tinned Copper PFA Wire insulated
Single Core UL1726 14AWG Tinned Copper PFA Wire insulated
Single Core UL1726 14AWG Tinned Copper PFA Wire insulated
Single Core UL1726 14AWG Tinned Copper PFA Wire insulated
Single Core UL1726 14AWG Tinned Copper PFA Wire insulated
Single Core UL1726 14AWG Tinned Copper PFA Wire insulated
Single Core UL1726 14AWG Tinned Copper PFA Wire insulated
Single Core UL1726 14AWG Tinned Copper PFA Wire insulated
Single Core UL1726 14AWG Tinned Copper PFA Wire insulated
Single Core UL1726 14AWG Tinned Copper PFA Wire insulated
Specifications
Brand Name :
Mysun
Model Number :
UL1726
Certification :
UL
Place of Origin :
China
MOQ :
1000M
Price :
USD0.1-2/m
Payment Terms :
T/T
Supply Ability :
1 million per day
Delivery Time :
5-10 workdays
Packaging Details :
305m/roll
Conductor type :
Stranded
Insulation material :
PFA
Conductor material :
Tinned Copper
Type :
Insulated
Color :
Red,Black,blue,yellow,green
Rated voltage :
250V
Cross section :
14AWG
Core :
Single
Packing :
100m/Roll,wooden drum,1000ft /roll,305m per roll
Temp reistance :
250 Degree
Description

Mysun PFA High Temperature Wire has the following characteristics:

  • Very Good Mechanical Strength and Abrasion Resistance
  • Excellent Electrical Insulating Properties
  • Excellent Thermal Stability
  • Resistant to Chemicals and Solvents
  • Heat, Age, & Ozone Resistant
  • Good Flexibility
  • Thin Walls for Weight and Space Savings
  • Good Lubricity (low coefficient of friction)

Suitable for use as internal wiring in appliances and electronic equipment. This wire meets UL Style 1726.

Description: Single conductor stranded nickel plated copper insulated with extruded PFA insulation.

Operating Temperature: -65°C to +250°C

Voltage Rating: 300 Volts UL

This series is RoHS compliant.

Conductor Insulation Max Cond resistance
(ohms/m)		 Unit length
(m)(F)
Size Construction Diameter Nominal Thickness Diameter
(AWG) (NO./mm) (mm) (mm) (mm)
28 7/0.12 0.36 0.35 1.08 239 610/2000
26 7/0.16 0.48 0.35 1.18 150 610/2000
24 7/0.20 0.60 0.35 1.30 94.2 610/2000
22 19/0.15 0.75 0.35 1.45 59.4 305/1000
20 19/0.19 0.93 0.35 1.63 36.7 305/1000
18 19/0.235 1.17 0.35 1.87 23.2 305/1000
16 19/0.30 1.50 0.35 2.20 14.6 305/1000
14 19/0.37 1.85 0.35 2.55 8.96 305/1000
12 19/0.47 2.35 0.35 3.05 5.64 305/1000
10 37/0.43 3.00 0.35 3.70 3.55 305/1000
8 37/0.54 3.78 0.51 4.80 2.23 order
7 37/0.60 4.20 0.51 5.22 1.77
6 37/0.68 4.76 0.51 5.78 1.41
5 37/0.76 5.32 0.80 6.92 1.12
4 37/0.86 6.02 0.80 7.62 0.89
3 7/2.21 6.63 0.80 8.23 0.71
2 7/2.48 7.44 0.80 9.04 0.56
1 7/2.78 8.34 1.20 10.74 0.427
0 7/3.20 9.60 1.20 12.00 0.337
2/0 7/3.57 10.71 1.20 13.11 0.267
3/0 7/3.94 11.82 1.20 14.22 0.212
4/0 7/4.42 13.26 1.20 15.66 0.168


Single Core UL1726 14AWG Tinned Copper PFA Wire insulated
