Silicone rubber insulation tinned copper wire UL3122 300V 200C heater motor white black blue
Silicone rubber insulation tinned copper wire UL3122 300V 200C heater motor white black blue
Silicone rubber insulation tinned copper wire UL3122 300V 200C heater motor white black blue
Silicone rubber insulation tinned copper wire UL3122 300V 200C heater motor white black blue
Silicone rubber insulation tinned copper wire UL3122 300V 200C heater motor white black blue
Silicone rubber insulation tinned copper wire UL3122 300V 200C heater motor white black blue
Silicone rubber insulation tinned copper wire UL3122 300V 200C heater motor white black blue
Silicone rubber insulation tinned copper wire UL3122 300V 200C heater motor white black blue
Silicone rubber insulation tinned copper wire UL3122 300V 200C heater motor white black blue
Silicone rubber insulation tinned copper wire UL3122 300V 200C heater motor white black blue
Silicone rubber insulation tinned copper wire UL3122 300V 200C heater motor white black blue
Silicone rubber insulation tinned copper wire UL3122 300V 200C heater motor white black blue
Specifications
Brand Name :
Mysun
Model Number :
UL3122
Certification :
UL
Place of Origin :
China
MOQ :
1000M
Price :
USD0.1-2/m
Payment Terms :
T/T
Supply Ability :
1 million per day
Delivery Time :
5-10 workdays
Packaging Details :
305m/roll,610m/roll
Conductor type :
Stranded
Insulation material :
Silicone Rubber extruded
Conductor material :
Tinned Copper
Type :
Insulated
Color :
Red,Black,blue,yellow,green
Rated voltage :
300V
Cross section :
20awg
Core :
Single
Packing :
100m/Roll,wooden drum,1000ft /roll,305m per roll
Temp reistance :
200 Degree
Description

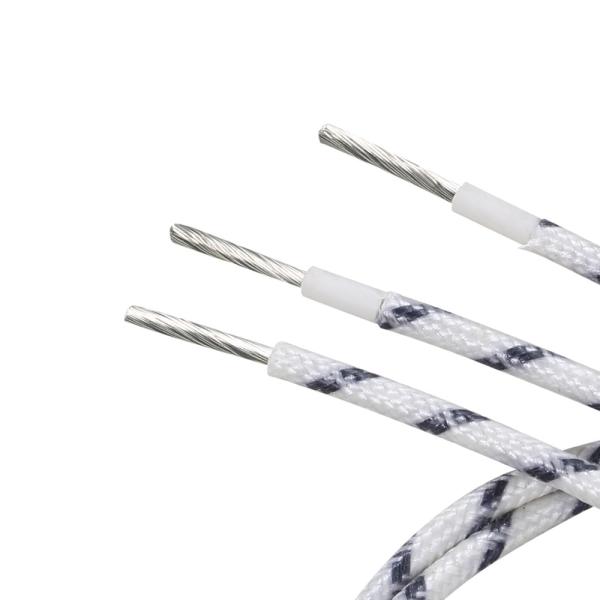

UL3122 silicone rubber wire

  • Flexibility: silicone rubber insulation with fiberglass braided sleeving
  • Maximum conductor resistance: 24.4 ohm/km
  • Resistant to oil, hot and cold, flexing
  • Rated temperature: -50°C to +200°C
  • Rated voltage: 300 V
  • Insulation potential strength: 2000 VAC/min
  • Passes the FT2 flame test
  • Available in 16AWG, 18 AWG, 20 AWG, and 22 AWG

ConductorInsulationMax Cond resistance
(ohms/m)		Unit length
(m)(F)
3KV6KV10KV20KV30KV
SizeConstructionDiameterNominal ThicknessDiameterNominal ThicknessDiameterNominal ThicknessDiameterNominal ThicknessDiameterNominal ThicknessDiameter
(AWG)(NO./mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)
287x0.120.370.501.370.701.771.002.371.302.971.703.77239610/2000
267x0.150.490.501.490.701.891.002.491.303.091.703.89150610/2000
2414x0.140.600.501.600.702.001.002.601.303.201.704.0094.2610/2000
2222x0.140.760.501.760.702.141.002.761.303.361.704.1659.4305/1000
2032x0.140.910.501.910.702.311.002.911.303.501.704.3136.7305/1000
1852x0.141.170.502.170.702.571.003.171.303.771.704.5723.2305/1000
1652x0.181.500.502.500.702.901.003.501.304.101.704.9014.6305/1000

Silicone rubber insulation tinned copper wire UL3122 300V 200C heater motor white black blue
