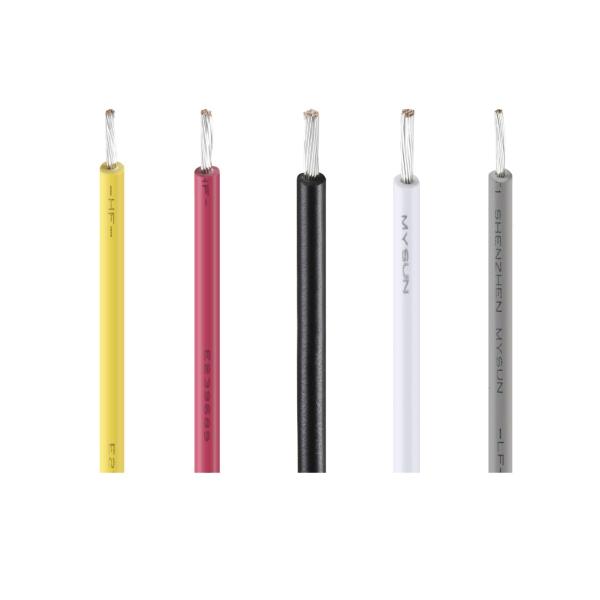

8AWG 133/0.28 600V XLPE Insulation Wires UL3271 Tinner copper
8AWG 133/0.28 600V XLPE Insulation Wires UL3271 Tinner copper
8AWG 133/0.28 600V XLPE Insulation Wires UL3271 Tinner copper
8AWG 133/0.28 600V XLPE Insulation Wires UL3271 Tinner copper
Specifications
Brand Name :
Mysun
Model Number :
UL3271
Certification :
ROHS/CCC/VDE/CCC/ISO9001:2008
Place of Origin :
Guangdong，China
MOQ :
3050meters
Price :
0.06~0.354USD per M
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500000 Meters per Day
Delivery Time :
7-15 working day
Packaging Details :
Standard packge: cardboard box Accept custom-made.
Conductor Type :
Stranded
Color :
Red
Usage :
Widely used in home appliance ,lighting ,heater,motor & generator,UAU,robot,industrial power etc
Rated Voltage :
750V
Rated Temperature :
125C
Size :
8AWG
Conductor :
Tinned Copper
Standard :
UL758
Insulation :
XLPE
Type :
insulated
Max.Cond Resistance :
2.23Ω/KM
Construction :
133/0.28
Meter :
305M/Roll
Description

Power wries and cables wholesale in dubai XLPE UL standard wires

UL3271 Specifications:

Nominal voltage:600-750V

Temperature range:125℃

Standard: UL3271

Insulation: xlpe

Conductor: Tinner copper

Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.

Product Parameter

Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.

Conductor
Insulation
Max.Cond Resistance
Unit length
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
(Ω/KM)
(M)(Ft)
30
7/0.10
0.30
0.78
1.86
381
305/1000
28
7/0.127
0.38
1.94
239
26
7/0.16
0.48
2.04
150
24
11/0.16
0.60
2.16
94.2
22
17/0.16
0.76
2.32
59.4
20
21/0.18
0.94
2.49
36.7
18
16/0.254
1.18
2.73
23.2
16
26/0.254
1.50
3.06
14.6
14
41/0.254
1.89
3.45
8.96
12
65/0.254
2.37
3.93
5.64
10
105/0.254
3.02
4.58
3.55
9
133/0.254
3.36
4.92
2.82
8
133/0.28
3.75
1.15
6.05
2.23
100/328
6
84/0.45
4.79
7.09
1.41
4
133/0.45
6.02
8.32
0.89
2
212/0.45
7.60
1.15
10.66
0.56

8AWG 133/0.28 600V XLPE Insulation Wires UL3271 Tinner copper
8AWG 133/0.28 600V XLPE Insulation Wires UL3271 Tinner copper

Our Product

8AWG 133/0.28 600V XLPE Insulation Wires UL3271 Tinner copper

Product Description

8AWG 133/0.28 600V XLPE Insulation Wires UL3271 Tinner copper

Package & Delivery

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days

8AWG 133/0.28 600V XLPE Insulation Wires UL3271 Tinner copper

Company Introduction

8AWG 133/0.28 600V XLPE Insulation Wires UL3271 Tinner copper

8AWG 133/0.28 600V XLPE Insulation Wires UL3271 Tinner copper
