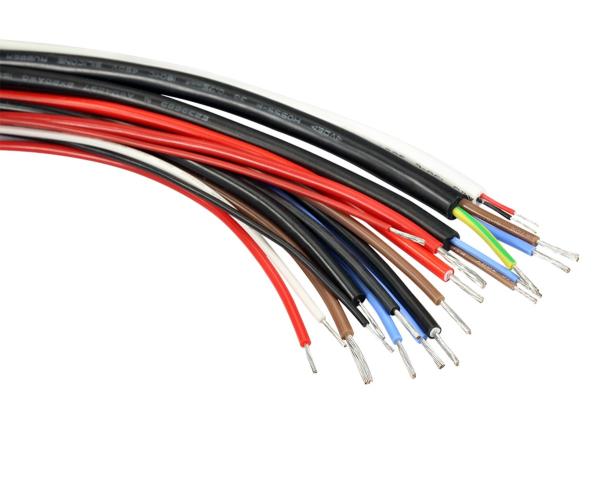

1.5mm VDE Silicone Insulated Wire 150C 300V H05SS-K For Led Lighting
1.5mm VDE Silicone Insulated Wire 150C 300V H05SS-K For Led Lighting
1.5mm VDE Silicone Insulated Wire 150C 300V H05SS-K For Led Lighting
1.5mm VDE Silicone Insulated Wire 150C 300V H05SS-K For Led Lighting
Specifications
Brand Name :
Mysun
Model Number :
VED H05SS-K
Certification :
ROHS/CCC/VDE/CCC/ISO9001:2008
Place of Origin :
Guangdong，China
MOQ :
3050meters
Price :
0.06~0.48USD per M
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500000 Meters per Day
Delivery Time :
7-15 working day
Packaging Details :
Standard packge: cardboard box Accept custom-made.
Conductor Type :
Stranded
Color :
Red
Usage :
Widely used in home appliance ,lighting ,heater,motor & generator,UAU,robot,industrial power etc
Rated Voltage :
450/750v
Rated Temperature :
180C
Size :
2.5MM
Conductor :
Tinned Copper
Standard :
VDE 0282-3
Insulation :
Silicone rebber
Type :
insulated
Max.Cond Resistance :
13.7 Ω/KM
Construction :
30/0.254
Description

1.5 mm VDE H05SS-K silicone wires 150C 300V for led lighting ​

VDE H05SS-K Specifications:

Nominal voltage:450/750V

Temperature range: 180℃

Standard: VDE H05SS-K

Insulation: Silicone Rubber

Conductor: Tinner copper

Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.

Product Parameter

Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.

Conductor Insulation Diameter
(mm)		 Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 First insulation thickness
(mm)		 Second insulation thickness
(mm)		 (Ω/KM) (M)(Ft)
0.5 16/0.2 0.75 0.6 0.6 3.15 40.1 200/656
0.75 24/0.2 1.13 0.6 0.6 3.53 26.7
1 32/0.2 1.31 0.6 0.6 3.71 20
1.5 30/0.254 1.6 0.8 0.7 4.6 13.7
2.5 50/0.254 2.08 0.8 0.7 5.28 7.16

Our Product

1.5mm VDE Silicone Insulated Wire 150C 300V H05SS-K For Led Lighting

Product Description

1.5mm VDE Silicone Insulated Wire 150C 300V H05SS-K For Led Lighting

Package & Delivery

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days

1.5mm VDE Silicone Insulated Wire 150C 300V H05SS-K For Led Lighting

Company Introduction

1.5mm VDE Silicone Insulated Wire 150C 300V H05SS-K For Led Lighting

1.5mm VDE Silicone Insulated Wire 150C 300V H05SS-K For Led Lighting
