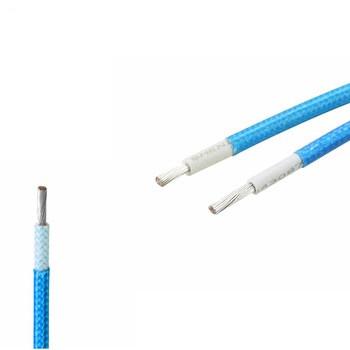

FT2 UL3172 Silicone Insulation Wire 100m/ Roll Fiberglass Braided Cable
FT2 UL3172 Silicone Insulation Wire 100m/ Roll Fiberglass Braided Cable
Specifications
Brand Name :
Mysun
Model Number :
UL3122
Certification :
UL
Place of Origin :
China
MOQ :
1000M
Price :
USD0.1-2/m
Payment Terms :
T/T
Supply Ability :
1 million per day
Delivery Time :
5-10 workdays
Packaging Details :
305m/roll,610m/roll
Conductor type :
Stranded
Insulation material :
Silicone Rubber extruded
Conductor material :
Tinned Copper
Type :
Insulated
Color :
Red,Black,blue,yellow,green
Rated voltage :
300V
Cross section :
1.00mm 2AWG
Core :
Single
Packing :
100m/Roll,wooden drum,1000ft /roll,305m per roll
Temp reistance :
200 Degree
Description

Fiberglass braided cable UL3172 high temperature resistance silicone coated wire

UL3172 specification:

  • Flexibility: silicone rubber insulation with fiberglass braided
  • Maximum conductor resistance: 24.4 ohm/km
  • Resistant to oil, hot and cold, flexing
  • Rated temperature: -50°C to +200°C
  • Rated voltage: 600 V
  • Insulation potential strength: 2000 VAC/min
  • Passes the FT2 flame test
  • Available in 16AWG, 18 AWG, 20 AWG, and 22 AWG

UL3172 demesion:

Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thincknesss
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
26 7/0.16 0.48 0.95 2.38 150 305/1000
24 7/0.2 0.61 0.95 2.51 94.2
22 7/0.254 0.77 0.95 2.67 59.4
20 7/0.31 0.94 0.95 2.84 36.7
18 7/0.39 1.19 0.95 3.09 23.2

FT2 UL3172 Silicone Insulation Wire 100m/ Roll Fiberglass Braided Cable

Service:
Shipment:
1. by express
2. by sea
Payment terms:
LC, TT, Western Union, Money Gram and PayPal
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
FQA

1. Are you a manufacturer?

A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;

and have 20 years leading experience in manufacturing wires.

2. What are your main products?

A:Our main products are SR wire,FEP wires ,xlpe pvc wires and Mica wires Wire Harnesses.

3.What certification did your products pass?

A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
