UL3122 300V 26AWG Stranded Silicone Insulated Wire FT2 flame Test
UL3122 300V 26AWG Stranded Silicone Insulated Wire FT2 flame Test
Specifications
Brand Name :
Mysun
Model Number :
UL3122
Certification :
UL
Place of Origin :
China
MOQ :
1000M
Price :
USD0.1-2/m
Payment Terms :
T/T
Supply Ability :
1 million per day
Delivery Time :
5-10 workdays
Packaging Details :
305m/roll,610m/roll
Conductor type :
Stranded
Insulation material :
Silicone Rubber extruded
Conductor material :
Tinned Copper
Type :
Insulated
Color :
Red,Black,blue,yellow,green
Rated voltage :
300V
Cross section :
1.00mm2AWG
Core :
Single
Packing :
100m/Roll,wooden drum,1000ft /roll,305m per roll
Temp reistance :
200 Degree
Description

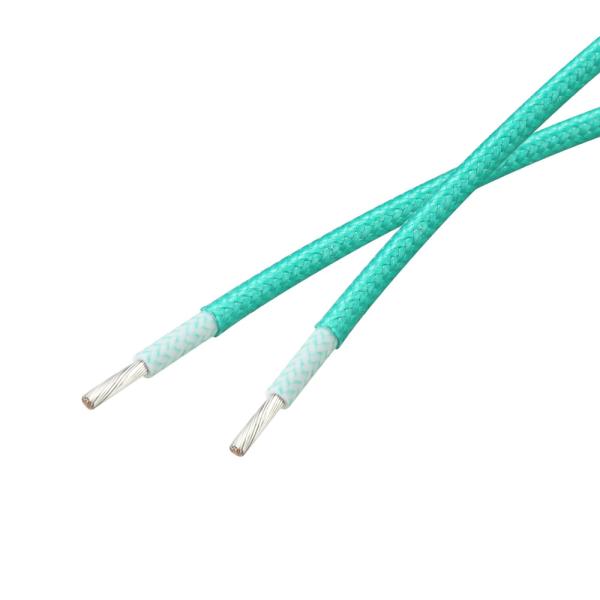

Fiberglass braided cable UL3122 high temperature resistance silicone coated wire

UL3122 specification:

  • Flexibility: silicone rubber insulation with fiberglass braided
  • Maximum conductor resistance: 24.4 ohm/km
  • Resistant to oil, hot and cold, flexing
  • Rated temperature: -50°C to +200°C
  • Rated voltage: 600 V
  • Insulation potential strength: 2000 VAC/min
  • Passes the FT2 flame test
  • Available in 16-26AWG,0.3sqmm-1.25sqmm

UL3122 demesion:

Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
26 7/0.16 0.48 0.60 1.68 143 305/1000
24 7/0.20 0.61 1.81 89.3
22 7/0.254 0.77 1.97 56.4
20 7/0.31 0.94 2.14 35.2
18 7/0.39 1.19 2.39 22.2
16 7/0.49 1.49 2.69 14
24 1/0.50 0.50 0.65 1.80 89.3 305/1000
22 1/0.65 0.65 1.95 56.4
20 1/0.81 0.81 2.11 35.2
18 1/1.02 1.02 2.32 22.2
16 1/1.20 1.20 2.50 14
24 11/0.16 0.61 0.60 1.81 89.3 305/1000
22 17/0.16 0.76 1.96 56.4
20 26/0.16 0.94 2.14 35.2
18 41/0.16 1.18 2.38 22.2
16 26/0.254 1.49 2.69 14
0.30mm² 12/0.18 0.71 0.60 1.91 59.78 305/1000
0.50mm² 20/0.18 0.92 2.12 40.1
0.75mm² 30/0.18 1.13 2.33 26.7
1.00mm² 40/0.18 1.31 2.51 20
1.25mm² 50/0.18 1.46 2.66 14.35

UL3122 300V 26AWG Stranded Silicone Insulated Wire FT2 flame Test
Service:

Shipment:
1. by express
2. by sea
Payment terms:
LC, TT, Western Union, Money Gram and PayPal
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
FQA

1. Are you a manufacturer?

A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;

and have 20 years leading experience in manufacturing wires.

2. What are your main products?

A:Our main products are SR wire,FEP wires ,xlpe pvc wires and Mica wires Wire Harnesses.

3.What certification did your products pass?

A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
