30 Awg Stranded Coated Copper Wire 0.3-13.26mm Diameter Fire Retardant
30 Awg Stranded Coated Copper Wire 0.3-13.26mm Diameter Fire Retardant
30 Awg Stranded Coated Copper Wire 0.3-13.26mm Diameter Fire Retardant
30 Awg Stranded Coated Copper Wire 0.3-13.26mm Diameter Fire Retardant
30 Awg Stranded Coated Copper Wire 0.3-13.26mm Diameter Fire Retardant
30 Awg Stranded Coated Copper Wire 0.3-13.26mm Diameter Fire Retardant
Specifications
Brand Name :
Mysun
Model Number :
AWM10362
Certification :
UL/cUL/CCC/CE/RoHS
Place of Origin :
Guangdong
MOQ :
5000 pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, T/T, Western Union,Paypal,HSBC
Supply Ability :
400000 Meters per Day
Delivery Time :
7-10 Working Day
Packaging Details :
305/610 Meters per Roll and 7 Rolls per Carton
Name :
PFA wire
Insulation :
PFA
Conductor :
Nickel-palted copper
Condutor Type :
Stranded
Color :
white,black,red,brown,yellow,blue,carnation
Rated Voltage :
600V
Rated Temperature :
250℃
Size :
30-2AWG
Testing Volatge :
3KV
Package :
305/610 Meters per Roll
Application :
Home appliance and headlamp
Condactor Constructure :
7/0.1 19/0.15 37/0.43
Flammability rating :
VW-1
Diameter :
0.3-13.26mm
Max.Cond Resistance :
361-0.168 Ω/KM
Description

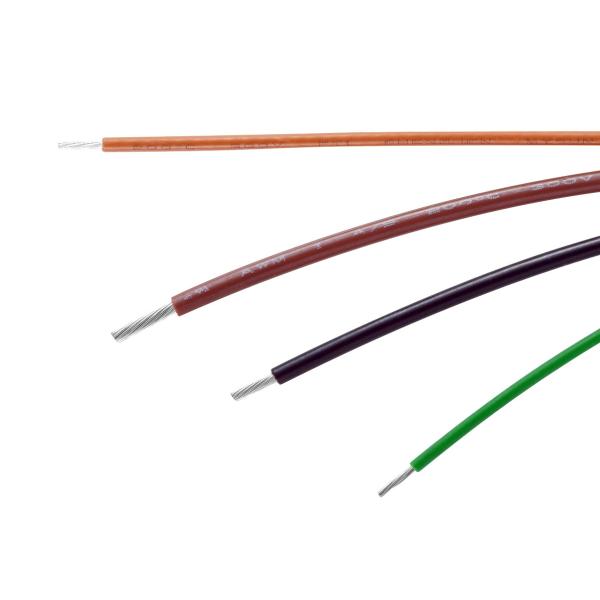

AWM10362 The PFA insulated electrical wire with Nickel -plated copper

Specifications:

Nominal voltage: 600V

Temperature range: 250℃

Standard: UL 758

Insulation:PFA

Conductor: Nickel-plated copper wire

Product dimensions:

Conductor Insulation Max.cond
resistance
(Ω/km)		 Unit Length
(m)(Ft)
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)
30 1/0.26 0.26 0.305 0.87 361 610/2000
7/0.10 0.30 0.91
28 1/0.32 0.32 0.305 0.93 227 610/2000
7/0.12 0.36 1.38
26 7/0.16 0.48 0.305 1.09 143 610/2000
19/0.10 0.48 1.11
24 1/0.50 0.50 0.305 1.11 89.3 610/2000
7/0.20 0.60 1.21
19/0.12 0.60 1.21
22 1/0.65 0.65 0.33 1.31 56.4 305/1000
7/0.254 0.76 1.42
19/0.15 0.75 1.41
20 1/0.81 0.81 0.33 1.47 35.2 305/1000
7/0.31 0.93 1.59
19/0.19 0.93 1.59
18 1/1.02 1.02 0.33 1.68 22.2 305/1000
7/0.39 1.17 1.83
19/0.235 1.17 1.83
16 1/1.30 1.30 0.33 1.96 14 305/1000
7/0.49 1.47 2.13
19/0.30 1.50 2.16
14 19/0.37 1.85 0.33 2.51 8.78 305/1000
12 19/0.47 2.35 0.33 3.01 5.53 305/1000
10 19/0.61 3.05 0.33 3.71 3.476 305/1000

30 Awg Stranded Coated Copper Wire 0.3-13.26mm Diameter Fire Retardant

FAQ:

1, What’s the MOQ?

One roll. 100M/200M/300M/305M/500M/Roll.

2, How to get the samples?

We have most of the commonly used samples in Stock.

We can offer the free samples immediately.

3, What’s the payment terms?

LC, TT, Western Union, Money Gram and PayPal

4, What’s the delivery date?

Most of the commonly used products are in Stock. We can arrange it within one day.

We will arrange the delivery date as your requirement while the Bulk Production.

5, How to visit your factory/company?

We are located in Shenzhen City, Guangdong Province, closed to Guangzhou, Dongguan and Hong Kong. Only one and a half hours drive away. Convenient for visit.

Service

Shipment:
1. by express
2. by sea

3. by air plane

If you have your own shipper,you can tell me in advance.

My targert is to give my best serivce for you and hope we can have a good cooperation!

Packaging : Hard cardboard carton ( Customizable)


Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days
