Light Weight Flexible Metal Coupling With Obvious Shock Absorption Effect No Wear
Light Weight Flexible Metal Coupling With Obvious Shock Absorption Effect No Wear
Specifications
Brand Name :
Baole
Model Number :
Flexible coupling with metal elastic element
Place of Origin :
China
Price :
Negotiable
Delivery Time :
7-15work days
Payment Terms :
T/T, Western Union, L/C
Standard or non-standard: :
standard or non-standard (according to customer requirements)
Material: :
forged steel, 45 #, 40Cr, 42CrMo, etc.
name :
Diaphragm coupling
Application :
Transmission and drive parts of mechanical equipment
Flexible or rigid: :
Rigidity can be compensated
Type :
JMIJ
Description

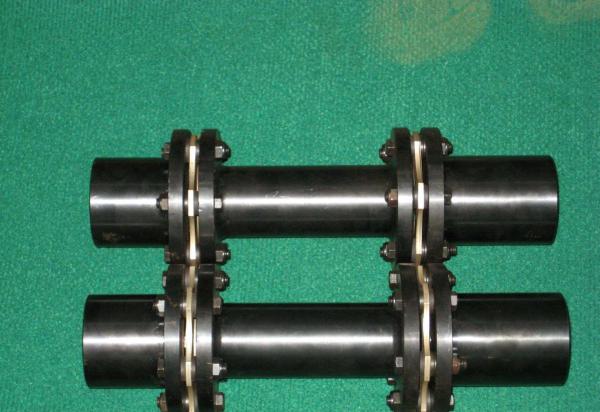

Diaphragm coupling details

The diaphragm coupling relies on the elastic deformation of the diaphragm to compensate the relative displacement of the two coupled shafts. It is a high-performance flexible coupling of metal strong components. It does not need oil, and has a compact structure, high strength and long service life. , No rotation gap, not affected by temperature and oil pollution. It has the characteristics of acid resistance, alkali resistance and corrosion resistance. It is suitable for high-speed, high-speed, and corrosive media working conditions.


Advantages of diaphragm couplings
1. It has obvious shock absorption effect, no noise and no wear.
2. Adapt to work in high temperature and harsh environment
3. High transmission efficiency, up to 99.86%.
4, simple structure, light weight, small size, convenient assembly and disassembly. It can be assembled and disassembled without moving the machine (refers to the type with intermediate shaft), without lubrication.
5, can accurately transfer speed, no slippage in operation, can be used for transmission of precision machinery

Application of diaphragm coupling
Suitable for medium, high speed and high torque shaft drive. And the shafting transmission of various mechanical devices with little load change is very versatile.
