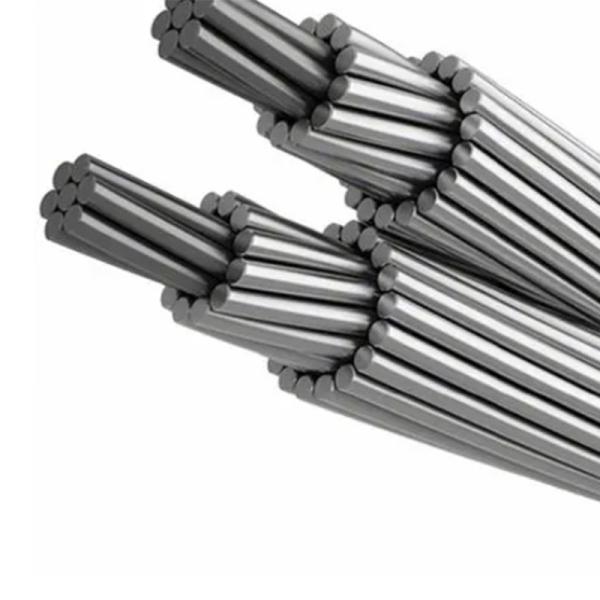

LJ 1kv Aluminum Stranded Wire 1.802Ω/km 2340N Breaking Force 43.5kg/km
LJ 1kv Aluminum Stranded Wire 1.802Ω/km 2340N Breaking Force 43.5kg/km
LJ 1kv Aluminum Stranded Wire 1.802Ω/km 2340N Breaking Force 43.5kg/km
LJ 1kv Aluminum Stranded Wire 1.802Ω/km 2340N Breaking Force 43.5kg/km
LJ 1kv Aluminum Stranded Wire 1.802Ω/km 2340N Breaking Force 43.5kg/km
LJ 1kv Aluminum Stranded Wire 1.802Ω/km 2340N Breaking Force 43.5kg/km
Specifications
Brand Name :
Jiangnan
Model Number :
Bare Cable
Certification :
CE，CCC，SABS，TUV，RoHS
Place of Origin :
Jiangsu China
MOQ :
100m
Price :
$0.40 - $4.00/ meter
Supply Ability :
50000meters<7days
Packaging Details :
Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Effect :
transmit power
Insulation Material :
Rubber
Length :
Custom Length
Conductor :
Alulminum
Voltage :
0.6/1kv
scope of application :
Aluminum alloy stranded wire, aluminum stranded wire and steel cored aluminum stranded wire are suitable for overhead power lines
shape :
round
color :
silver
Description
Products Description

1. Product application

The aluminum stranded wire is a bare wire, and the aluminum stranded wire mainly plays the role of transmitting electric energy. Depending on the voltage, the cross-sectional area of the conductor is also different.

2. Product model

Model Name Conditions of Use Remark
LJ Aluminum stranded wire It is used in general distribution lines with small force and small span no contact with trees

3. Product implementation standards

The aluminum stranded wire implements the GB/T1179-2017 "round wire concentric stranded overhead wire" standard

4. Product Technical Parameters

Nominal section
(mm)		 Structure number/diameter
(mm)		 Calculation section
(mm)		 outer diameter
(mm)		 DC resistance not greater than
(Ω/km)		 Calculate breaking force
(N)		 calculate weight
(kg/km)		 delivery length not less than(m)
16 7/1.70 15.89 5.10 1.802 2340 43.5 4000
25 7/2.15 25.41 6.45 1.127 4355 69.6 3000
35 7/2.50 34.36 7.50 0.8332 5760 94.1 2000
50 7/3.00 49.48 9.00 0.5786 7930 135.5 1500
70 7/3.60 71.25 10.80 0.4018 10950 195.1 1250
95 7/4.16 95.14 12.48 0.3009 14450 260.5 1000
120 19/2.85 121.21 14.25 0.2373 19420 333.5 1500
150 19/3.15 148.07 15.75 0.1943 23310 407.4 1250
185 19/3.50 182.80 17.50 0.1574 28440 503.0 1000
210 19/3.75 209.85 18.75 0.1371 32260 577.4 1000
240 19/4.00 238.76 20.00 0.1205 36260 656.9 1000
300 37/3.20 297.57 22.40 0.09689 46850 820.4 1000
400 37/3.70 397.83 25.90 0.07247 61150 1097 1000
500 37/4.16 502.90 29.12 0.05733 76370 1387 1000
630 61/3.63 631.30 32.67 0.04577 91940 1744 800
800 61/4.10 805.36 36.90 0.03588 115900 2225 800

Related models
The models of ACSR are: JL/G1A JL/G1B JL/G2A JL/G2B JL/G3A
Among them: G1A or G1B refers to ordinary strength steel wire.
G2A or G2B refers to high strength steel wire.
G3A refers to extra high strength steel wire.
Model difference: Take JL/G1A-240/30 ACSR as an example.
It is represented by JL/G1A-240/30 in the national standard (GB/T1179-2008);
It is represented by LGJ-240/30 in the national standard (GB/T1179-1983).

Main application
For high-voltage transmission lines, due to the limited path of the line, it is impossible to erect multiple lines on one path. People have come up with the idea of using one path, one set of iron towers, and hanging multiple wires, that is, one line is equivalent to erecting multiple lines. Line method; for 500KV transmission lines, most of our country adopts the method of hanging four wires. This method of wiring is called paralleling on the same tower

FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, we do.
