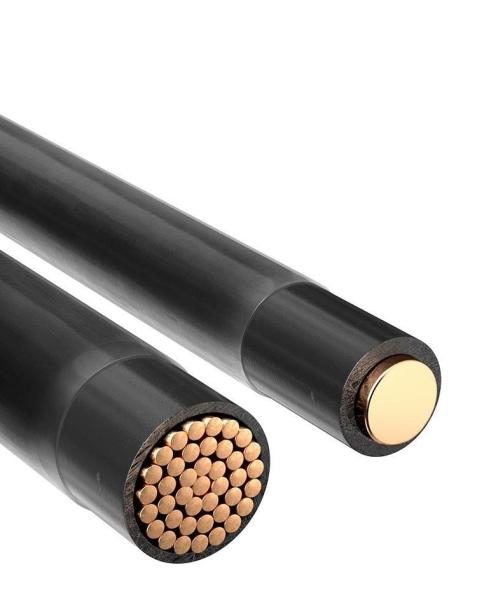

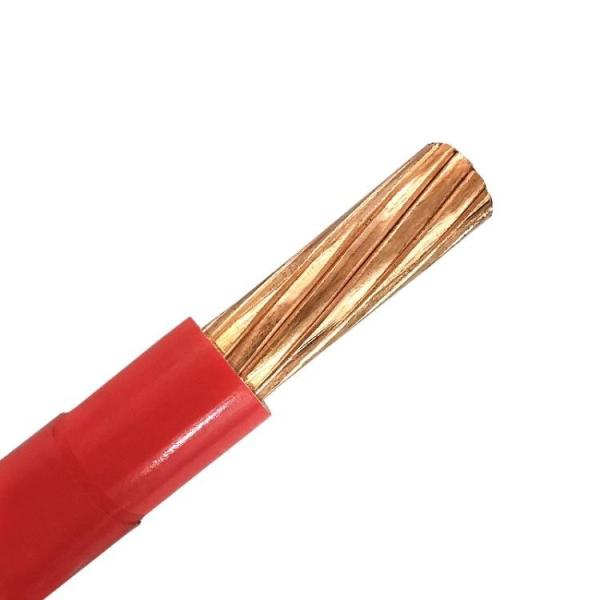

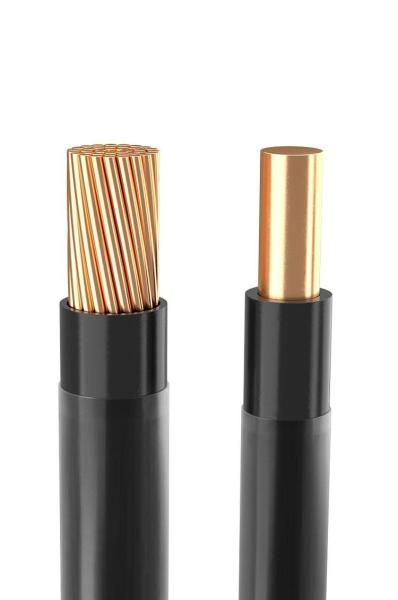

600V THHN THWN Wire 125MM2 150MM2 250MM2 PVC Insulated Electrical Wire
600V THHN THWN Wire 125MM2 150MM2 250MM2 PVC Insulated Electrical Wire
600V THHN THWN Wire 125MM2 150MM2 250MM2 PVC Insulated Electrical Wire
600V THHN THWN Wire 125MM2 150MM2 250MM2 PVC Insulated Electrical Wire
600V THHN THWN Wire 125MM2 150MM2 250MM2 PVC Insulated Electrical Wire
600V THHN THWN Wire 125MM2 150MM2 250MM2 PVC Insulated Electrical Wire
600V THHN THWN Wire 125MM2 150MM2 250MM2 PVC Insulated Electrical Wire
600V THHN THWN Wire 125MM2 150MM2 250MM2 PVC Insulated Electrical Wire
Specifications
Brand Name :
Jiangnan
Model Number :
THWN;THHN
Certification :
CE, RoHS, CCC,ISO
Place of Origin :
Jiangsu China
MOQ :
1 Roll
Price :
$0.10 - $2.00/ meter
Supply Ability :
50000meters/7days
Packaging Details :
Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Application :
Building
Conductor Type :
solid or stranded
Conductor :
99.9% Pure Copper
Insulation :
PVC Insulation Cable
Standard :
UL83 ASMTB1,B2,B3
MOQ :
1 Roll
Service :
OEM ODM Accept
Type :
low voltage cable
Conductor Material :
Copper
Insulation Material :
PVC
Jacket :
Nylon Jacket
Product name :
THHN;THWN
Color :
Accept Customized
Sample :
Free Sample
Rated Voltage :
0.6/1KV
Description

600V PVC Insulation Nylon Jacket Copper THHN Wire Manufacturers 50MM2 125MM2 150MM2 250MM2 500MM2 THHN Building Wire Cab

THWN or THHN
PVC Insulation, Nylon Jacket, 600 Volts
APPLICATION
Copper THHN/THWN-2 conductors are primarily used in conduit and cable trays, when approved, for services, feeders and branch circuits in commercial or industrial applications .
These conductors have multiple ratings
Depending upon the product application, allowable temperatures are as follows: • THHN or T90 Nylon- Dry locations not to exceed 90° C.
• THWN-2- Wet or dry locations not to exceed 90°C or locations not to exceed 75°C when exposed to oil. • THWN- Wet locations not to exceed 75°C or dry locations not to exceed 90°C or locations not to exceed 75°C when exposed to oil.
CONSTRUCTION
Conductors
Either solid or stranded soft drawn copper,
per ASTM Standards
Insulation
Heat and moisture resistant colored polyvinyl chloride
(PVC) insulation
Nylon Jacket
a clear nylon (polyamide) or UL-listed equal jacket,
which provides abrasion resistance
Production Description
Product Feature
Product Advantages
Our Factory
Certifications
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight.
Pls kindly contact us.

5. Does your company accept OEM production?
Yes,we do.
