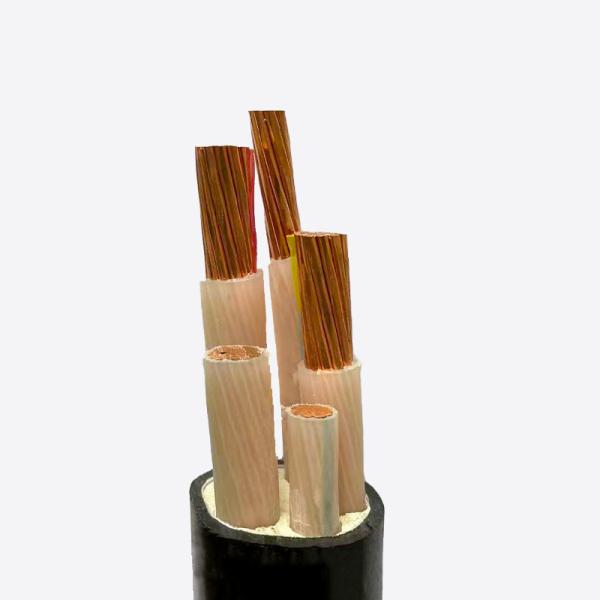

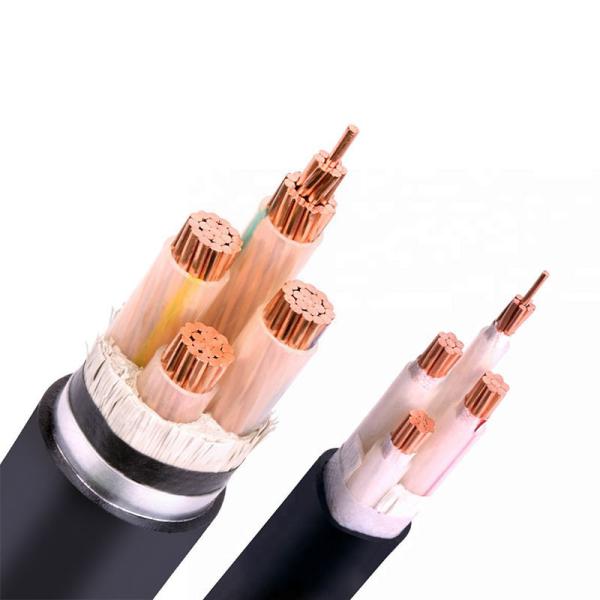

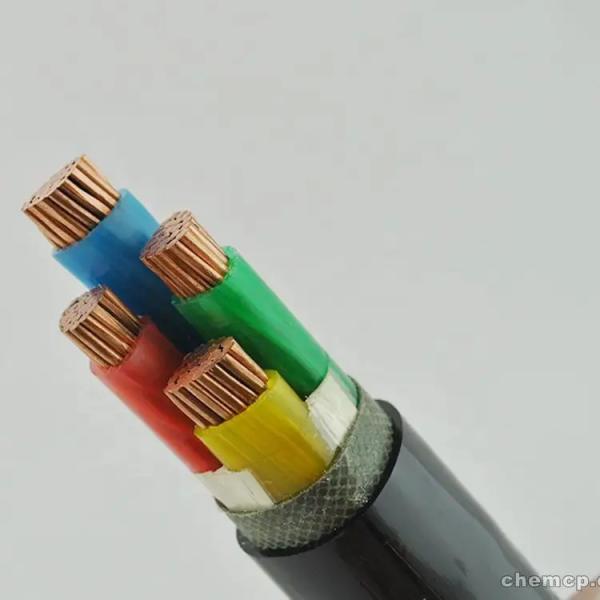

YJV32 Low Smoke Low Halogen Cable 3*300mm 3*400mm Armored Electric Cable
YJV32 Low Smoke Low Halogen Cable 3*300mm 3*400mm Armored Electric Cable
YJV32 Low Smoke Low Halogen Cable 3*300mm 3*400mm Armored Electric Cable
YJV32 Low Smoke Low Halogen Cable 3*300mm 3*400mm Armored Electric Cable
YJV32 Low Smoke Low Halogen Cable 3*300mm 3*400mm Armored Electric Cable
YJV32 Low Smoke Low Halogen Cable 3*300mm 3*400mm Armored Electric Cable
YJV32 Low Smoke Low Halogen Cable 3*300mm 3*400mm Armored Electric Cable
YJV32 Low Smoke Low Halogen Cable 3*300mm 3*400mm Armored Electric Cable
YJV32 Low Smoke Low Halogen Cable 3*300mm 3*400mm Armored Electric Cable
YJV32 Low Smoke Low Halogen Cable 3*300mm 3*400mm Armored Electric Cable
YJV32 Low Smoke Low Halogen Cable 3*300mm 3*400mm Armored Electric Cable
YJV32 Low Smoke Low Halogen Cable 3*300mm 3*400mm Armored Electric Cable
YJV32 Low Smoke Low Halogen Cable 3*300mm 3*400mm Armored Electric Cable
YJV32 Low Smoke Low Halogen Cable 3*300mm 3*400mm Armored Electric Cable
Specifications
Brand Name :
Jiangnan
Model Number :
YJV32
Certification :
CE，CCC，SABS，TUV，RoHS
Place of Origin :
Jiangsu China
MOQ :
1000 Meters
Price :
$1.6/meter
Supply Ability :
50000meters<7days
Delivery Time :
3-7work days
Packaging Details :
Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Application :
truck parts
Conductor Type :
Solid
Product name :
YJV32 Armored cable
Standard :
JB/T 8734.5-2016
Material :
99.995% Pure Copper
Size :
Customized Size
Type :
insulated, electrical cable wires copper for house wiring
Conductor Material :
Copper
Insulation Material :
PVC
Insulation :
PVC Insulation Cable
MOQ :
1000 meters
Length :
50M;100M
Color :
Customer's Requirement
Description
Products Description

YJV32 copper core XLPE insulated thin steel wire armored PVC sheathed power cable

scope of application
Indoors, tunnels, cable trenches, shafts or buried laying, etc., can withstand a certain tension.

Global recruitment of brand agents ,OA Payment acceptable
We can customize the size according to your requirement
● OEM service available based on official & legal authorization.
●Strict quality control system.
●Rapid delivery and feedback.
●Excellent quality with reasonable price.
●Professional teamwork service for you actively.
●Stock available, Free sample is available.
1.Standard
The cable is manufactured according to the standard GB 12706-91 or IEC60502.It is suitable to be installed in the power
transmission and distribution lines with rated voltage of 0.6/1 KV(U0/U).
2.Maximum rated temperature
(1)The maximum operating temperature of cores shall not exceed 90C, when the cable is used for long period. The temperature of cores shall not exceed 250℃ at short circuit fors seconds.
(2)The installation of cables is not limited by the difference of level along the route. The ambient temperature should not be below 0℃ during installation. The minimum bending radius shall not be less than 10 times of the cable overall diameter when laying.

aximum DC resistance of conductor at 20°C

Conductor Nominal Section mm2 Maximum DC resistance of conductor at 20°C (Ω/km)
copper aluminum
1 18.1 --
1.5 12.1 --
2.5 7.41 12.1
4 4.61 7.41
6 3.08 4.61
10 1.83 3.08
16 1.15 1.91
25 0.727 1.20
35 0.524 0.868
50 0.387 0.641
70 0.268 0.443
95 0.193 0.320
120 0.153 0.253
150 0.124 0.206
185 0.0991 0.164
240 0.0754 0.125
300 0.0601 0.100
400 0.0470 0.0778
500 0.0366 0.0605
630 0.0283 0.0469
800 0.0221 0.0367
Power frequency AC voltage test Test voltage 3.5kV/5min

Product Details
Product model and application
Model
Name
APPLICATION
Copper core
aluminium core
YJV
YJLV
XLPE insulated PVC sheathed power cable
Can be laid at indoor, tunnel and tube. Cable cannot under take mechanism outside force
YJY
YJLY
XLPE insulated PE sheathed power cable
Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force
YJV22
YJLV22
XLPE insulated steel tape armored PVC sheathed power cable
Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force
YJV23
YJLV23
XLPE insulated steel tape armored PE sheathed power cable
Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force
YJV32
YJLV32
XLPE insulated fine steel wire armored PVC sheathed power cable
Can be laid at indoor, underground and mining well. Cable can undertake mechanism outside force
More Models
Recommended by seller

H05VV-F H03VV-F 1.5mm 2.5mm 4mm 6mm round flexible electric multi core 3 core wire RVV cable

$0.50 - $2.50 / meter

100 meters

Hot H05V-U H07V-R H07V-U 1.5mm 2.5mm 4mm 6mm 10mm 25mm Copper core PVC Insulated Electrical Cable and Wire Price Building Wire

$0.10 - $2.00 / meter

100.0 meters

BVR 4mm 50M 450/750V copper conductor PVC insulated unsheathed wire house wiring electrical cable pvc wire

$1.20 / meter

100 meters

Hot Copper Core PVC Insulated Cables Electrical Wires House Wiring Cable 2.5mm 100M 450/750V Copper 99.995% pvc wire

$0.12 - $0.45 / meter

100.0 meters

OEM Copper or aluminium Conductor Wire XLPE/PVC Insulated Cable Stranded House Wiring Building Cable NYY NYY-J NYY-O power cable

$0.50 - $3.50 / meter

50.0 meters

Electric Wire cable RG6 RG11 RG58 RG59 RG179 RG213 Oxygen-free copper core coaxial cable for outdoor cable TV line

$0.10 - $3.00 / meter

1000.0 meters

0.6/1 KV XLPE Copper wire PVC Insulation Electrical cable wiring electrical cable and wire

$1.68 / meter

1000.0 meters

NH-RV 2 3 4 Copper Core conductor PVC Insulated Power Cable Flexible cable BC Oxygen-Free Copper PVC Insulation electrical wires

$0.32 / meter

1000 meters

Application
More Products
Exhibition
FAQ

1.When can I get the price? We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price,please call us or tell us in your e-mail so that we will regard your inquiry priority.

2.How can I get a sample to check your quality? After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

3.How long can I expect to get the sample? After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.

4.What about the lead time for mass production? Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
