High Temperature 3 / 8'' Fuel Hose SAE 30R7 with High Tensile Fiber Braiding
High Temperature 3 / 8'' Fuel Hose SAE 30R7 with High Tensile Fiber Braiding
High Temperature 3 / 8'' Fuel Hose SAE 30R7 with High Tensile Fiber Braiding
High Temperature 3 / 8'' Fuel Hose SAE 30R7 with High Tensile Fiber Braiding
High Temperature 3 / 8'' Fuel Hose SAE 30R7 with High Tensile Fiber Braiding
High Temperature 3 / 8'' Fuel Hose SAE 30R7 with High Tensile Fiber Braiding
High Temperature 3 / 8'' Fuel Hose SAE 30R7 with High Tensile Fiber Braiding
High Temperature 3 / 8'' Fuel Hose SAE 30R7 with High Tensile Fiber Braiding
Specifications
Brand Name :
PASSION
Model Number :
ID 3/8''
Certification :
ISO 9001-2008, CE
Place of Origin :
Zhejiang China
MOQ :
1,000 m
Price :
Negotiable
Payment Terms :
T/T, LC, Paypal or Western Union
Supply Ability :
400,000 m per month
Delivery Time :
20 days after received the advance payment
Packaging Details :
Wrapped by transparent OPP film, pallet, color packing can be customized
Material :
Nitrile Rubber
Reinforcement Layer :
High tensile polyester fiber braided
Color :
Black
I.D size :
9.5mm +/-0.3
OD size :
17mm+/-0.5
Standard Length :
50m, 100m
Surface :
Smooth
Standard :
SAE 30R7
Working Pressure :
15bar (215psi)
Burst Pressure :
45bar (645psi)
Packing :
Strong OPP film and woven stripes wrapped
Temperature Range :
-30° to +100°C
Trademark :
PASSION or OEM
Description

High Temperature 3 / 8'' Fuel Hose SAE 30R7 with High Tensile Fiber Braiding

Inner Diameter Outer Diameter Working Pressure Burst Pressure Length Measurement Weight
inch mm mm bar psi bar psi m/roll cbm/roll kg/m
3/16" 5 11.5 20 300 60 900 100 0.028 0.15　
1/4" 6 13 20 300 60 900 100 0.031 0.17
5/16" 8 15 20 300 60 900 100 0.0353 0.216
3/8" 10 17 20 300 60 900 100 0.0442 0.24
1/2" 12.7 22 20 300 60 900 100 0.0756 0.428

Specifications:

High Temperature 3 / 8'' Fuel Hose SAE 30R7 with High Tensile Fiber Braiding

High Temperature 3 / 8'' Fuel Hose SAE 30R7 with High Tensile Fiber Braiding

Description:

1, Construction: Tube: Smooth Black Fuel Resistant nitrile synthetic rubber
Reinforcement: High tensile polyester fiber braided.
Cover: Smooth Black Ozone and Abrasion Resistant nitrile synthetic rubber

2, Appearance: Smooth finish, Black

3, Applicable temperature: -30℃ to +100℃

4, Bend radius: 10 times of proper diameter dimension

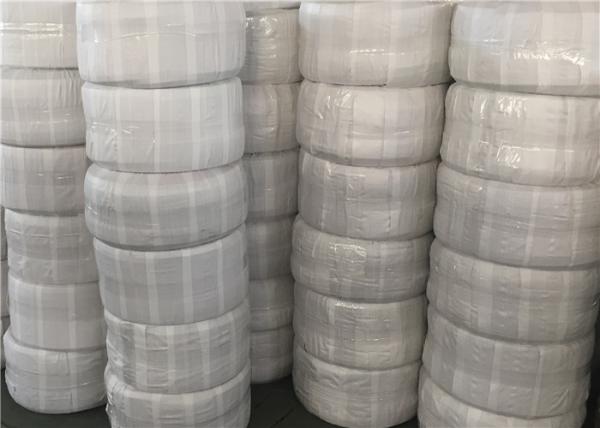

5, Package: Common packed by OPP transparent film and woven stripes wrapped

The pallet and woven bag packing are available, the color sticker can be offerd,

but shall be charged additionally.

6, Trademark: PASSION, OEM is available

7, Property: Good oil resistance and excellent flexibility. Without craze crack or fracture after 180°bending over or doubling

8, Certificates: CE, SGS

9, Main market: Middle East, Europe and America

10: Joint Connection: Customized as your request

Applications:

It is applied to transfer of unleaded, leaded, diesel & E10 fuels.

Competitive Advantage:

Hangzhou Paishun Rubber And Plastic Co., Ltd, a leading rubber hose manufacturer in the east of China.

8 years manufacturing experience, 50 sets of braiders and 3 production lines.

Paishun has a strict quality inspection team, every shipment would be tested before shipment.

Free sample can be offered, we are happy to customize as your request.

High Temperature 3 / 8'' Fuel Hose SAE 30R7 with High Tensile Fiber Braiding

Cooperative Brands:

WELDMAN, Max Weld, SAEFLEX, BALFLEX

Paishun's Slogan:

PASSION FOR HOSE! PASSION FOR YOU!
