1 Inch Industrial Two Layers Polyester Fiber Braided Rubber Air Hose WP 20 bar 300 psi
1 Inch Industrial Two Layers Polyester Fiber Braided Rubber Air Hose WP 20 bar 300 psi
1 Inch Industrial Two Layers Polyester Fiber Braided Rubber Air Hose WP 20 bar 300 psi
1 Inch Industrial Two Layers Polyester Fiber Braided Rubber Air Hose WP 20 bar 300 psi
1 Inch Industrial Two Layers Polyester Fiber Braided Rubber Air Hose WP 20 bar 300 psi
1 Inch Industrial Two Layers Polyester Fiber Braided Rubber Air Hose WP 20 bar 300 psi
1 Inch Industrial Two Layers Polyester Fiber Braided Rubber Air Hose WP 20 bar 300 psi
1 Inch Industrial Two Layers Polyester Fiber Braided Rubber Air Hose WP 20 bar 300 psi
Specifications
Brand Name :
PASSION
Model Number :
Air Hose
Certification :
CE, ISO
Place of Origin :
Zhejiang, China
MOQ :
1000 meters
Price :
USD 2.98 per meter
Payment Terms :
T/T, Western Union, MoneyGram, L/C, PayPal
Supply Ability :
100000 meters per week
Delivery Time :
30 days for a 20' container
Packaging Details :
Transparent OPP film or as your request
Material :
NR & SBR synthetic rubber
Reinforcement :
Two layers of high tensile polyester fiber braided.
Outer Cover :
NR & SBR synthetic rubber
Temperature :
-30℃~+80℃
ID :
1"
WP :
20 bar 300 psi
BP :
60 bar 900 psi
Description

1 Inch WP 20 bar 300 psi Industrial Rubber Two Layers Polyester Fiber Braided Rubber Air Hose

If you need other sizes or specification, please let us know.

We can customize for you!

Detail Information of Product

Name Smooth Rubber Air Hose
Material NR or SBR
Size 1"
Color Black, Red, Yellow, Blue, Green, Orange, etc.
Inner Tube NR or SBR synthetic rubber
Reinforcement Two Layers High Tensile polyester fiber braided
Cover Compound NR or SBR synthetic rubber
Temperature Range -30℃~+80℃
Application Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc.
Certification CE approved
Length 50m, 100m.
Capability Transfering low temperature air.
OEM Accepted Yes
Fitting We can provide as your requirement.
Printing Word We can print LOGO or something else as your requirement.
Packaging Detail We pack the goods with poly stripes or as your request.
Delivery According to your quantity, about 30 days for a 20' container.

Specification of Product

Item code Inner Diameter Outer Diameter Working Pressure Burst Pressure Length Measurement Weight
inch mm mm bar bar m cbm/roll kg/m
PRA-05 3/16" 5 11.5 20 60 100 0.02 0.15
PRA-06 1/4" 6 13 20 60 100 0.025 0.17
PRA-08 5/16" 8 15 20 60 100 0.03 0.22
PRA-10 3/8" 10 17 20 60 100 0.04 0.26
PRA-13 1/2" 13 21 20 60 100 0.07 0.4
PRA-16 5/8" 16 24 20 60 50 0.06 0.45
PRA-19 3/4" 19 29 20 60 50 0.07 0.7
PRA-25 1" (1b) 25 36 12 36 50 0.09 0.85
PRA-25-2 1" (2b) 25 37 20 60 50 0.1 0.95

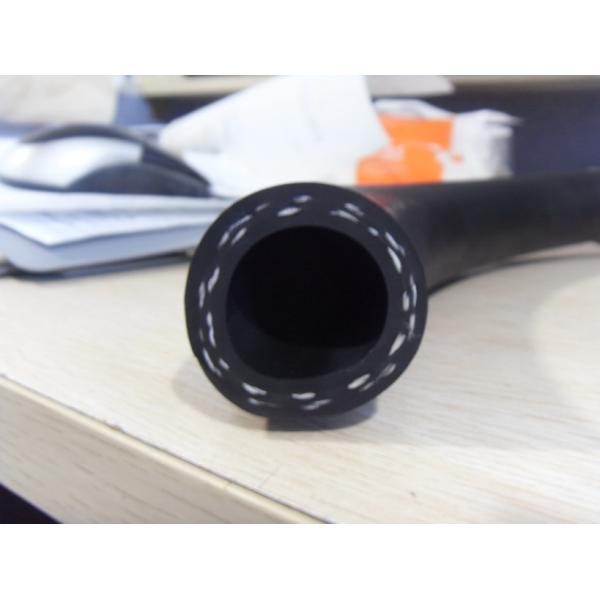

Picture of Product

1 Inch Industrial Two Layers Polyester Fiber Braided Rubber Air Hose WP 20 bar 300 psi

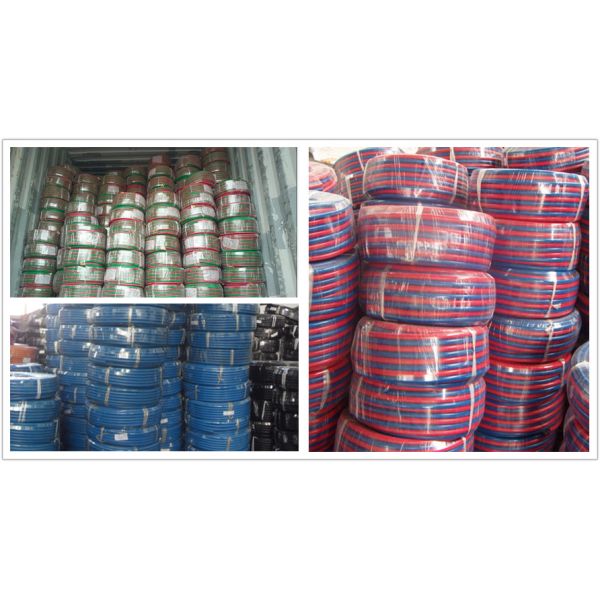

Picture of Packing

1 Inch Industrial Two Layers Polyester Fiber Braided Rubber Air Hose WP 20 bar 300 psi

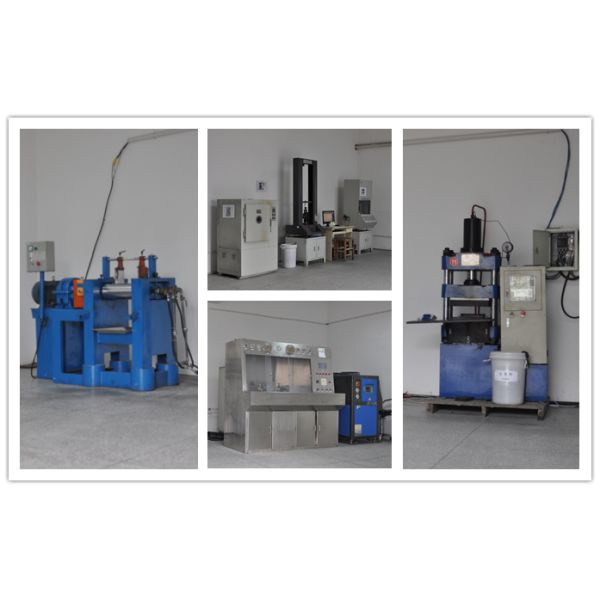

Test Machines

1 Inch Industrial Two Layers Polyester Fiber Braided Rubber Air Hose WP 20 bar 300 psi

Competitive Advantage

1. Professional manufacturer for over 10 years.

2. We can provide free hose sample.

3. Hydraulic rubber hose is also served.

4. Other sizes can be customized.

5. We can print words and your logo on the hose as your request.

6. We can package the goods as your request.

7, We test the products before shipped out. We have complete line of test machines.
