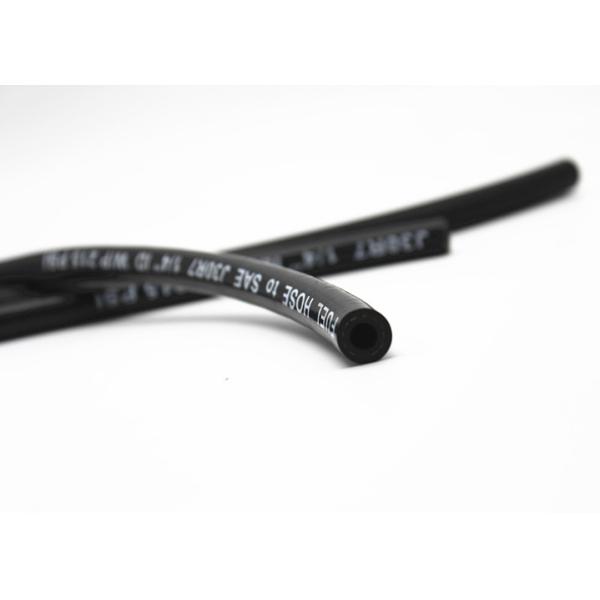

Low Pressure SAE J30R7 Rubber Fuel Hose , Fiber Reinforced Hose for Automotive
Low Pressure SAE J30R7 Rubber Fuel Hose , Fiber Reinforced Hose for Automotive
Low Pressure SAE J30R7 Rubber Fuel Hose , Fiber Reinforced Hose for Automotive
Low Pressure SAE J30R7 Rubber Fuel Hose , Fiber Reinforced Hose for Automotive
Low Pressure SAE J30R7 Rubber Fuel Hose , Fiber Reinforced Hose for Automotive
Low Pressure SAE J30R7 Rubber Fuel Hose , Fiber Reinforced Hose for Automotive
Specifications
Brand Name :
PASSION
Model Number :
1/4", 3/4", 3/8", 1"
Certification :
ISO 9001:2008; CE
Place of Origin :
ZHEJIANG (CHINA)
MOQ :
1000m
Price :
0.81USD/M-2.47USD/M
Payment Terms :
D/A, L/C, D/P, T/T
Delivery Time :
30DAYS upon receipt of deposit
Packaging Details :
Well packed in high quality braided strap for export.
Inner Tube :
Fuel Resistant Inner Tube
Reinforcement :
High Tensile Braided Polyester
Cover :
Fuel Resistant Outer Tube
Temperature :
-35℃ to +100℃
Standard Color :
Black
Application :
For use with gasoline, diesel fuel, lubrication oil, or the vapor present in either the fuel system or in the crankcase of internal combustion engines in mobile, stationary, and marine applications.
Standard length :
100m
Working Pressure :
100psi
Burst Pressure :
400psi
Inner Diameter :
3/16" - 1/2"
Outer Diameter :
11.5 mm-22mm
Description

Low Pressure SAE J30R7 Fuel Line Hose Fiber Reinforced Hose for Automotive

Rubber Fuel Hose (Smooth Surface)


Construction -

Tube: Fuel Resistant Inner Tube
Reinforcement: High tensile polyester fiber braided.
Cover: Fuel Resistant Outer Tube


Temperature: -35℃ to +100℃


Standard Color: Black


Application:
For use with gasoline, diesel fuel, lubrication oil, or the vapor present in either the fuel system or
in the crankcase of internal
combustion engines in mobile, stationary, and marine applications.
Standard length: 100m.


Specification:

Item code Inner Diameter Outer Diameter Working Pressure Burst Pressure Length Measurement Weight
PSF inch mm mm bar psi bar psi m cbm/roll kg/m
PSF-03 3/16" 5 11.5 7 100 28 400 100 0.028 0.15
PSF-04 1/4" 6 13 7 100 28 400 100 0.031 0.17
PSF-05 5/16" 8 15 7 100 28 400 100 0.0353 0.216
PSF-06 3/8" 10 17 7 100 28 400 100 0.0442 0.24
PSF-08 1/2" 12.7 22 7 100 28 400 100 0.0756 0.428

Low Pressure SAE J30R7 Rubber Fuel Hose , Fiber Reinforced Hose for Automotive
