Outer Stainless Steel Braided Compressed Air Hose Pure Rubber Tube Inside
Outer Stainless Steel Braided Compressed Air Hose Pure Rubber Tube Inside
Outer Stainless Steel Braided Compressed Air Hose Pure Rubber Tube Inside
Outer Stainless Steel Braided Compressed Air Hose Pure Rubber Tube Inside
Outer Stainless Steel Braided Compressed Air Hose Pure Rubber Tube Inside
Outer Stainless Steel Braided Compressed Air Hose Pure Rubber Tube Inside
Outer Stainless Steel Braided Compressed Air Hose Pure Rubber Tube Inside
Outer Stainless Steel Braided Compressed Air Hose Pure Rubber Tube Inside
Specifications
Brand Name :
PASSION
Model Number :
ID 4mm, 5mm, 6mm, etc
Certification :
ISO 9001-2008, CE
Place of Origin :
Zhejiang China
MOQ :
1,000m
Price :
Negotiated
Payment Terms :
Western Union, MoneyGram, L/C, T/T, PayPal
Supply Ability :
100,000 m per month
Delivery Time :
30 days for 20' FCL
Packaging Details :
Well packed by transparent opp film or poly stripe, or as your request.
Material :
SBR, NBR, or EPDM
Color :
Black, White, etc
Temperature :
-40℃ - +150℃
Length :
50m, 100m
Work Pressure :
10 BAR or 20 BAR
Outer cover :
Stainless steel or Aluminium wire
Inner tubee :
Pure rubber or with fiber braided
Description

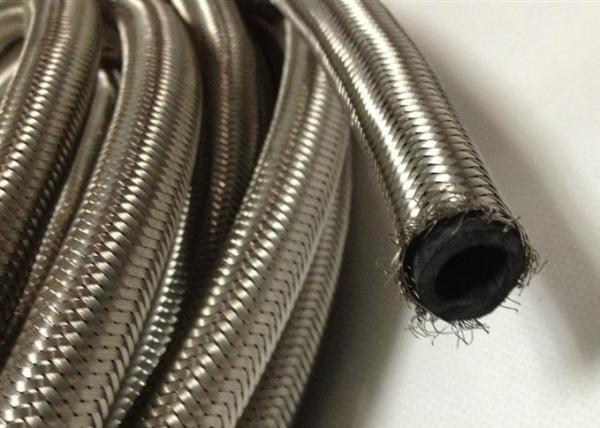

Outer Stainless Steel Braided Compressed Air Hose Pure Rubber Tube Inside

Structure:

Tube: Pure rubber tube. It can be designed as to be heat, oil, acid, alkaline and wear resistant hoses according to the requirements of application.

Reinforcement: High tensile polyester fiber braided.

Outer cover: Stainless steel wire, or Aluminium wire, which is used for strengthening pressure

or protection.

Temperature: -40℃ - +150℃, customized according to application.

Tube color: Black, etc.

Application: Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc.

Standard length: 50m, 100m.

Specification of the inner hose:

Item code

Inner Diameter

Outer Diameter

Working Pressure

Burst Pressure

Length

Measurement

Weight

inch

mm

mm

bar

psi

bar

psi

m

cbm/roll

kg/m

PRA-06　

1/4"

6

13

20

300

60

900

100

0.0256

0.17

PRA-08　

5/16"

8

15

20

300

60

900

100

0.0271

0.22

PRA-10　

3/8"

10

17

20

300

60

900

100

0.036

0.26

PRA-13　

1/2"

13

22

20

300

60

900

100

0.0634

0.4

PRA-16　

5/8"

16

25

20

300

60

900

50

0.1095

0.45

PRA-19

3/4"

19

29

20

300

60

900

50

0.146

0.7

PRA-25　

1"

25

36

20

300

60

900

50

0.171

0.85

Note: The inner hose can also be Pure rubber tube without fiber braided reinforcement.

If the specifications you need are not in the list, please offer your specification parameters or operating

requirements. We’ll check and customize.

Outer Stainless Steel Braided Compressed Air Hose Pure Rubber Tube InsideOuter Stainless Steel Braided Compressed Air Hose Pure Rubber Tube Inside

Competitive Advantage:

PASSION® outer stainless steel or aluminium wire braided rubber air hose is made of

non-recycled rubber, exported to Brazil, South Africa, Negeria, etc.

Hangzhou Paishun can crimp the specified fittings and quick released coupling on the rubber air hose.

If you have some special request of size, Hangzhou Paishun can also customize for you.
