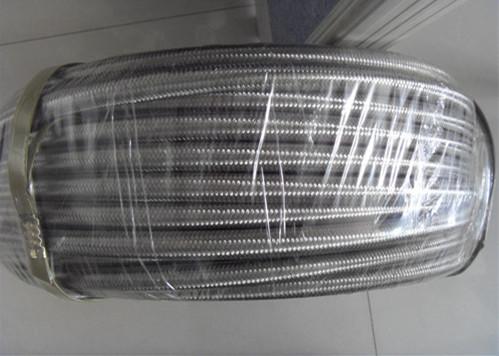

Stainless Steel Braided Hose, Working Temperature 260℃ For Brake Hose
Stainless Steel Braided Hose, Working Temperature 260℃ For Brake Hose
Stainless Steel Braided Hose, Working Temperature 260℃ For Brake Hose
Stainless Steel Braided Hose, Working Temperature 260℃ For Brake Hose
Stainless Steel Braided Hose, Working Temperature 260℃ For Brake Hose
Stainless Steel Braided Hose, Working Temperature 260℃ For Brake Hose
Stainless Steel Braided Hose, Working Temperature 260℃ For Brake Hose
Stainless Steel Braided Hose, Working Temperature 260℃ For Brake Hose
Stainless Steel Braided Hose, Working Temperature 260℃ For Brake Hose
Stainless Steel Braided Hose, Working Temperature 260℃ For Brake Hose
Stainless Steel Braided Hose, Working Temperature 260℃ For Brake Hose
Stainless Steel Braided Hose, Working Temperature 260℃ For Brake Hose
Specifications
Brand Name :
PASSION
Model Number :
imported PTFE Hose, SAE 100R14
Certification :
ISO 9001-2008, CE
Place of Origin :
Zhejiang China
MOQ :
200M
Price :
Negotiable
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
300000M/Month
Delivery Time :
within 25days after we have received the advanced payment.
Packaging Details :
In Rolls; well wrapped by poly stripes or opp films. We can also make package according to your requirements.
PTFE Hose Market :
North America, Europe, South America
Material :
PTFE 238A+
ID :
3/16" ~ 1"
Inner tube :
Extruded Smooth PTFE
Cover :
SS 304 single wire braid
Temperature :
-54℃ ~ +260℃
W.P :
179.5bar-48.8bar
B.P :
718bar-195bar
Application :
Hydraulic Oil, Brake Hose
Description

Stainless Steel imported PTFE Braided Hose, Working Temperature 260C

Description:

PASSION offers imported PTFE Material, mainly imported from Japan, USA. The working temperature can reach as high as 260℃, this type of staninless steel braided ptfe hoses are often used as brake hose, 1/8'' is the most common size.

This type of hose largely meet the needs of high-end market, and customers feedbacks are good.

We largely exported to Japan, USA, Brazil.

Stainless Steel imported PTFE Braided Hose, Working Temperature 260C

Construction: Tube: Imported PTFE Material.

Cover: SS304 braided.

Temperature: -50℃ to +260℃

Application: Mainly used for conveying various chemicals, ships, automobiles, Marine industry machinery hydraulic system etc

Standard length: 100m (Random Length).

Specifications

Material

Temperature chemical resistant PTFE material. +304 Stainless Steel Braided

Temperature

-50C-260C

I.D(inch)

1/8’’-1’’

I.D 1/8inch

Specially used as brake hose.

I.D*O.D(mm)

6.0*8.7-25.0*29.5

W.P

179.5BAR-48.8BAR

B.P

718BAR-195BAR

Length/roll(m)

>50

Application

Used on Mechanical hydraulic system in Shipping Industry, Auto Industry and Ocean Industry.

Type

Smooth Surface and Corrguated Surface

Type

Imported PTFE Material and Made in China PTFE Material.

Sizes

Item code

Inner Diameter

Outer Diameter

Working Pressure

Burst Pressure

Length

Weight

inch

mm

mm

bar

bar

m

kg/m

1/8"

3.5

6.2

314

1080

100

0.07

3/16"

5.0

7.7

256

752

100

0.09

　

1/4"

6.5

9.3

232

644

100

0.11

　

5/16"

8.0

10.8

180

504

100

0.15

　

3/8"

10.0

12.7

152

426

100

0.17

　

1/2"

13.0

16.3

90

270

100

0.31

5/8"

16.3

19.3

80

240

50

0.47

3/4"

19.0

22.3

70

196

50

0.57

7/8"

22.5

25.8

60

175

50

0.7

1"

25.4

29.8

50

150

50

0.8

*The Inner Diameter and Outer Diameter only refer to the PTFE Hose inside, when you measure please

don’t include the Stainless Steel.

*The Hose is tested when the Hose is under condition of rest.

*Temperature-Pressure:

20C---------P

100C-------0.43P

150C----------0.3P

200C------------0.22P

220C--------------0.2P

Stainless Steel Braided Hose, Working Temperature 260℃ For Brake Hose

Stainless Steel Braided Hose, Working Temperature 260℃ For Brake HoseStainless Steel Braided Hose, Working Temperature 260℃ For Brake Hose

For more detailed information, please contact us.
