Black Smooth Type 5 / 16'' Fuel Hose 20 Bar For Gas Station 50M / 100M Length
Black Smooth Type 5 / 16'' Fuel Hose 20 Bar For Gas Station 50M / 100M Length
Black Smooth Type 5 / 16'' Fuel Hose 20 Bar For Gas Station 50M / 100M Length
Black Smooth Type 5 / 16'' Fuel Hose 20 Bar For Gas Station 50M / 100M Length
Black Smooth Type 5 / 16'' Fuel Hose 20 Bar For Gas Station 50M / 100M Length
Black Smooth Type 5 / 16'' Fuel Hose 20 Bar For Gas Station 50M / 100M Length
Black Smooth Type 5 / 16'' Fuel Hose 20 Bar For Gas Station 50M / 100M Length
Black Smooth Type 5 / 16'' Fuel Hose 20 Bar For Gas Station 50M / 100M Length
Specifications
Brand Name :
PASSION
Model Number :
5/16''
Certification :
ISO 9001-2008, CE
Place of Origin :
Zhejiang China
MOQ :
2,000 m
Price :
Negotiable
Payment Terms :
T/T, LC, Paypal or Western Union
Supply Ability :
400,000 m per month
Delivery Time :
30 days after received the advance payment
Packaging Details :
Wrapped by transparent OPP film, pallet, color packing can be customized
Material :
Nitrile Rubber
Reinforcement Layer :
High tensile polyester fiber braided
Color :
Black, Blue, Red etc
ID size :
8mm
OD size :
15mm
Standard Length :
50m, 100m
Surface :
Smooth Finish
Standard :
CE, ISO
Working Pressure :
20bar (300psi)
Burst Pressure :
60 bar (300psi)
Packing :
Strong OPP film or OEM
Temperature Range :
-30° to +100°C
Trademark :
PASSION or OEM
Description

Black Smooth Type 5 / 16'' Fuel Hose 20 Bar For Gas Station 50M / 100M Length

Specifications:

Inner Diameter

Outer Diameter

Working Pressure

Burst Pressure

Length

Measurement

Weight

inch

mm

mm

bar

psi

bar

psi

m/roll

cbm/roll

kg/m

3/16"

5

11.5

20

300

60

900

100

0.028

0.15　

1/4"

6

13

20

300

60

900

100

0.031

0.17

5/16"

8

15

20

300

60

900

100

0.0353

0.216

3/8"

10

17

20

300

60

900

100

0.0442

0.24

1/2"

12.7

22

20

300

60

900

100

0.0756

0.428

5/8"

16

25

20

300

60

900

50

0.0329

0.40

3/4"

19

29

20

300

60

900

50

0.0572

0.60

1"

25

36

20

300

60

900

50

0.099

0.84

1-1/4"

32

43

10

150

30

450

50

0.170

1.20　

1-1/2"

38

50

10

150

30

450

50

0.190

1.39　

2"

51

65

10

150

30

450

50

0.410

1.80　

Quantity for 20GP: 80000m
Quantity for 40GP:100000m


Black Smooth Type 5 / 16'' Fuel Hose 20 Bar For Gas Station 50M / 100M Length
Black Smooth Type 5 / 16'' Fuel Hose 20 Bar For Gas Station 50M / 100M Length
Description:

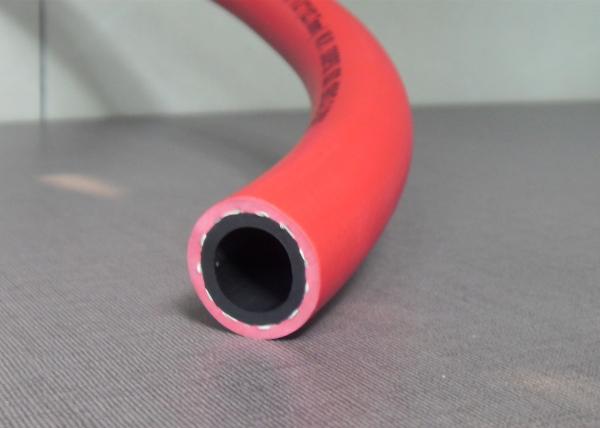

1, Construction: Tube: NBR Synthetic Rubber
Reinforcement: High tensile polyester fiber braided.
Cover: NBR Synthetic Rubber

2, Appearance: Smooth finish, Black, Red, Blue etc

3, Applicable temperature: -30℃ to +100℃

4, Bend radius: 10 times of proper diameter dimension

5, Package: Common packed by OPP transparent film.
The pallet and woven bag packing are available, the color sticker can be offerd,
but shall be charged additionally.

6, Trademark: PASSION, OEM is available

7, Property: Good oil resistance and excellent flexibility. Without craze crack or fracture after 180°bending over or doubling

8, Certificates: CE, SGS

9, Main market: Middle East, Europe and America

10: Joint Connection: Customized as your request


Applications:

It is Mainly used for circulating petrol and kerosene, or the oil products with contents of aromatic substances etc.

Competitive Advantage:

Hangzhou Paishun Rubber And Plastic Co., Ltd, a leading rubber hose manufacturer in the east of China. 8 years manufacturing experience, 50 sets of braiders and 3 production lines.
Paishun has a strict quality inspection team, every shipment would be tested before shipment.

Free sample can be offered, we are happy to customize as your request.

Black Smooth Type 5 / 16'' Fuel Hose 20 Bar For Gas Station 50M / 100M Length

Cooperative Brands:

WELDMAN, Max Weld, SAEFLEX. REDI-WELD

Paishun's Slogan:

PASSION FOR HOSE! PASSION FOR YOU!
