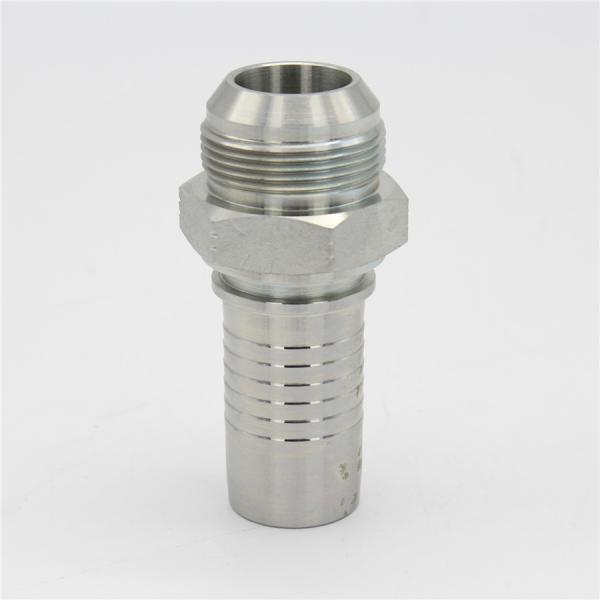

JIC Male 37 Degree Cone Hydraulic Hose Connectors Galvanized Zinc
JIC Male 37 Degree Cone Hydraulic Hose Connectors Galvanized Zinc
JIC Male 37 Degree Cone Hydraulic Hose Connectors Galvanized Zinc
JIC Male 37 Degree Cone Hydraulic Hose Connectors Galvanized Zinc
Specifications
Brand Name :
PAISHUN
Model Number :
16711
Certification :
ISO9001-2015
Place of Origin :
Zhejiang, China
MOQ :
200pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, L/C, Paypal
Supply Ability :
50000PCS/Month
Delivery Time :
10-30 days
Packaging Details :
cartons and wooden box
Material :
Carbon Steel
Thread :
JIC Male
Color :
Sliver
Packing :
Cartons and Wooden Box
Technic :
Hot Forge
Appearance :
Galvanized Zinc with Cr+3
Description

JIC Male 37 Degree Cone Hydraulic Hose Connectors in Carbon Steel

JIC Male 37 Degree Cone Hydraulic Hose Connectors

All of our hydraulic fittings are produced by advanced CNC machines.

Standard: Yonghua
Technology: Hot forging
Material: carbon steel 45# or stainless steel 304/316
Surface: zinc plated (trivalent chromium plating). The plating for hydraulic hose fitting is zinc with Cr +3.
It not only can reduce pollution obviously and save pollution treatment cost, but also can improve the quality of fitting.


Application:
Widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food and other industries.

Specification:

JIC MALE 74 DEGREE CONE ISO 8434-2--SAE J514

JIC Male 37 Degree Cone Hydraulic Hose Connectors Galvanized Zinc

​

Part No. Thread E Hose Bore Dimensions
DN DASH A C S1
16711-04-03 7/16"x20 5 03 26 14 12
16711-04-04 7/16"x20 6 04 26.5 14 12
16711-05-04 1/2"x20 6 04 26.5 14 14
16711-05-05 1/2"x20 8 05 26.5 14 14
16711-05-06 1/2"x20 10 06 26.5 14 17
16711-06-04 9/16"x18 6 04 26.5 14.1 17
16711-06-05 9/16"x18 8 05 26.5 14.1 17
16711-06-06 9/16"x18 10 06 26.5 14.1 17
16711-08-06 3/4"x16 10 06 31.5 16.7 22
16711-08-08 3/4"x16 12 08 32 16.7 22
16711-10-06 7/8"x14 10 06 33.5 19.3 24
16711-10-08 7/8"x14 12 08 34 19.3 24
16711-10-10 7/8"x14 16 10 35 19.3 24
16711-12-08 1.1/16"x12 12 08 38.5 21.9 30
16711-12-10 1.1/16"x12 16 10 39.5 21.9 30
16711-12-12 1.1/16"x12 20 12 40 21.9 30
16711-12-16 1.1/16"x12 25 16 42 21.9 30
16711-14-10 1.3/16"x12 16 10 41.5 22.6 32
16711-14-12 1.3/16"x12 20 12 40.5 22.6 32
16711-16-12 1.5/16"x12 20 12 43 23.1 36
16711-16-16 1.5/16"x12 25 16 43.5 23.1 36
16711-20-16 1.5/8"x12 25 16 47 24.3 46
16711-20-20 1.5/8"x12 32 20 47.5 24.3 46
16711-24-20 1.7/8"x12 32 20 53 27.5 50
16711-24-24 1.7/8"x12 40 24 53 27.5 50
16711-32-32 2.1/2"x12 50 32 62 33.9 65

​ Note: 1 for use with braided hoses, if use with spiral hoses, hose fitting series number is 16712-**-**.

JIC Male 37 Degree Cone Hydraulic Hose Connectors Galvanized Zinc

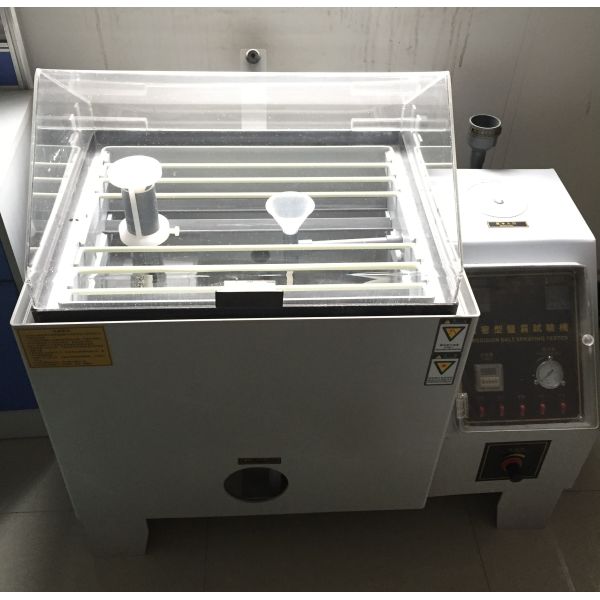

Salt Spray Test

All our Fittings have the surface treated by galvanic zinc coating with a thick chromate passivation ( Chromium III) and sealing
(Fe/Zn12/AT2 according to EN ISO 2081). 96 hours to 164 hours salt spray test.

JIC Male 37 Degree Cone Hydraulic Hose Connectors Galvanized Zinc

Packing Size and Style

Usually 42 corragetd cartons are packed in a wooden case.
Surely we can be customized the measure according to your request.
JIC Male 37 Degree Cone Hydraulic Hose Connectors Galvanized Zinc
